INTERFACE MAP
Pump interface reference
CrossFlow interface map
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
The IFU part number is: P17330 The CrossFlow Pump catalog number is: 0450-000-000

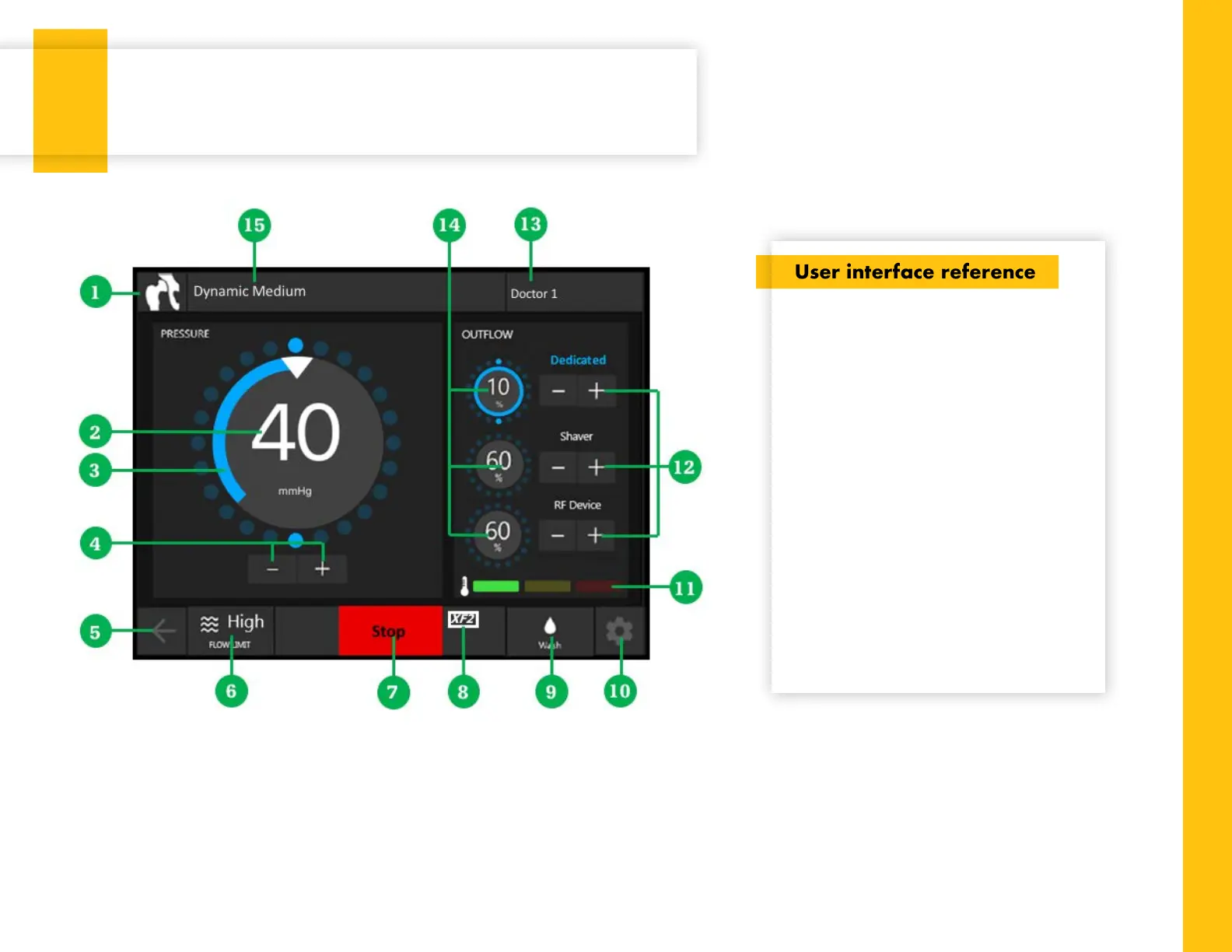

User interface reference
1. Joint settings
2. Set pressure (mmHg)
3. Actual pressure
4. Adjust set pressure up/down
5. End case
6. Flow limit pop-up menu
7. Start/stop
8. Resection console connection icon
9. Wash (use for better visibility)
10. Settings menu
11. Temperature indicator (during RF use)
12. Adjust suction up/down
13. Surgeon prole
14. Suction indicators
15. Scope/cannula combination in use
NOTE: Identies which scope/cannula
combo is selected for the procedure
