Installation
A
B

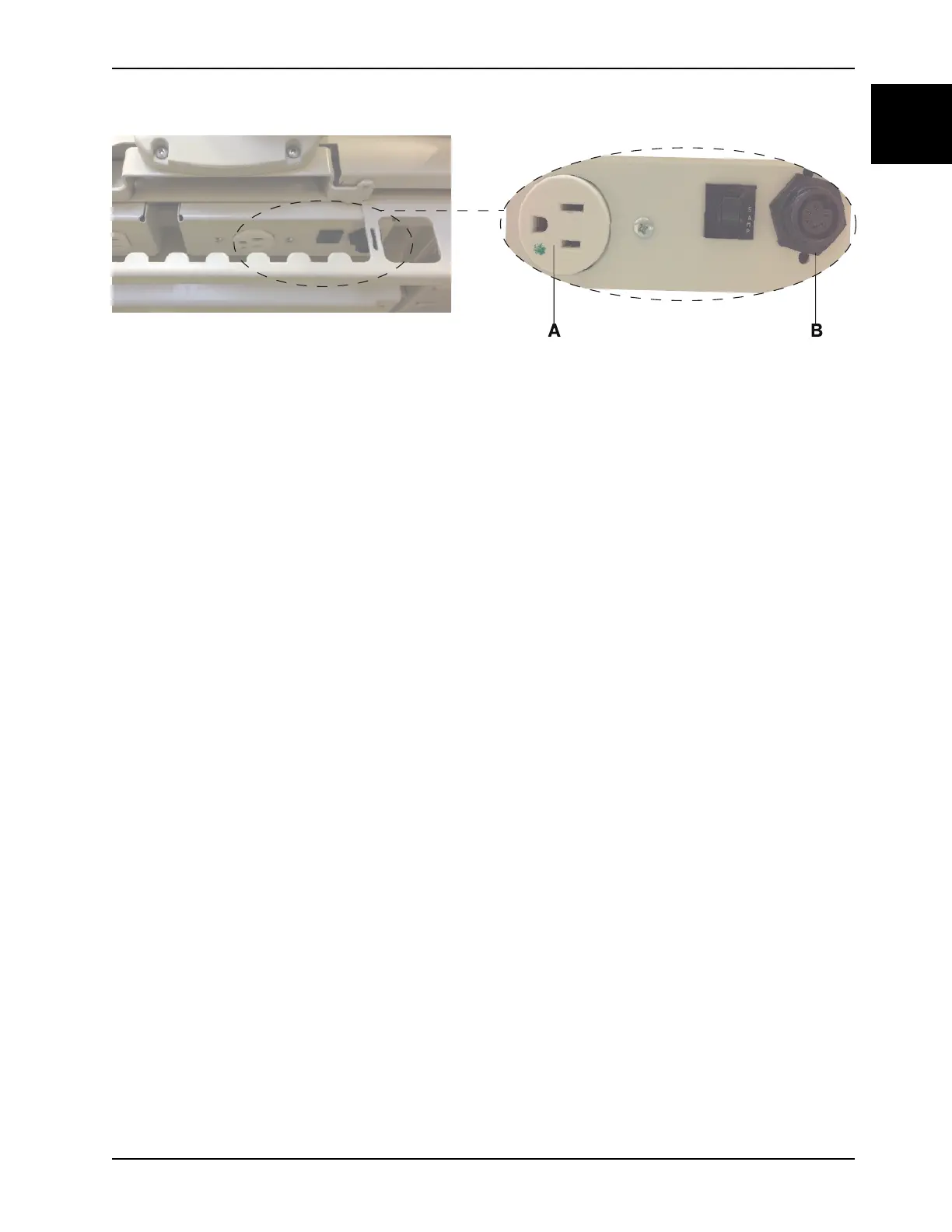

Figure 1-1: InTouch foot end auxiliary power outlet and mattress connector
11. Make sure that the power cord is routed to the side of the bed and not out the foot end of the InTouch.
12. Plug in the InTouch power cord into a properly grounded hospital grade three-prong power outlet.
13. Calibrate the bed following the procedures in the InTouch maintenance manual.
Notes
• Isolibrium is only operational when the power cord for the InTouch bed is in a 120v wall outlet.
• When the support surface is plugged into the InTouch bed, the InTouch footboard will respond. See the InTouch
manual for more information.
