Product Overview
Charger
The System 9 Sterile Battery Charger (Figure 1) has 6 bays to charge System 9 Battery Packs (large or small) through inductive (wireless) charging. The battery packs
can be charged before sterilization while (1) unwrapped or after sterilization while (2) wrapped in sterilization wrap. The charger has an illuminated display panel that
shows charger, bay, and battery status, including cycle counts.
G FIJ H
E
A
B
C
D

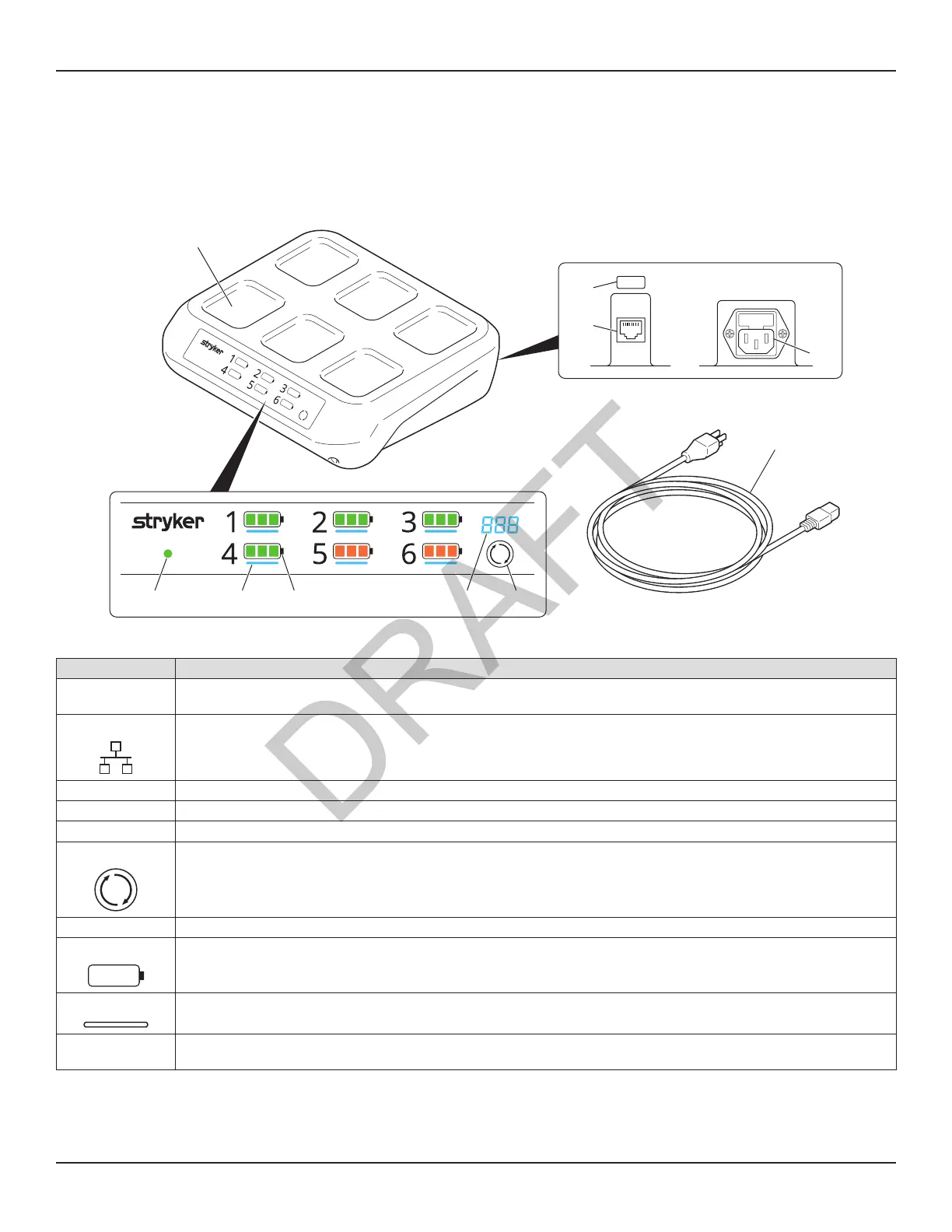

Figure 1 – Charger features
Feature Description
A
Charger Bay (6) – Charge receptacles designed to accept only System 9 Sterile Batteries; see For Use With. Each charger bay has a
corresponding battery status indicator (H) on the display panel, numbered 1 through 6.
B
Ethernet Port – Used to export device usage data from the charger to Stryker via Stryker’s Cloud; see Figure 2.
C MAC ID Label – Media Access Control Identifier (MAC Address).
D Power Cord Receptacle – Allows connection of the power cord.
E Power Cord – Connects the charger to a facility power receptacle.
F
Cycle Button – Press the cycle button to:
▪ Choose the power mode during initial setup; see To Connect the Charger.
▪ Wake up the charger from standby (asleep) mode; see Power Modes.
▪ Toggle through the charger bays to see the cycle count for each battery; see To Check Battery Cycle Count.
G Cycle Count – The number of charge cycles on the selected battery.
H
Battery Status Indicator – Shows the status of the battery; see State of Charge.
I
Bay Status Indicator – Bar that illuminates below the selected battery status indicator(s).
J
Power Mode Indicator – Illuminates when the charger is connected to a facility power receptacle. The color indicates the charger power
mode; see Power Modes.
