- 9 –

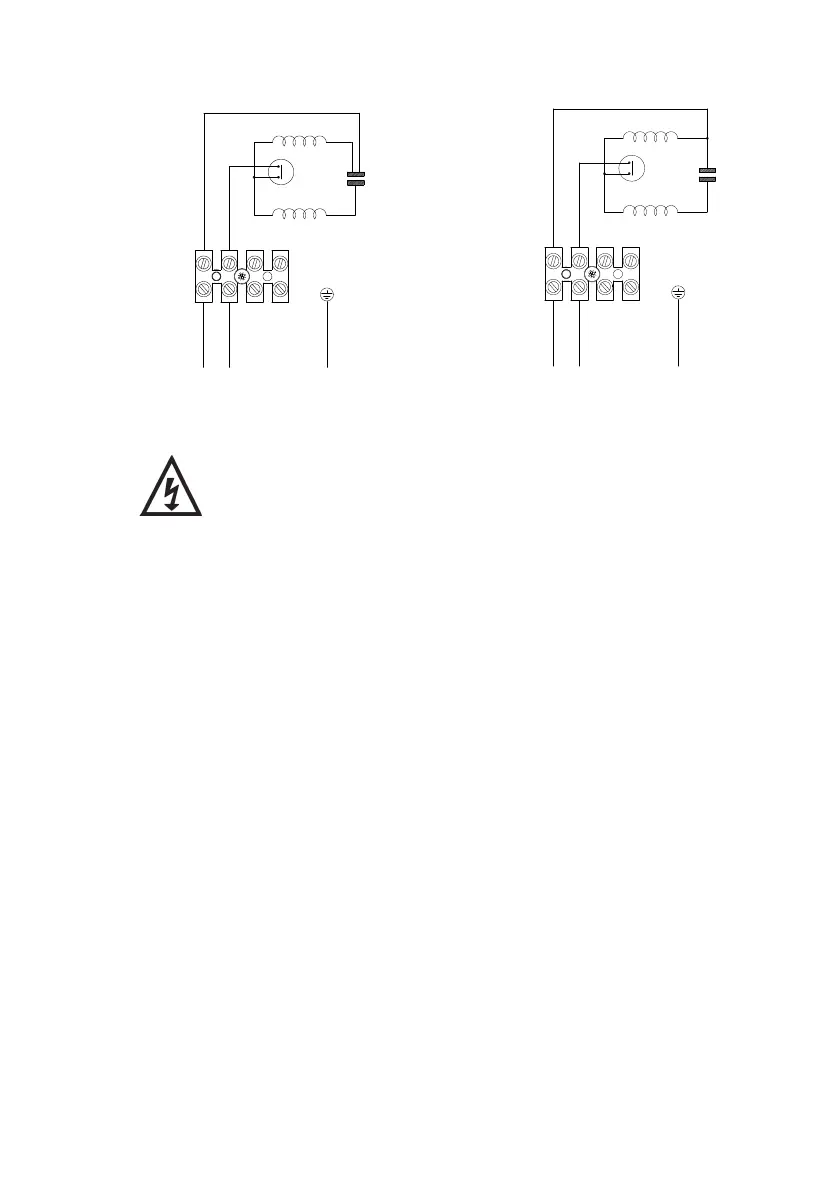

3.18 Wiring diagrams:
3.19 Fuse: All models should use 5 Amp fuse.
3.20 Supply cord replacement:
The internal wiring within the terminal box is routed and secured
to ensure compliance with the electrical standard EN 60335–1. It
is essential that prior to any disturbance of this internal wiring, all
cable routing and securing details are carefully noted to ensure
re-assembly to the same factory pattern is always maintained.
3.21 If the supply cord is to be changed or damaged, it must be replaced by a
special cord available from Stuart Turner or one of its approved repairers.
MAIN WINDING
THERMOTRIP
CAPACITOR
START WINDING
BLUE (LINK WIRE)
BROWN
BLACK
BLUE
BROWN
BLUE GREEN YELLOW
230 VAC/1PH/50Hz SUPPLY
N L E
PH 35 variants
Fig. 4
MAIN WINDING
THERMOTRIP
CAPACITOR
START WINDING
BLUE
BROWN
BLACK
BLUE
BROWN
BLUE GREEN YELLOW
230 VAC/1PH/50Hz SUPPLY
N L E
PH 45 variants
Fig. 5
