Studer D21m Product Information

D21m System
Applications 3-3Date printed: 11.07.07
The protocol switch on the front panel of the MADI I/O card may be set to
“64 channel” allowing maximum usage of the available channels. This switch
may only have to be set to “56 channel” protocol for operation with third-
party MADI devices (in case no remote I/O box is connected to the MADI
I/O card).
If 64 channels of MADI transmission are required when working at 96 kHz,
the redundant MADI line can be used as a “channel extension” for transmit-
ting the MADI channels 33-64 (29-56). This must be set accordingly with a
DIP switch on the MADI I/O card inserted in the hub frame.

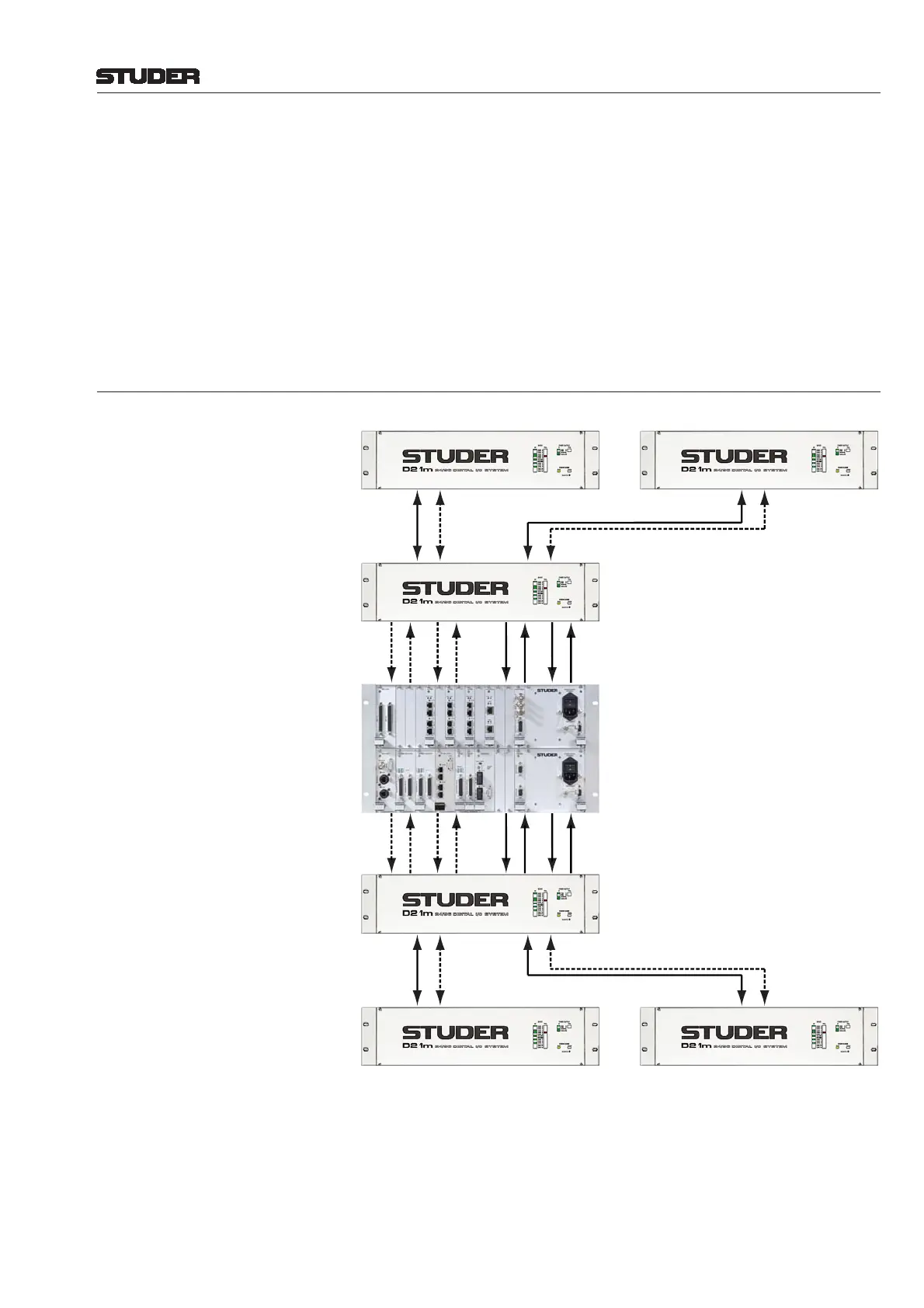

3.4 Multiple Hubs, Multiple I/O Boxes, Long Distance
Notes: Both the remote I/O box and the local hub frames are standard D21m frames,
providing the possibility to insert any I/O card available for the D21m I/O
system. The hub frame may therefore also be used for any audio I/O located
close to the DSP core.
Up to 6 remote I/O boxes can be connected per hub frame, except in the fi rst
hub frame, where one slot is occupied with one ADAT card (or AES/EBU
Hub 1
(and I/O)
Remote
I/O Boxes
96 Ch In
96 Ch Out
96 Ch In
96 Ch Out
96 Ch In
96 Ch Out
RS422 from Desk for Surveyor
Information and Mic Control
I/O Frames with Different
Types of I/O Cards
I/O Frames with Different
Types of I/O Cards
. . . .
Remote I/O Box 1 ... ... Remote I/O Box 5
0...64 Ch MADI
0...64 Ch MADI
0...64 Ch MADI
96 Ch In
96 Ch Out
4...6 AES/EBU Outputs
to Monitoring Frame
Studer Proprietary HD Link
(max. Distance 10 m)
Studer Proprietary HD Link
(max. Distance 10 m)
Hub 2
(and I/O)
Remote
I/O Boxes
96 Ch In
96 Ch Out
96 Ch In
96 Ch Out
96 Ch In
96 Ch Out
RS422 from Desk for Surveyor
Information and Mic Control
. . . .
Remote I/O Box 6 ... ... Remote I/O Box 11
0...64 Ch MADI
96 Ch In
96 Ch Out
SCore &
I/O Frame
