6.3 Digital I/O Cards
6.3.1 AES/EBU I/O Cards ( and ) 1.949.422, 1.949.423, 1.949.424

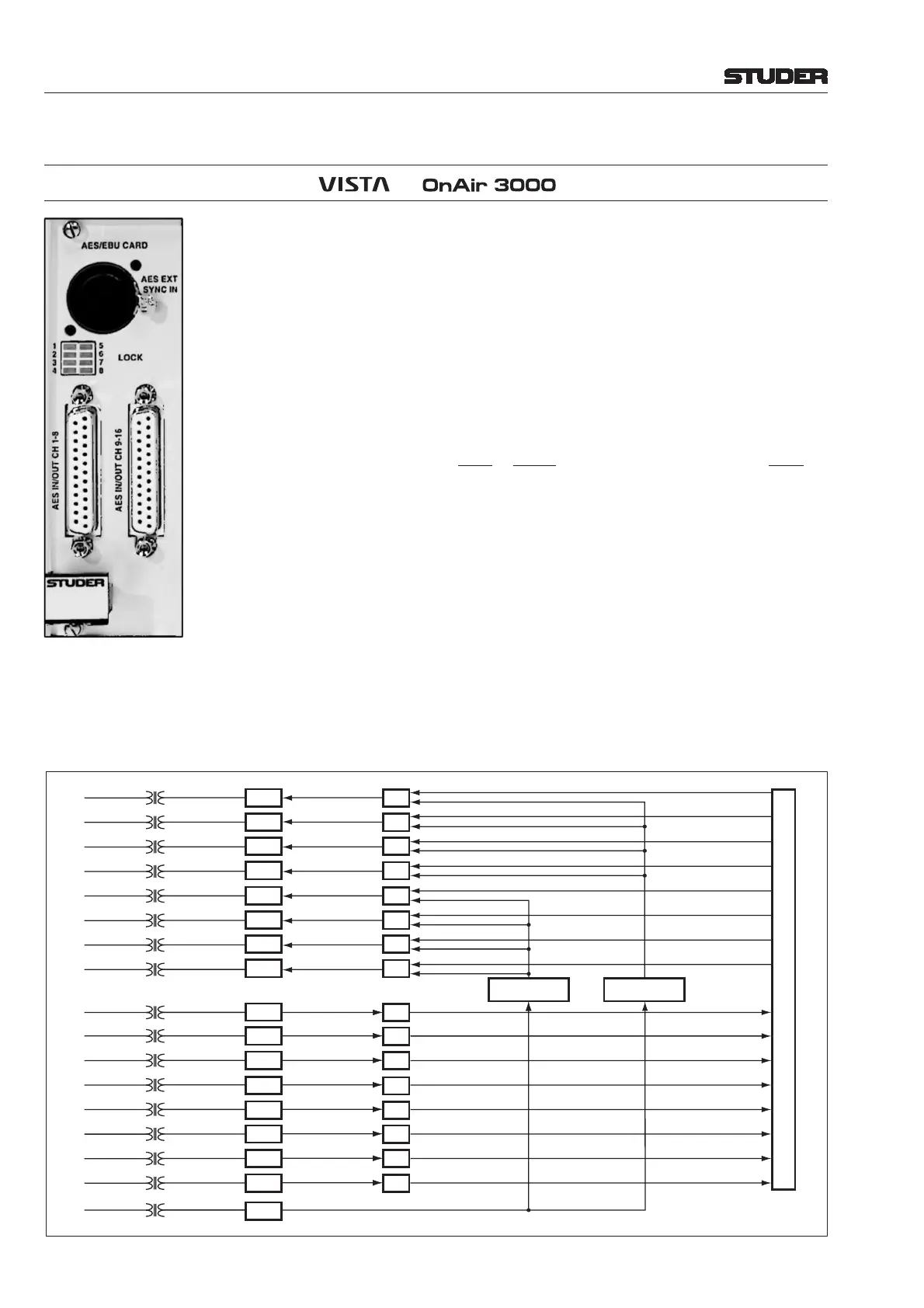

AES/EBU input/output card with 16 Ch I/O. With input and output SFCs
(1.949.424), with input SFCs only (1.949.423), or without SFCs (1.949.422
– not available for OnAir 3000). Selectable output sampling frequencies:
96 kHz, 48 kHz, 44.1 kHz, or external reference (22...108 kHz). Input SFCs
can be bypassed individually. Output SFCs can be bypassed in groups of four.
Output dither is selectable for every AES/EBU output from 24 bit, 20 bit,
18 bit or 16 bit. Settings are made with jumpers. Inputs and outputs on stan-
dard 25-pin D-type connectors (female).
SFC Delay: Enabled input and output SFCs each cause a delay (D) that depends on the
SFC’s input and output sampling frequency (f
S_IN
and f
S_OUT
). Input and output
delays can be calculated using the formulas below.
[2] f
S_OUT
> f
S_IN
: D =
48
f
S_IN
[s]
[1] f
S_IN
> f
S_OUT
: D =
16
f
S_IN
+ [s]
32
f
S_OUT
Examples:
• For a 96 kHz input signal and a 48 kHz system clock (i.e., the “output signal”
of the input SFC), the input delay is 40 output samples or 0.833 ms (formula
“1”).
• For a 48 kHz system clock (i.e., the “input signal” of the output SFC) and a
96 kHz output signal, the output delay is 96 output samples or 1 ms (formula
“2”).
Note: If the core is operating with a 44.1 or 88.2 kHz system clock, the output sam-
pling frequency will be 44.1 or 88.2 kHz, regardless of the jumper selection
– unless the external sync input is used and Ext. is selected; then, the output
sampling frequency corresponds to the one of the external sync signal.
