D21m System
6-34 D21m Modules Date printed: 25.09.07

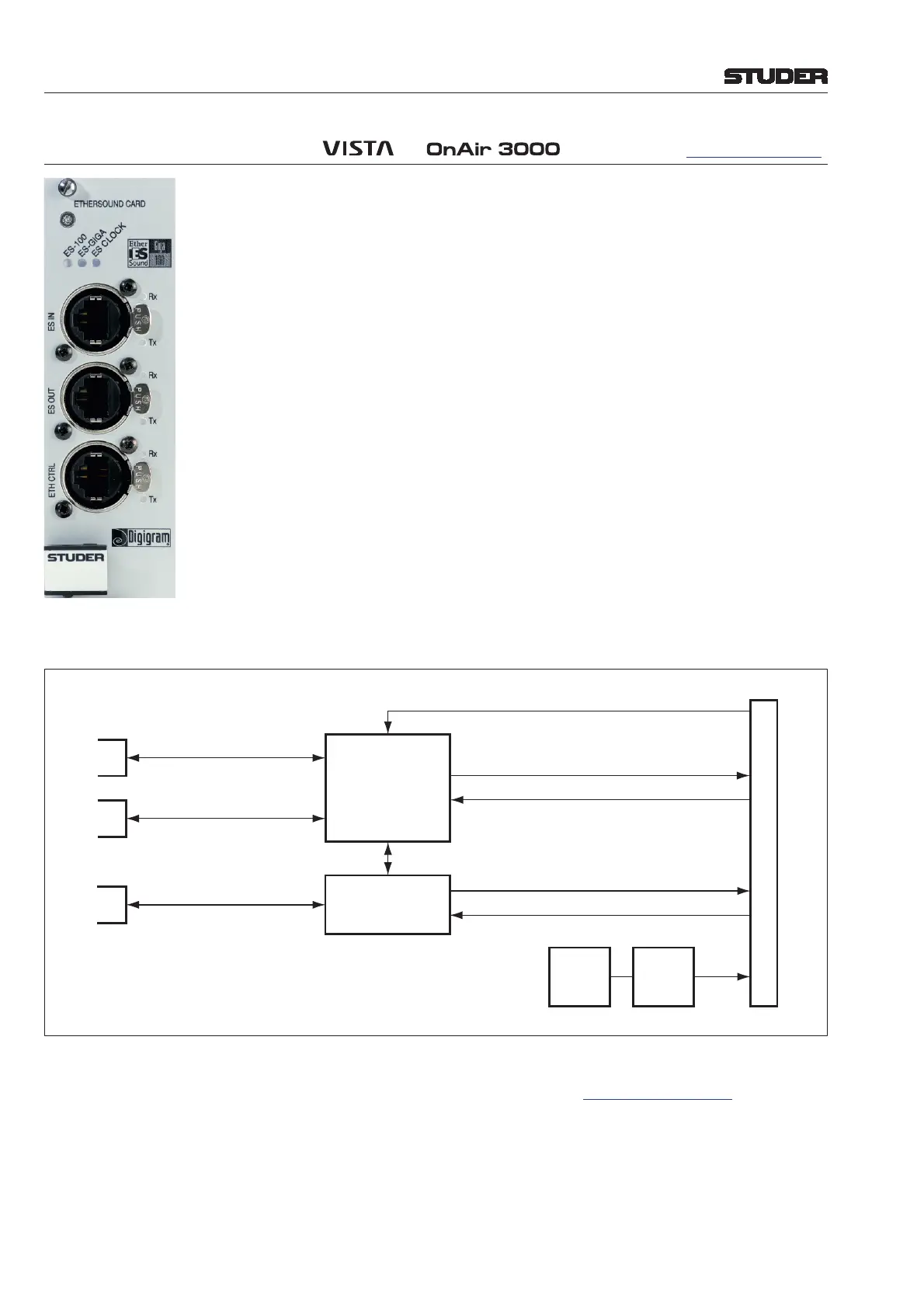

6.3.10 EtherSound
®
Card ( and ) (details: www.digigram.com)
The EtherSound
®
card allows connecting the D21m I/O System to an Ether-
Sound
®
network. Towards the D21m system, it acts similar to a MADI card
combined with a GPIO card. The number of audio channels used can be
confi gured with DIP switches. The included, virtual GPIO card allows, e.g.,
routing a GPO of the mixing console to the GPO of a distant EtherSound
®
device on the network. Confi guration of the EtherSound
®
network is per-
formed either through the ETH CTRL connector or from a remote location on
the EtherSound
®
network, e.g. using the EtherSound
®
EScontrol software.
The EtherSound
®
card works with EtherSound
®
ES-Giga System Transport
networks or with EtherSound
®
ES-100 Audio Transport networks. The operat-
ing mode of the card (ES-100 or ES-Giga) is selected by setting jumper J22
(see opposite page). The selected mode will be displayed on the front panel
LEDs.
The audio clock of the EtherSound
®
network must be synchronous with the
D21m I/O system’s audio clock. This is ensured either by using the Ether-
Sound
®
card as clock source of the EtherSound
®
network, or by feeding the
device that is actually the EtherSound
®
network clock source with a word
clock synchronous with the D21m I/O system’s audio clock.
This card works at sampling frequencies of 44.1 or 48 kHz (88.2/96 kHz
ready).
Current consumption (5 V) 750 mA max.
Operating temperature 0...40° C
ES*
In
Ethersound
Audio Framer/Deframer
Ethersound Controller
Backplane Connector
Ch
Number
Selector
DIP
Switch
ES*
Out
ES*
Ctrl
up to 64 Ch**
up to 64 Ch**
Sync
8 × GPI**
8 × GPO**
* For more information on network topology and possible connections, please
refer to the Ethersound documentation (www.ethersound.com).
** GPIs are GPOs on the Ethersound network, and vice versa. Audio outputs are
audio inputs on the Ethersound network, and vice versa.
