Studer D21m Product Information

D21m System
D21m Modules 6-45Date printed: 25.09.07
Cable length 1.949.411, multi-mode fi bre <2 km
1.949.413, single-mode fi bre <15 km (<40 km on request)
1.949.414, CAT5e or better, fl exible braid <75 m
CAT7, solid core <120 m
Input frequencies 44.1/48/88.2/96 kHz ±100 ppm
Current consumption (3.3 V/5 V) 0.9 A/0.25 A
Operating temperature
0...40° C

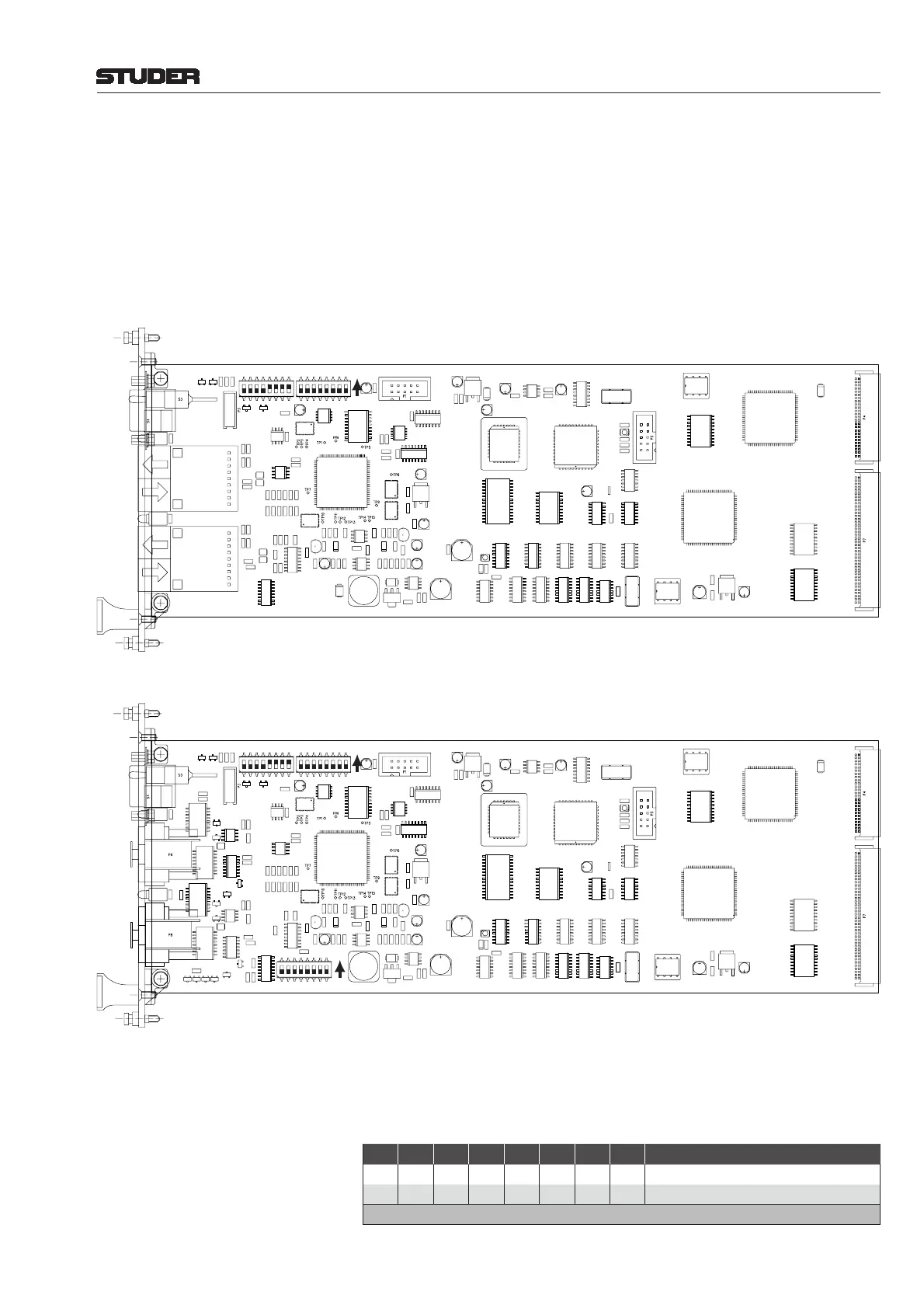

1.949.411, 1.949.413:
ON
8765432187654321
S1 S2
1.949.414:
ON
8765432187654321
S5
S1 S2
ON
87654321
LEDs: On if a valid MADI signal is present at the input.
Switches: S1 DIP switch for pinout selection of the front-panel RS422 connector:
12345678
ON ON ON ON OFF OFF OFF OFF
Device pinout
OFF OFF OFF OFF ON ON ON ON
Controller pinout (factory default)
NO OTHER SETTINGS ALLOWED!
