connected to the mains earth. If the earthing connection can be interrupted,
for example, by unplugging the mains plug of an external power supply unit,
an additional, permanent earthing connection must be installed using the
provided earth terminal .

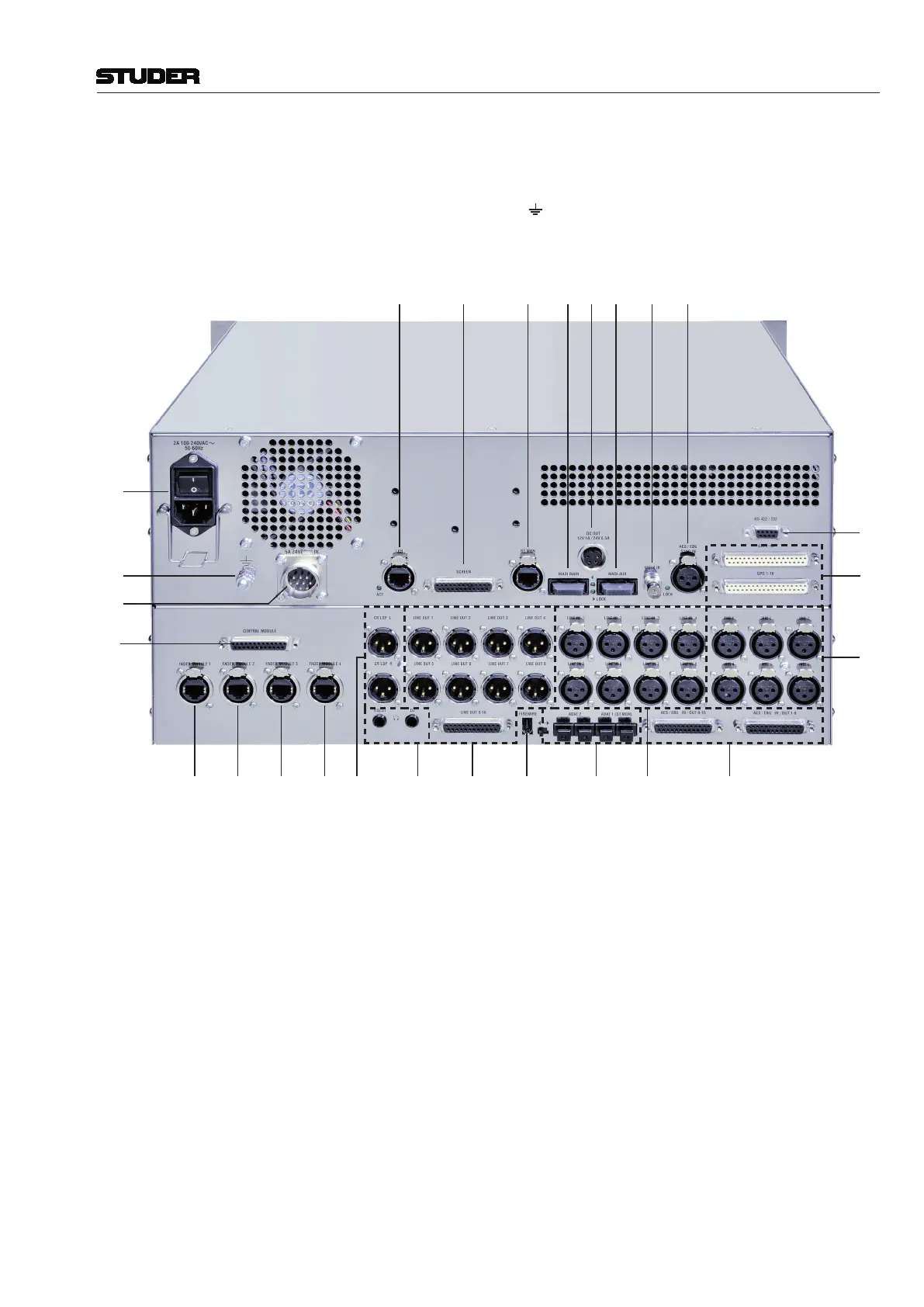

Analog
Line In
Screen
Studio
Mon/TB
Box
Earth
Terminal
24 V
DC
Inlet
Mains
Inlet/Switch
AES/EBU I/OCR Monitor
Speakers Out
Central
Module
Analog
Line Out
Microphone
In
LAN
RS422
RS232
MADI
Main
DC
Out
MADI
Aux
WCLK
In
AES/EBU
Sync In
GP In
GP Out
Phones Firewire Optical
ADAT I/O
Fader
Module 1
Fader
Module 2
Fader
Module 3
Fader
Module 4
