OnAir 2500 Digital Mixing Console

Quick Reference Guide 15

Document generated: 09.09.14

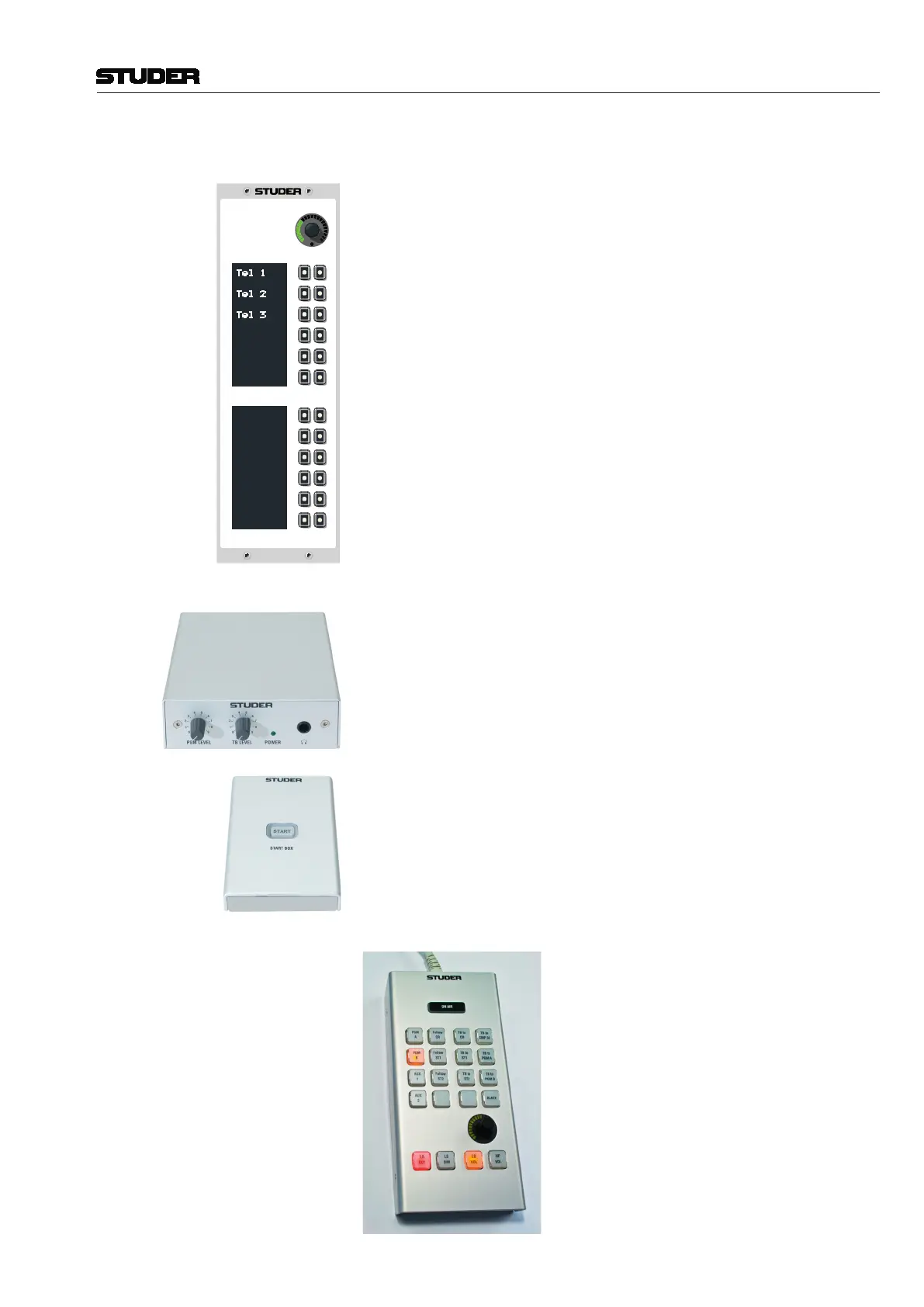

Extended Line (XL) Module TheXLmoduleallowsdirectcommunicationtouptotwelveoutsidesources.

Tel 1

Tel 2

Tel 3

EXTENDED LINE PANEL

PFL TALK

It features 12 eight-digit alphanumeric displays for source label indication,

12keyseachforPFLofandTBtotheseindividualdestinations,andarotary

encoder for individual and sum volume control. In a typical application during

e.g. a sports event or elections, communication with many outside locations

needstobecontrolled.TheXLmodulegivesafastandergonomicwayto

fulllingthistask.

Headphones Amplier Box Thiscompactheadphonesampcanbettedontopoforunderatablewith

respective mounting brackets, next to a guest. It may be connected directly to

alineoutputoftheconsoleandfeaturesalocalamplierwithvolumecontrol.

In addition a talkback signal with separate volume control can be enabled

and brought to the guest headphones, heard in split mode and controlled via

a GPO signal.

GPIO Boxes Two types of general-purpose desktop boxes in the OnAir 2500 design, both

withanilluminatedkey, and one ofthem withthree additionalLEDs are

available for many different applications, e.g. cough key, control of external

devices,etc.ThekeysmaydirectlybeconnectedtoGPIs,theLEDstoGPOs,

andconguredfortherespectivetaskinthecongurationmenu.

Compact Monitoring/TB Module: The compact monitoring/TB box offers an array

of configurable keys for monitoring source

selection and talkback destinations, red light

indication, and studio loudspeaker/headphone

control. Talkback between any locations is pos-

sible, as well as to external lines, the master,

AUX,andN–Xoutputs,butneedstobecong-

ured as desired.
