Studer OnAir 2500 Quick Reference

OnAir 2500 Digital Mixing Console
6 Quick Reference Guide
Document generated: 09.09.14

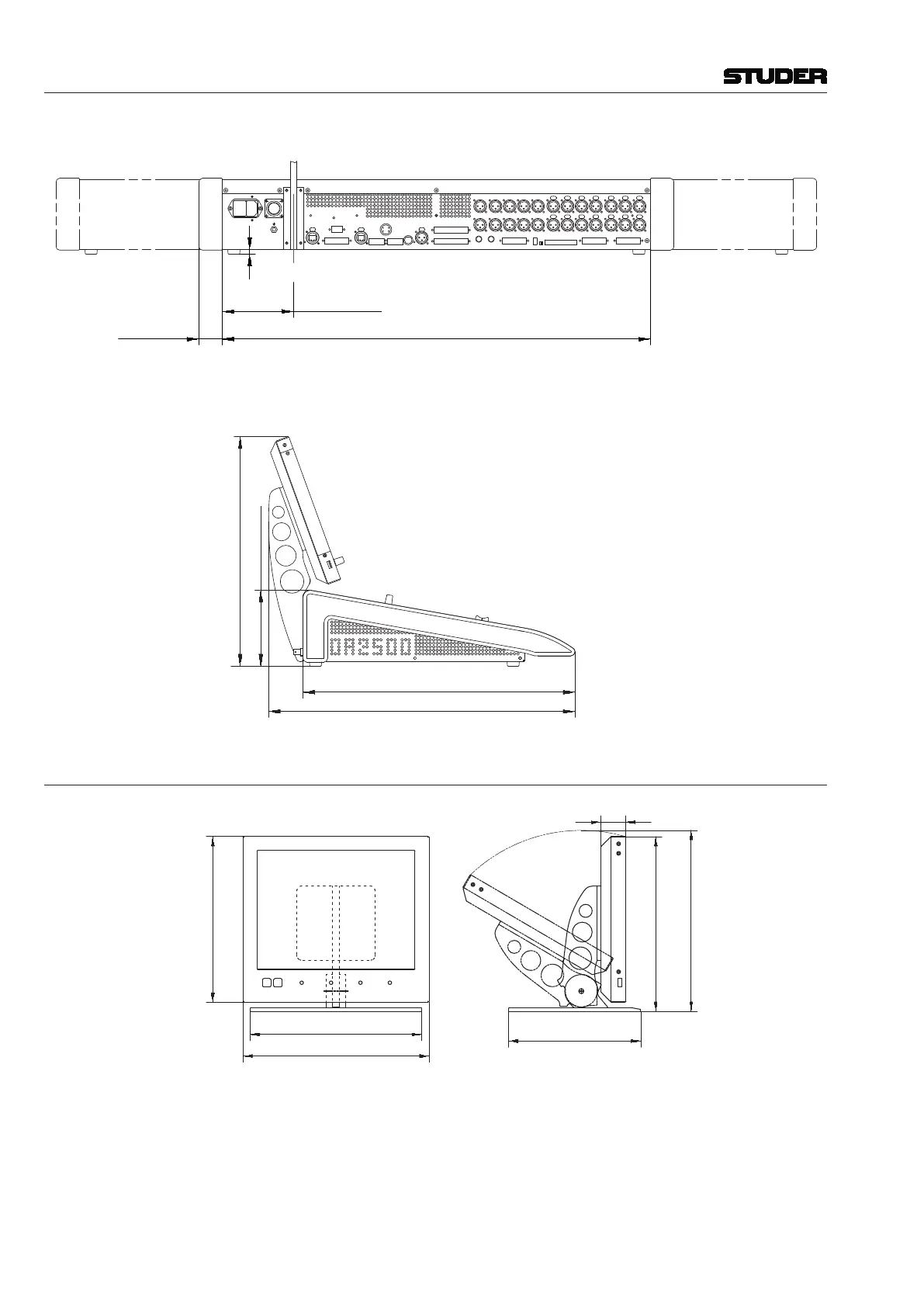

524 mm / 20.7”
130 mm / 5.1”
392 mm / 15.5”
1300 mm / 51.2” (24 Fader)
1056 mm / 41.6” (18 Fader)
122 mm / 4.8”
8 mm / 0.3”
40 mm / 1.6” 732 mm / 28.8” (12 Fader)
812 mm / 32” (12 Fader)
465 mm / 18.3”
Modulo Version
cut-out 301 mm / 11.85”
244 mm / 9.6”
Fader ModuleCentral Module
Core Frame
Front View
Rear View
cut-out 245 mm / 9.65”
300 mm / 11.8”
cut-out 301 mm / 11.85”
244 mm / 9.6”
300 mm / 11.8”
60 mm
2.4”
cut-out 245 mm / 9.65”
64 mm
2.6”
260 mm / 10.2”
269 mm / 10.6”
207 mm / 8.2”
39 mm / 1.6”
275 mm / 10.8”
284 mm / 11.2”
292 mm / 11.5”
Screen Module
483 mm / 19”
380 mm / 15”
222 mm / 8.8” (5U)
