Stulz CyberAir Mini CW - Page 23

23
CCD 90 CW
© STULZ GmbH – all rights reserved EN/06.2021/G23
minispace cw original instructions

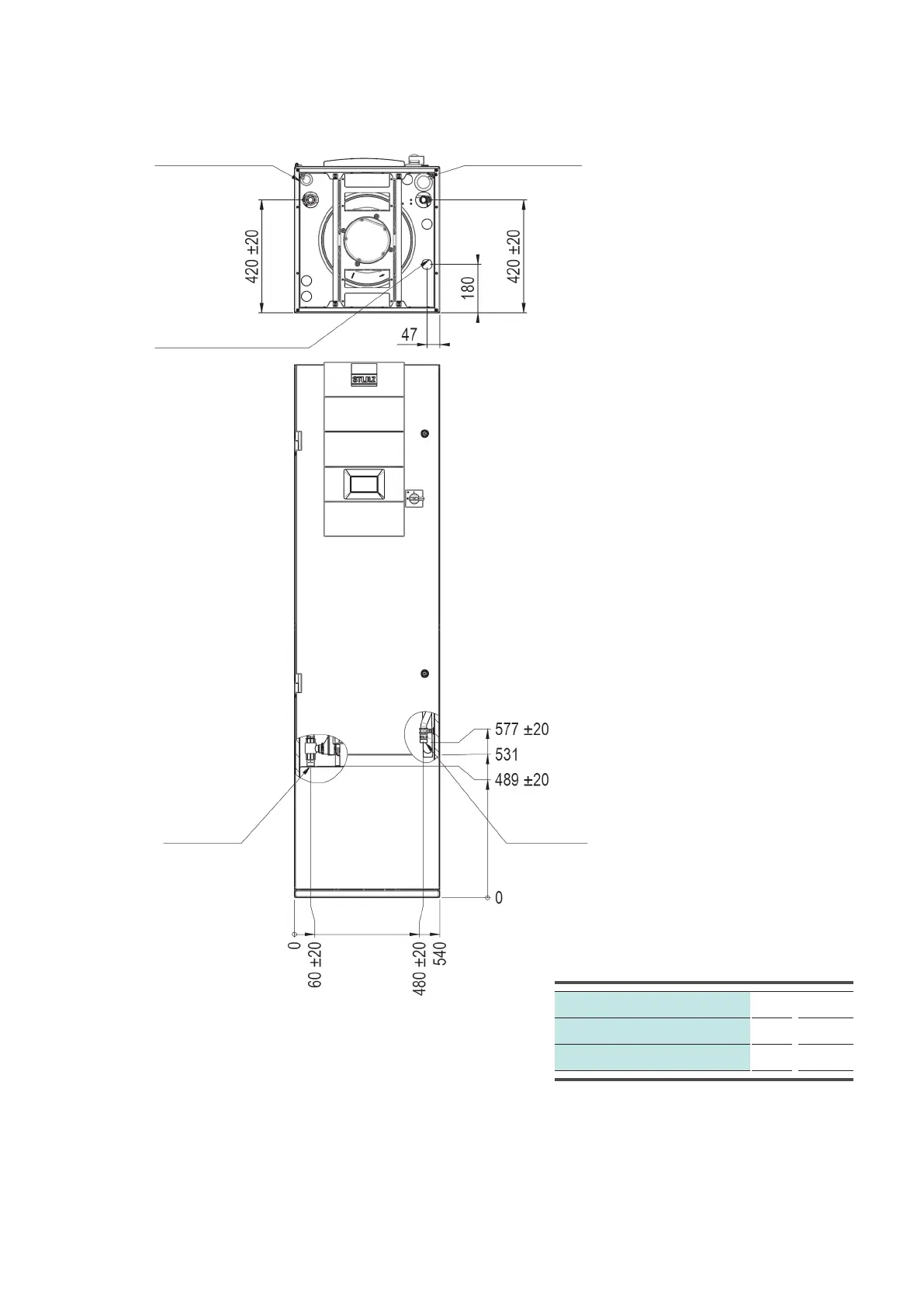

To connect the piping notice the labels on the pipe ends.

All dimensions in mm.
Water connections
Chilled water line
DN 20
Male thread
inch 
Condensate drain Ø inside
mm 22
Control lines
Power supply
Condensate drain
Water inlet
Water outlet
