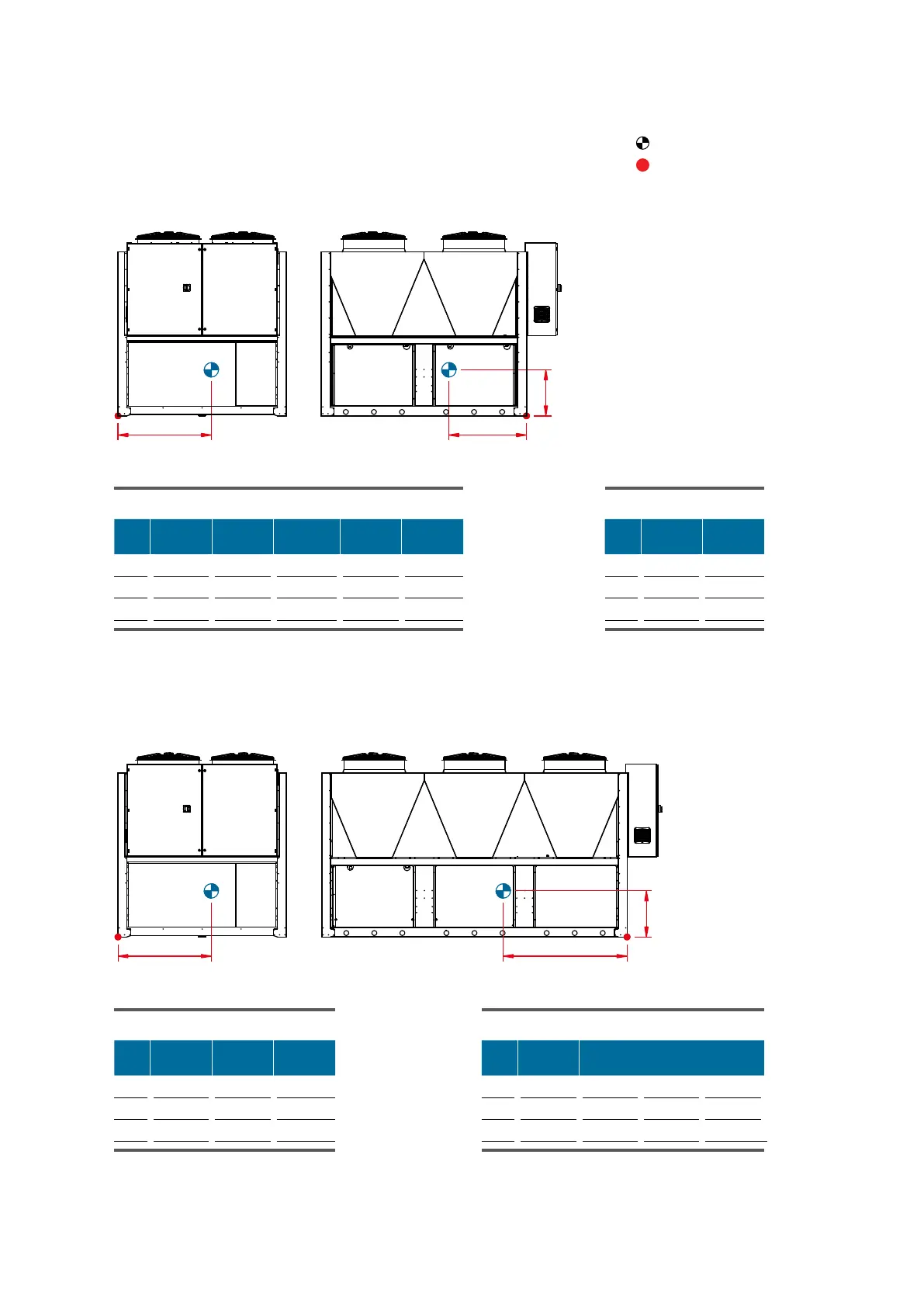

3.3.2 Centre of gravity
Centre of gravity
Reference point
Base without pump, without tank
WPA 060 WPA 070 WPA 080 WPA 090 WPA 100
x 1340 mm 1580 mm 1340 mm 1340 mm 1340 mm
y 1040 mm 1040 mm 1050 mm 1050 mm 1050 mm
z 980 mm 980 mm 990 mm 990 mm 980 mm
F.C. +1 pump + tank
WPA 060 WPA 070
x 1170 mm 1200 mm
y 1150 mm 1220 mm
z 960 mm 930 mm
Base without pump, without tank
WPA 110 WPA 120 WPA 140
x 1230 mm 1240 mm 1260 mm
y 1880 mm 1860 mm 1860 mm
z 1130 mm 1140 mm 1020 mm
Free Cooling with1 pump, with tank
WPA 080 WPA 090 WPA 100 WPA 110
x 1200 mm 1220 mm 1240 mm 1210 mm
y 1930 mm 1980 mm 2000 mm 1910 mm
z 1140 mm 1040 mm 1020 mm 980 mm
Two V-modules
Three V-modules
