Stulz Split-Air CST 40 - Operating Diagrams - C1010

E/0204/39/35
27,5°C
2,5°C
12,5°C
2,5°C
15°C
25°C
29,5°C
27°C
2,5°C
4,5°C
10°C
2,5°C
12,5°C
25°C

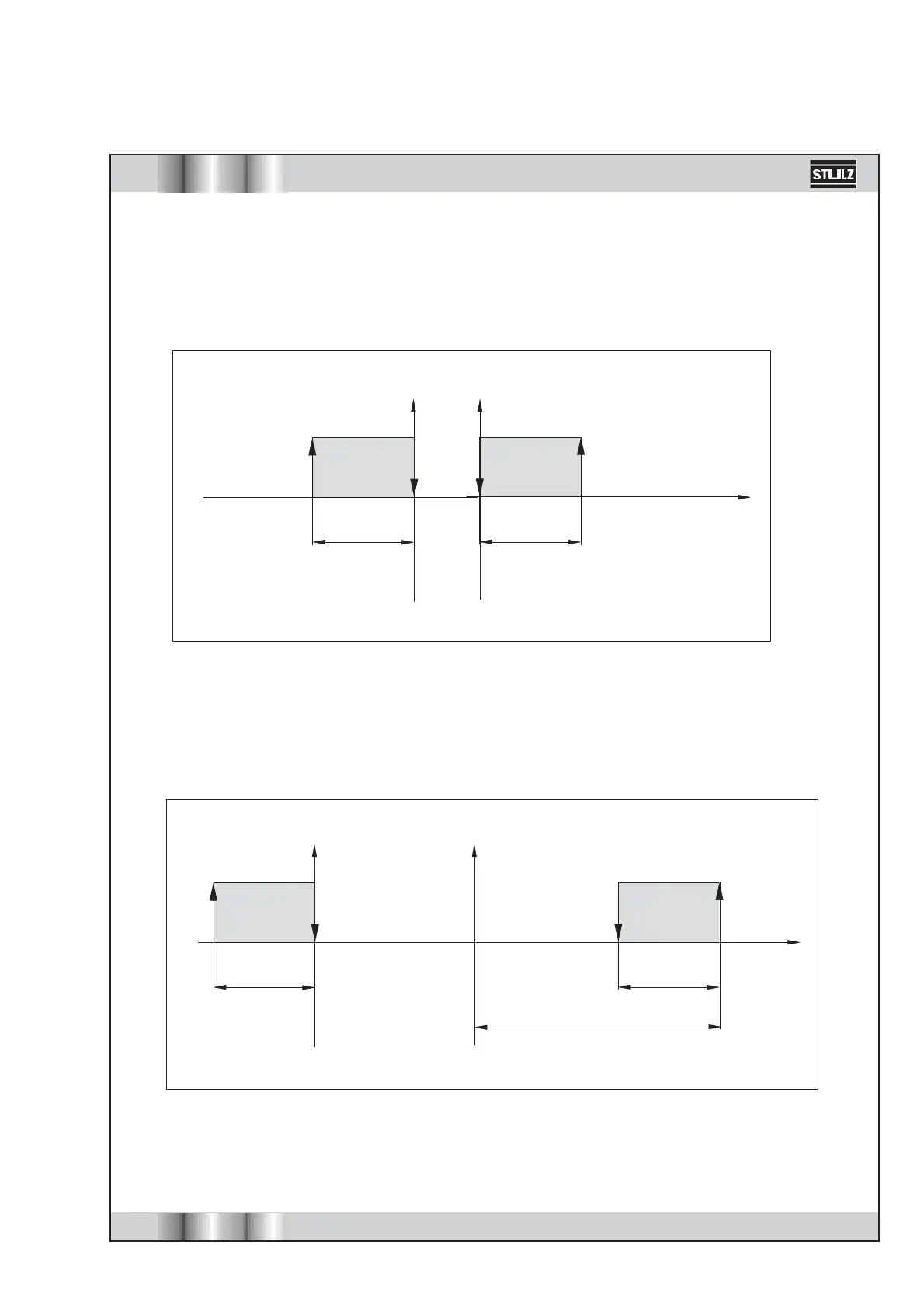

Operating Diagrams - C1010
no free cooling conditions
Unit 2*
heating element compressor
compressorheating element
Unit 1
SET2 SET1
SET2 SET1
Conditioner 1 operates with setting at 25°C, between 27.5°C and 25°C.
Heating elements operate with setting at 15°C, between 12.5°C and 15°C.
Conditioner 2 (optional) operates with setting at 25°C, between 29.5°C and 27°C.
Heating elements 2 (optional) operate with setting at 12.5°C, between 10°C and 12.5°C.
* only with LAN connection of both units
