Stulz Split-Air CST 40 - Page 36

E/0204/39/36
32°C
29,5°C
2,5°C
7°C
12,5°C
2,5°C
15°C
25°C
34°C
31.5°C
2,5°C
9°C
10°C
2,5°C
12,5°C
25°C
compressor

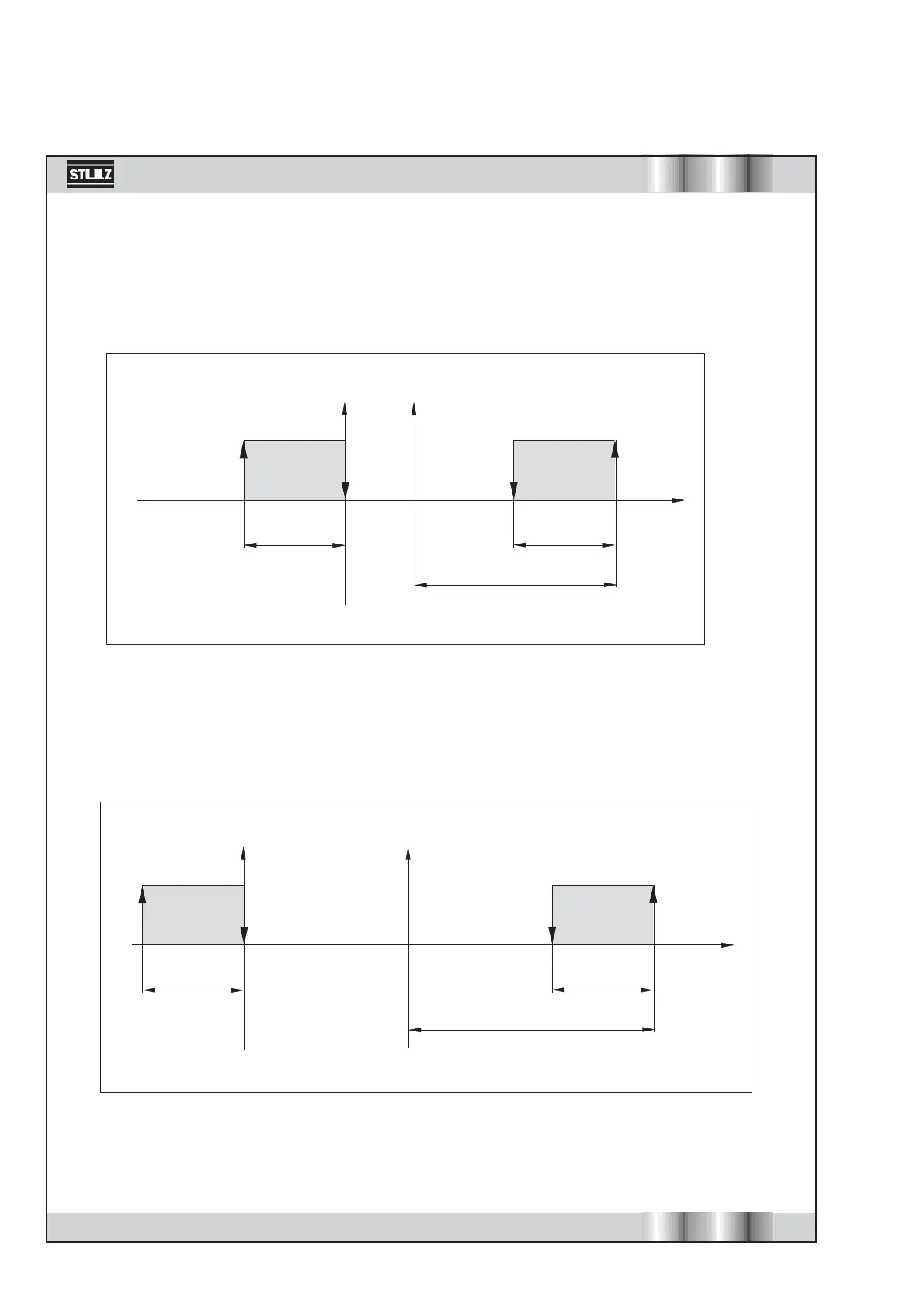

Operating Diagrams - C1010
Free Cooling Conditions
Unit 1
heating element
compressorheating element
Unit 2*
SET2 SET1
SET2 SET1
Conditioner 1 operates with setting at 25°C, between 32°C and 29.5°C.
Heating elements operate with setting at 15°C, between 12.5°C and 15°C.
Conditioner 2 (optional) operates with setting at 25°C, between 34°C and 31.5°C.
Heating elements 2 (optional) operate with setting at 12.5°C, between 10°C and 12.5°C.
* only with LAN connection of both units
