ASSEMBLY ENS SERIES
Assembly ENS Series
The humidifier can be installed in a compact air conditioning unit, a
ventilation or aereation system or into an air duct. In any case, the unit
should be installed such that it is easily accessible for reapir and service.
A drain pan made from stainless steel (1.4571) has to be provided. The
length of the pan should correspond to the humidifier path. (refer to 3.00).

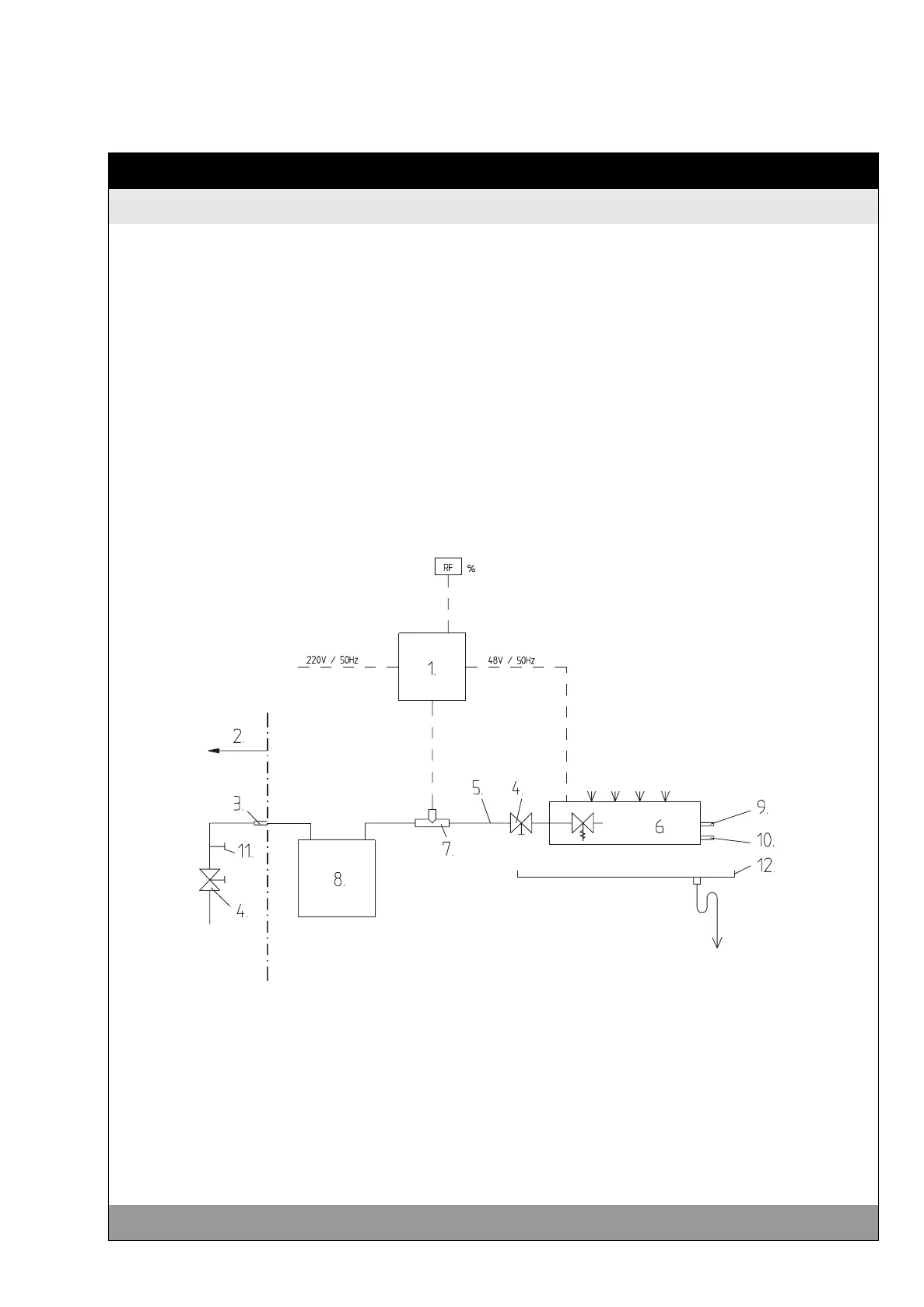

Installation Scheme
5.1
Legend for Installation Scheme
1. Control box
2.
to be provided by customer
3. Connection 3/4" male thread (gasket)
provide passage pipe interruptor
4. Hand valve
5. Stainless steel pipe φ 6 mm (1.4571)
