TECHNICAL DATA ENS SERIES

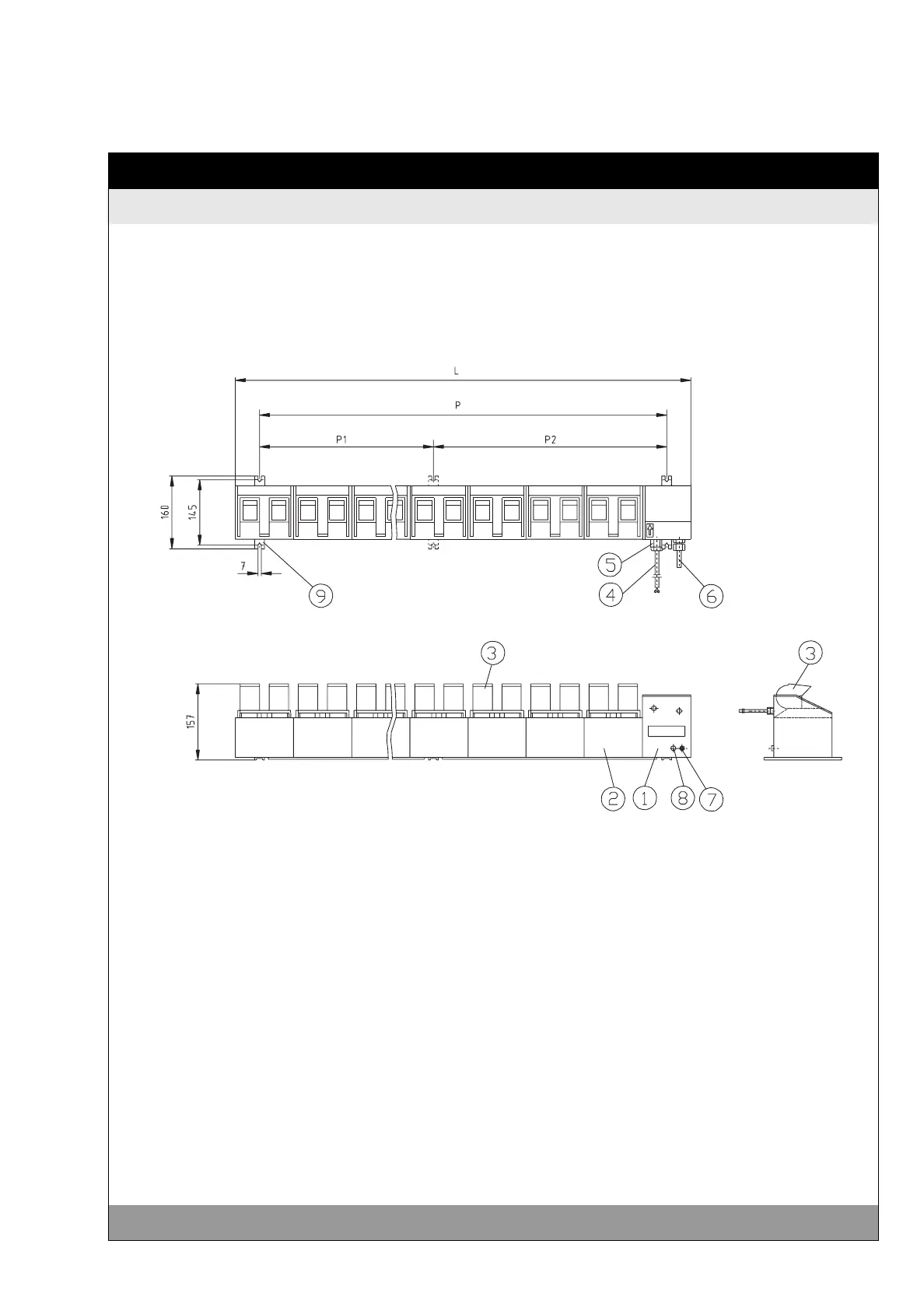

Dimensioned Drawings
Unit Assembly ENS 1200-9600
Dimensions L, P, P1, P2 refer to page 5 "Dimensions"
Legend
1 Water supply module
2 Nebulizing module
3 Mist collector
4 Electric supply*
5 Cable socket
6 Water supply line*
7 Safety overflow
8 Water drain
9 Installation base
*
to be supplied by customers
