ELECTROTECHNICAL INFORMATION ENS 1200-9600
4.5 Electrotechnical Information ENS 1200-9600

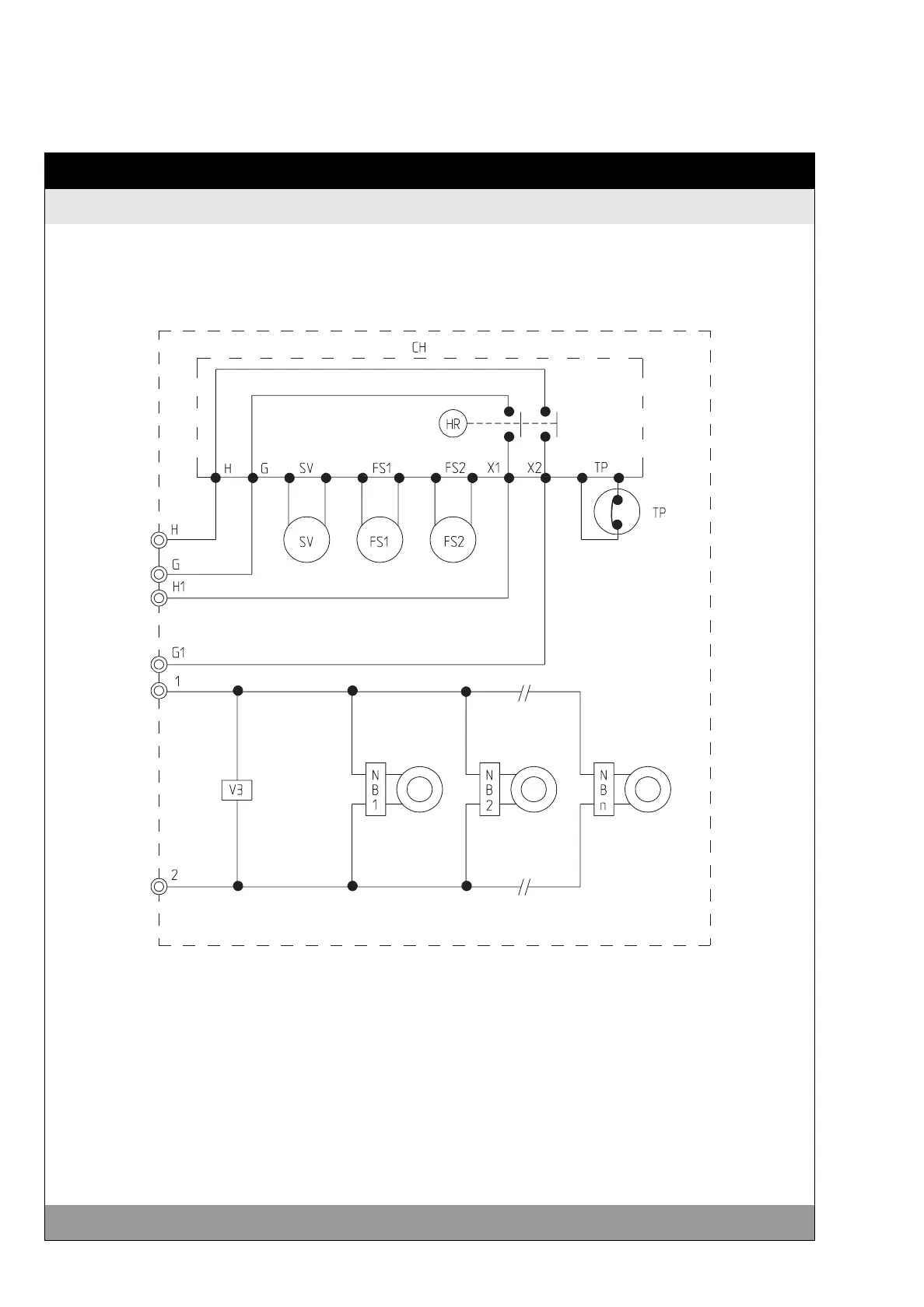

Internal Wiring
Legend:
V2-4 Varistor
CH Relay board
HR Auxiliary relay
SV Solenoid valve
FS1 Float switch for water supply
FS2 Flow switch for low water level
TP Thermostat
FAN Fan
NB1..n Ultrasonic nebulization module
