Stulz UltraWater 400 basic - 7.2.3. Connecting to the pressure tank (C)

Installation STULZ UltraWater 3-stage reverse osmosis system SUW
© STULZ GmbH, Hamburg
-
26
-

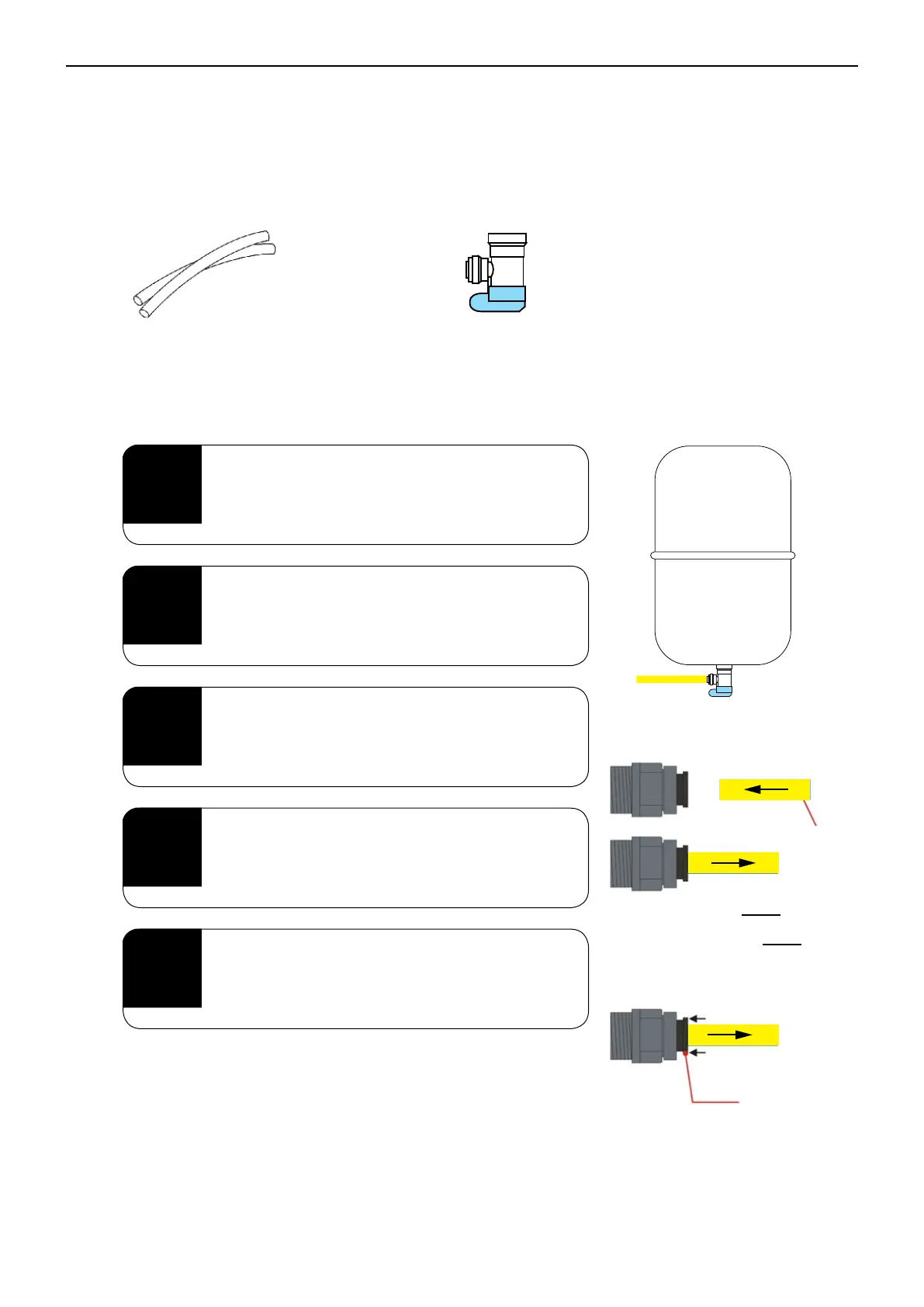

Corner valve
Connecting
hose
Pressure tank
3
Screw the corner valve onto the pressure tank.
Warning: The corner valve may be damaged if
overtightened.
2
Apply sealant using Teon tape or silicone. If us-
ing Teon tape, do not use too many layers!
4
Connect the hose (yellow) to the pressure tank
and connection (C) of the SUW.
The hose is available as an accessory (1220948).
1
Remove the protective cap from the corner valve.
5
To disassemble, squeeze the clamping sleeve and
pull off the hose.
7.2.3. Connecting to the pressure tank (C)
To connect the supplied pressure hoses, cut the ends of the hoses straight using a sharp pipe cutter.
The components of the supplied connection material are as follows:
• Connecting hose 6 mm (yellow) • Corner valve
-
8
-
© STULZ GmbH, Hamburg
-
8
-
1.3 Lieferumfang
Wasserhahn
12 Liter Wasserspeicher
Gehäuseschüssel
Ventil
Zuleitung
Drainageanschluss /
Abflussventil Brauchwasser
Wasseranschlussadapter
Kugelventil
Wasserspeicher
UV-RöhreVerbindungsschlauch
Proceed as follows to connect the pressure tank:
Hose
Clamping sleeve
