PAGE 7 STUV 6 | SPECIFICATIONS & MANUFACTURER INSTALLATION GUIDE
^

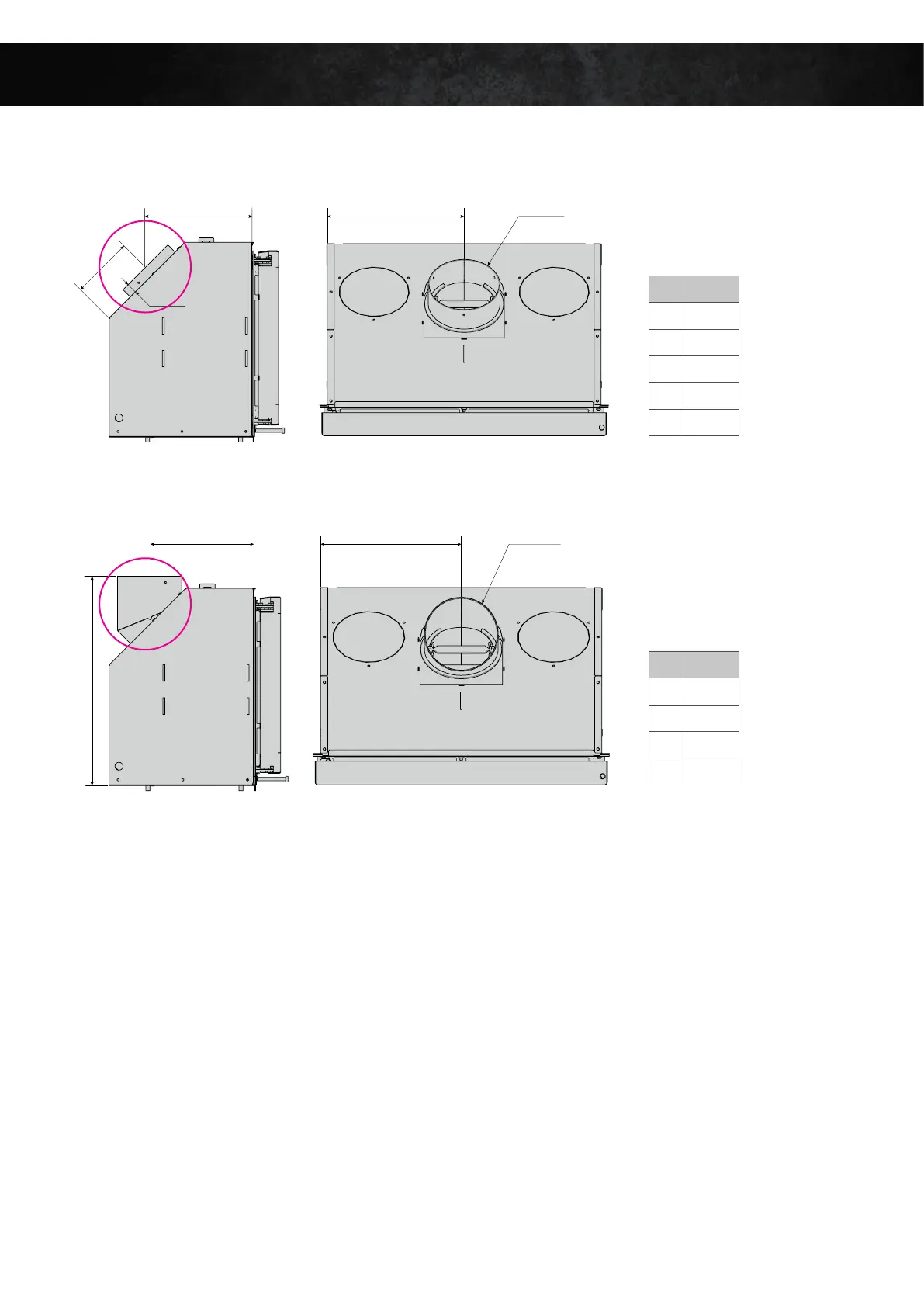

6” FLUE AND 100MM AIR INTAKE CONNECTIONS
mm
A 149
B 29
C 262
D 345
E 150
mm
A 555
B 251
C 345
D 150
A
A
B
B
C
C
D
D
E
Dimensions of the smoke outlet at 45°
Dimensions of the smoke outlet upwards
