PAGE 6 STUV 6 | SPECIFICATIONS & MANUFACTURER INSTALLATION GUIDE
^
DECORATIVE FRAMING OPTIONS
FITTED FRAME 4 SIDES (mm)
FITTED FRAME 3 SIDES (mm)
A B C D E F G
Stuv 6 – 76 x 55 794 744 586 536
316
(-0/+20)
413
(-0/+20)
60
(-0/+20)
A B C D E F G
Stuv 6 – 76 x 55 796 746 567 545
316
(-0/+20)
413
(-0/+20)
60
(-0/+20)
A
C
D
E
F
G
B

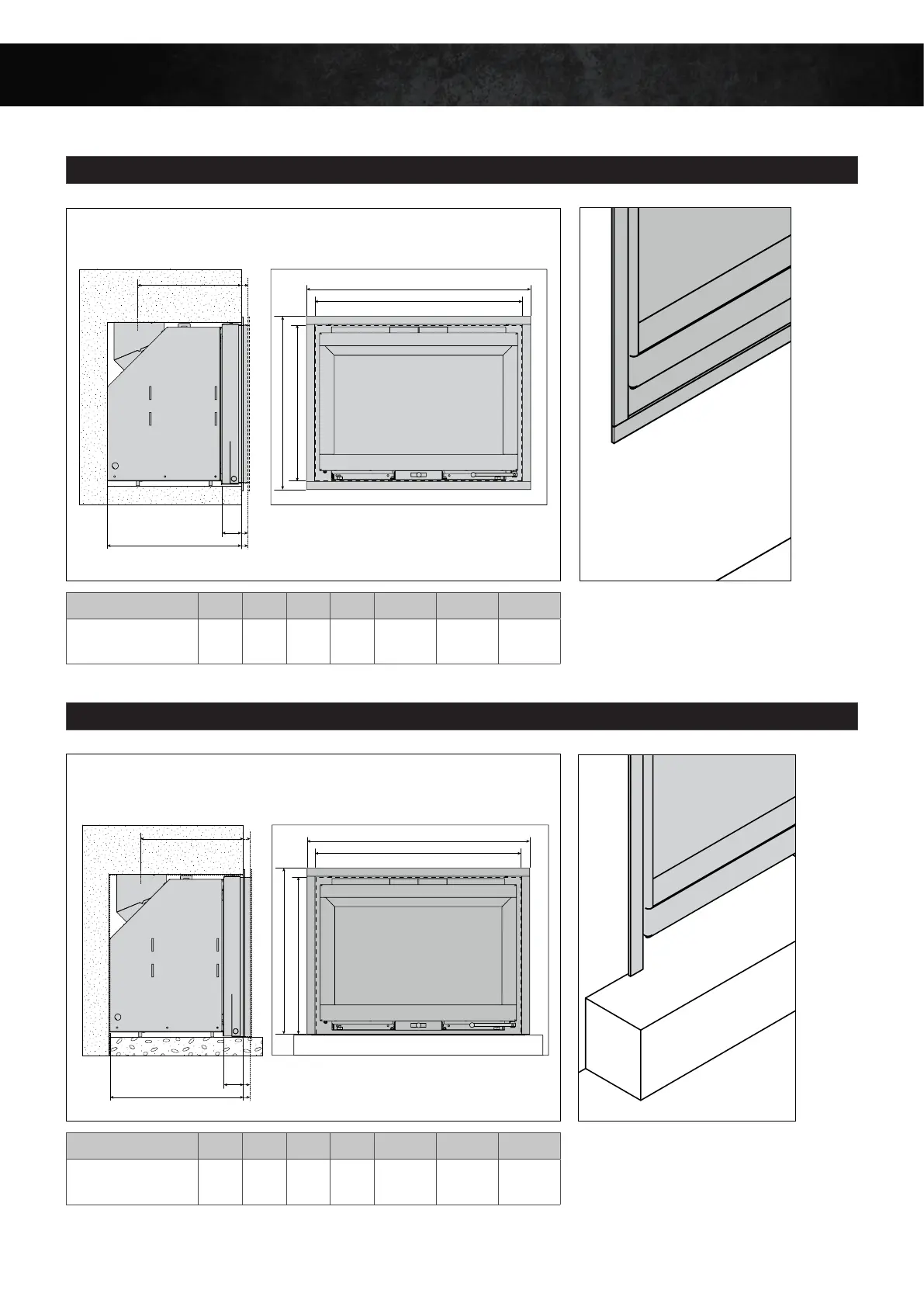

Applied frame 4 sides
A
C
D
F
G
E
B
Applied frame 3 sides
