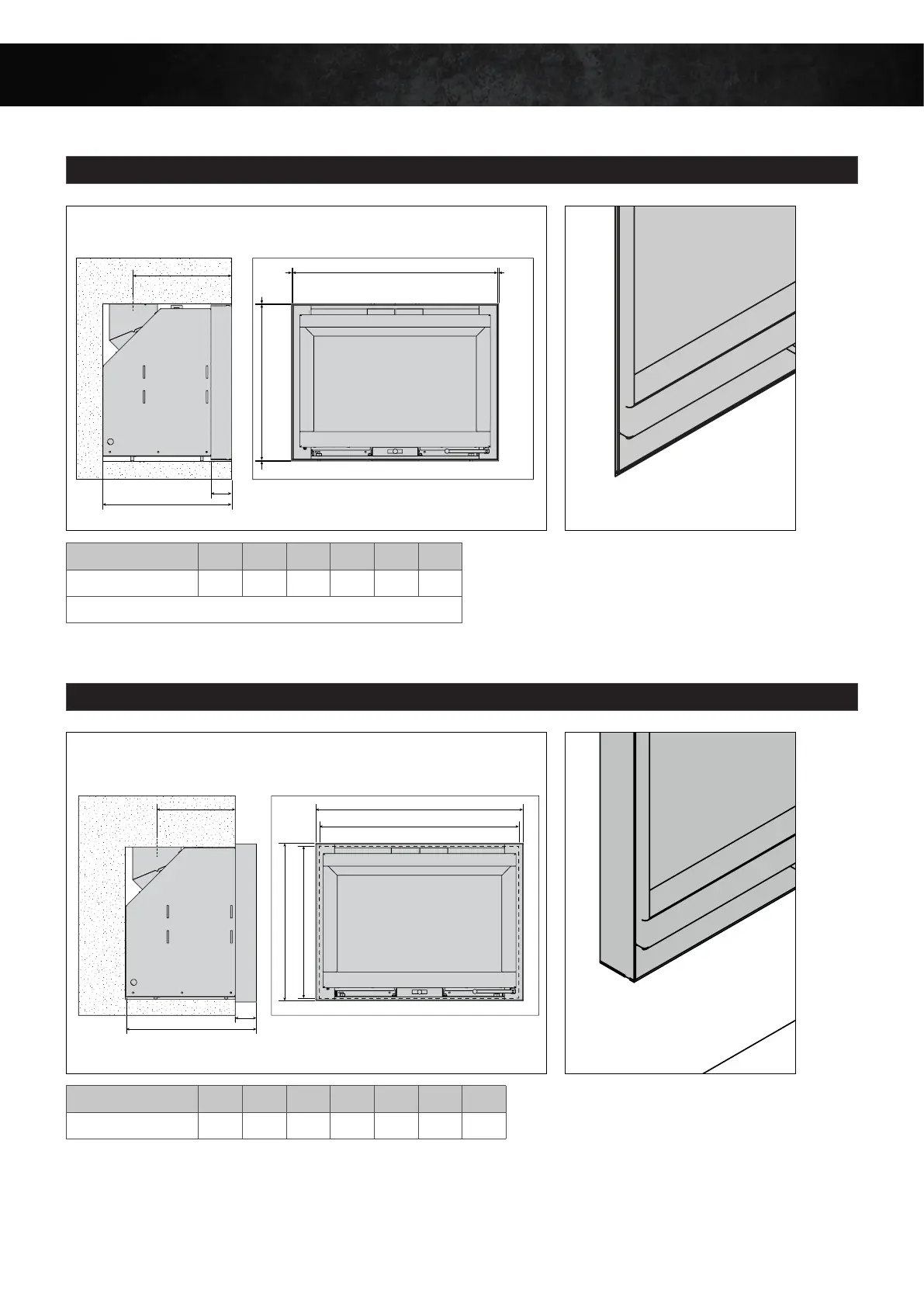

PAGE 5 STUV 6 | SPECIFICATIONS & MANUFACTURER INSTALLATION GUIDE
^
A
A
B
CD
E
G
F
BB
B
B
C
D
E
F
Thin flush frame
Thin extended frame
DECORATIVE FRAMING OPTIONS
THIN FLUSH FRAME (mm)
THIN EXTENDED FRAME (mm)
A *B C D E F
Stuv 6 – 76 x 55 760
4
550
317 414 67
*Expansion joint that must be respected around the decorative frame
A B C D E F G
Stuv 6 – 76 x 55 760 722 550 528 250 67 414
