7-51
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
Component Access / Removal
#3758407 - Revision B - August, 2006
Freezer Lower Evaporator Cover/Light Assembly
(685-2, 695-2)
The lower evaporator cover/light assembly has two
holes at the rear which fit over pegs in the rear wall.
Screws toward the front sides of the cover secure the
assembly to the side walls.
To remove the lower evaporator cover/light assembly,
the evaporator front cover/light assembly must first be
removed, then (See Figure 7-133):
1. Extract screws toward front sides of assembly.
2. Disconnect lighting electrical leads.
3. Pull assembly forward.
Ice Bucket Mainframe Assembly (685-2, 695-2)
The ice bucket mainframe assembly is secured to the
mullion wall and the rear wall with screws.
To remove the ice bucket mainframe assembly, the
juice can rack and evaporator front cover/light assembly
will need to be removed first, then (See Figure 7-134):
1. Extract mounting screws from rear wall.
2. Extract mounting screws from mullion wall.
3. Pull ice bucket mainframe assembly down slightly
and disconnect icemaker electrical leads.
Icemaker (685-2, 695-2)
The icemaker is attached to the ice bucket mainframe
assembly with screws.
To remove the icemaker, the ice bucket mainframe
assembly will need to be removed from the freezer sec-
tion first, then (See Figure 7-135):
1. Extract mounting screw which secure icemaker to
ice bucket mainframe assembly.
2. Lift icemaker assembly off of ice bucket mainframe
assembly.

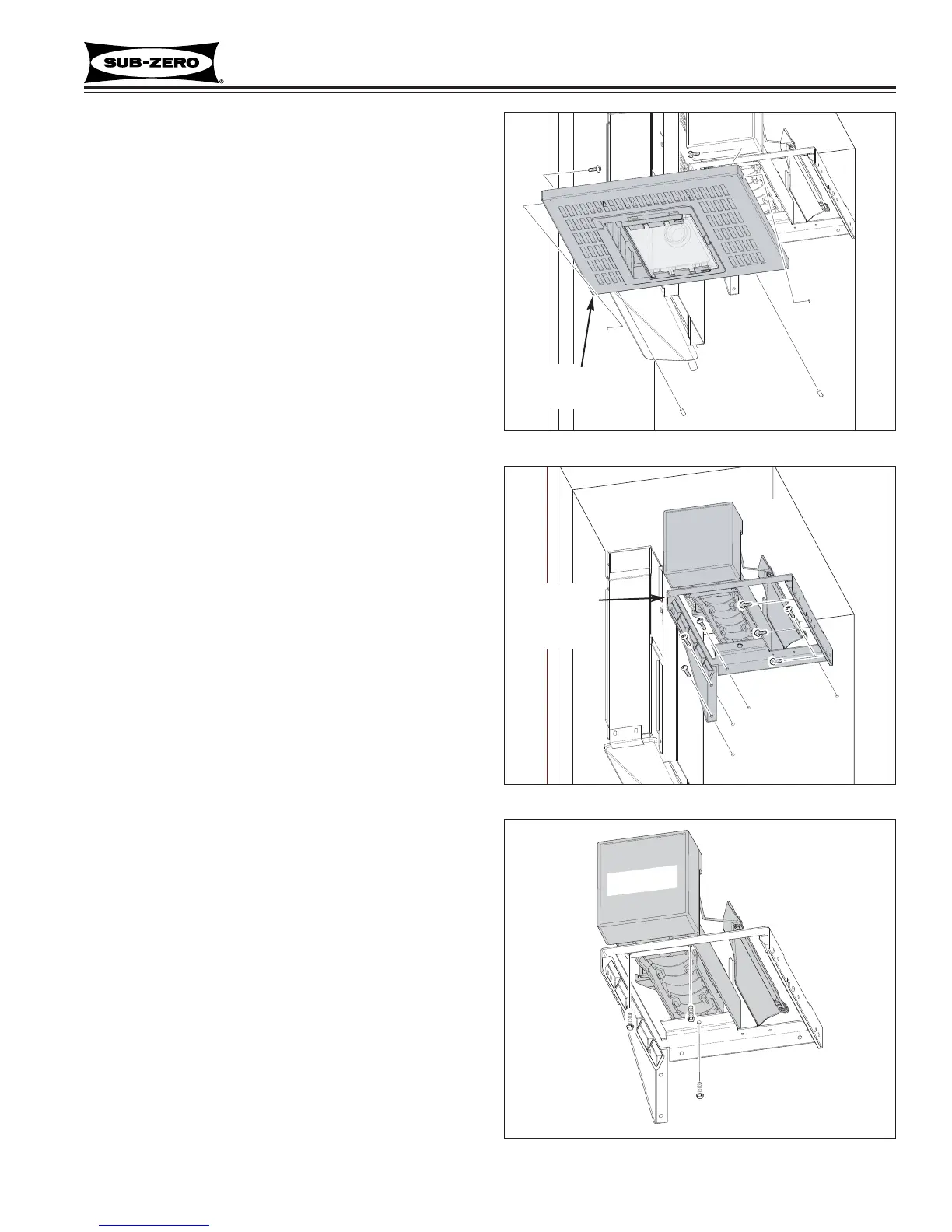

Figure 7-133. Lower Evap Cover/Light Assy
Lower Evap
Cover / Light Assy
Figure 7-135. Icemaker
Figure 7-134. Ice Bucket Mainframe Assembly
Icemaker &
Mainframe
Assembly
Icemaker
To Next Page
