Sub-Zero 611-2 User Manual

7-52
Component Access / Removal
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
#3758407 - Revision B - August, 2006

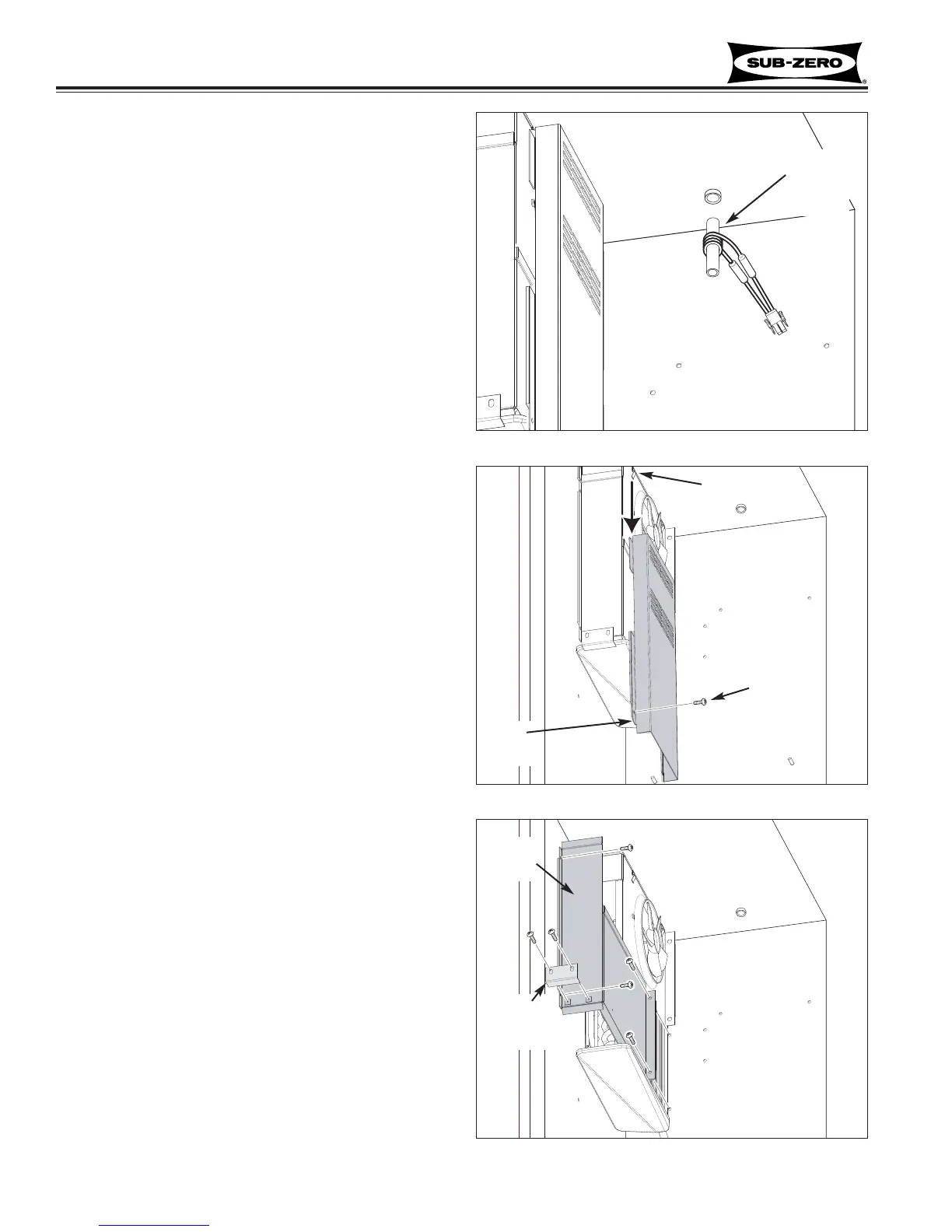

Figure 7-136. Icemaker Fill Tube and Heater
Figure 7-138. Terminator / Bimetal
Figure 7-137. Fan Cover
Icemaker Fill Tube Heater (685-2, 695-2)
To remove the icemaker fill tube heater, the juice can
rack, evaporator front cover/light assembly, and ice
bucket mainframe assembly will need to be removed
first, then (See Figure 7-136):
1. Disconnect heater electrical leads.
2. Extract retaining screw and clamp (if present).
3. Pull heater and aluminum fill tube extension out as
one.
Freezer Fan Cover Assembly (685-2, 695-2)
The freezer fan cover is held in place at the top by clips
that are pat of the evaporator fan assembly. At the bot-
tom left of the fan cover, a screw secures it to the evap-
orator cover assembly.
To remove the freezer fan cover assembly, the juice can
rack, evaporator front cover/light assembly, and lower
evaporator cover/light assembly will need to be
removed first, then (See Figure 7-137):
1. Extract the screw from the bottom left corner.
2. Slide assembly down, out of clips.
Evaporator Cover Assembly (685-2, 695-2)
The evaporator cover assembly is held to the back and
left side wall with screws, and the drain pan support is
held to the evaporator cover assembly with screws
passing into screw grommets.
To remove the evaporator cover assembly (along with
the drain pan support), the juice can rack, evaporator
front cover/light assembly, lower evaporator cover/light
assembly and freezer fan cover need to be removed
first, then (See Figure 7-138):
1. Extract the screws from the back and left side walls.
2. Pull assembly forward.
Fill Tube
&
Heater
Screw
Fan
Cover
Evap
Cover
Drain
Pan
Support
Clip
