Component Access / Removal
#3758407 - Revision B - August, 2006
Freezer Compartment Thermistor (685-2 only)
NOTE: The model 695-2 freezer compartment thermis-
tor is attached to the mullion wall. See “Freezer
Compartment Thermistor (695-2)” earlier in this section.
The 685-2 freezer compartment thermistor is behind the
evaporator cover assembly, inside the air duct.
To remove the compartment thermistor, the juice can
rack, evaporator front cover/light assembly, lower evap-
orator cover/light assembly, freezer fan cover, and
evaporator cover assembly must be removed first, then
(See Figure 7-139):
1. Disconnect thermistor electrical leads.
NOTE: On newer models the thermistor is hard-
wired to the control board, so it will be necessary to
cut the thermistor wires to remove it.
2. Pull thermistor up out of duct.
Freezer Evaporator Thermistor (685-2, 695-2)
The freezer evaporator thermistor is attached to the
front evaporator bracket with a screw.
To remove the freezer evaporator thermistor, the juice
can rack, evaporator front cover/light assembly, lower
evaporator cover/light assembly, freezer fan cover, and
evaporator cover assembly will need to be removed
first, then (See Figure 7-140):
1. Disconnect thermistor electrical leads.
NOTE: On newer models the thermistor is hard-
wired to the control board, so it will be necessary to
cut the thermistor wires to remove it.
2. Extract screw securing thermistor to evaporator
bracket.
Defrost Terminator & Fan Delay Bimetal
(685-2, 695-2)
The defrost terminator and fan delay bimetal are
attached to the evaporator outlet.
To remove the defrost terminator and fan delay bimetal,
the juice can rack, evaporator front cover/light assem-
bly, lower evaporator cover/light assembly, freezer fan
cover, and evaporator cover assembly will need to be
removed first, then (See Figure 7-141):
1. Disconnect terminator, or bimetal electrical leads.
2. Pull terminator, or bimetal off of tubing.

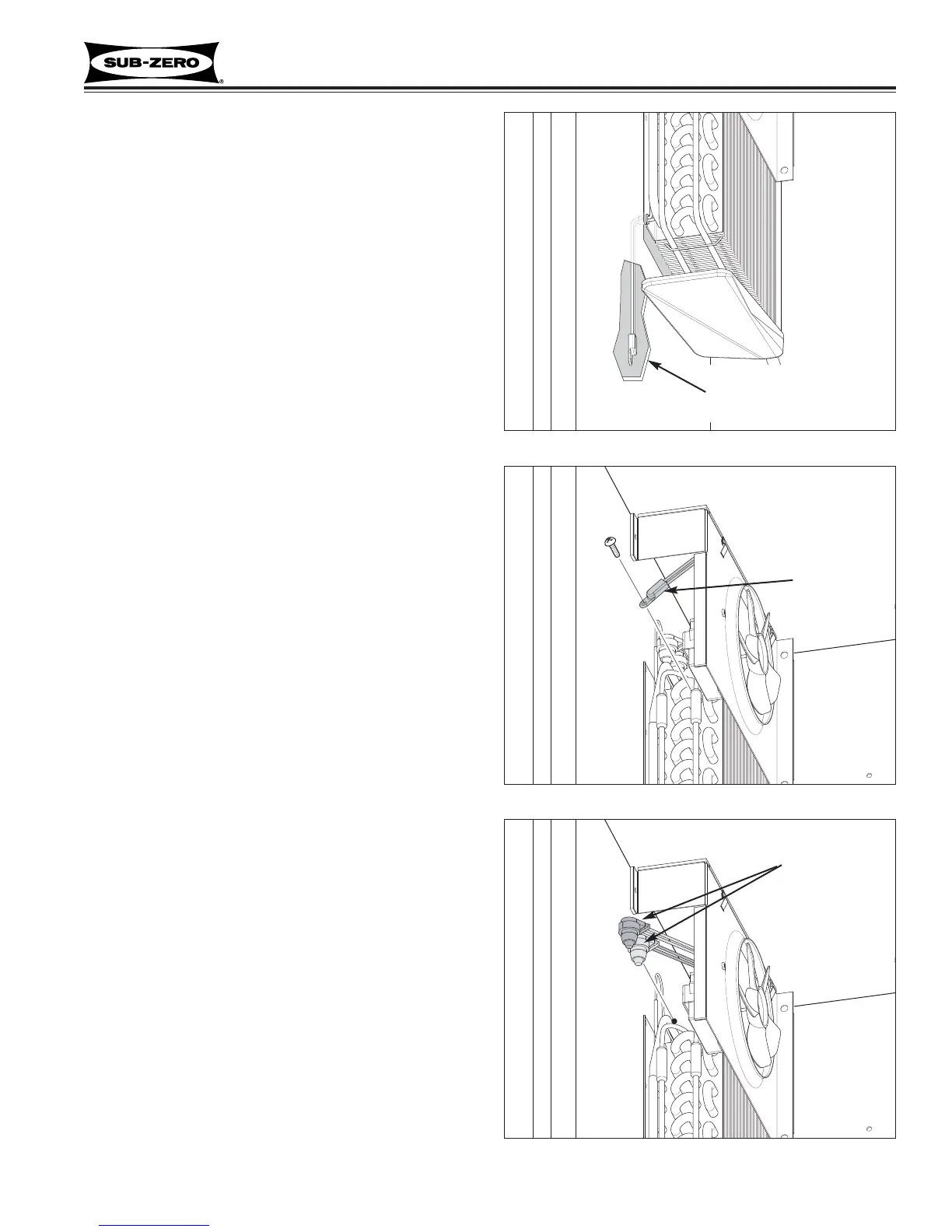

Figure 7-139. 685-2 Compartment Thermistor
Figure 7-141. Terminator & Fan Delay Bimetal
Figure 7-140. Evaporator Thermistor
685-2 Freezer
Compartment Thermistor
(inside duct)
Evaporator
Thermistor
Defrost
Terminator &
Fan Delay
Bimetal
