INSTALLATION
Water Line
Purge the water line prior to nal connection to the unit. This
will remove any debris that may be present in the tubing

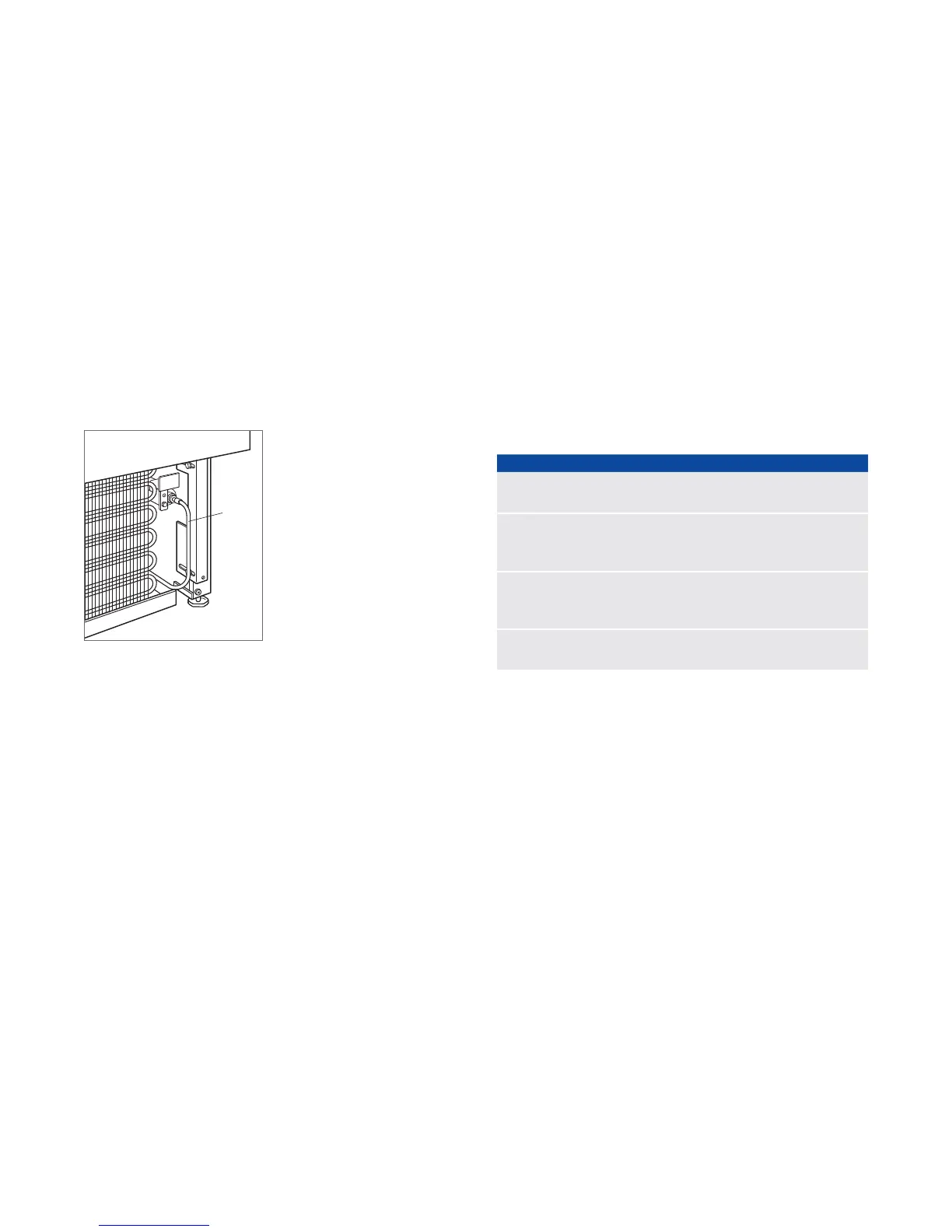

from installing the new water line. Connect the plastic tubing
from the unit to the house water supply line with the tting
connection kit provided. Check all water line ttings for
leaks. Refer to the illustration below.
IMPORTANT NOTE: Water lines can not be exposed to
freezing temperatures.
PEX
TUBING
Water line.
Custom Panels
For integrated models, custom door panels and handle
hardware must be installed. Stainless steel panels are
available through an authorized Sub-Zero dealer. For local
dealer information, visit the nd a showroom section of our
website, subzero.com.
The thickness of the custom panel can vary. A minimum
5
/8" (16) thick panel is required, but the thickness can be
increased provided it does not exceed the maximum panel
weight indicated in the chart below. The depth of each
integrated model is 24"
(610). Allow for panel thickness when
planning the nished opening depth.
PANEL REQUIREMENTS
COLUMN MAX WEIGHT
27" (686) 65 lbs (29 kg)
TALL (DOOR) MAX WEIGHT
27" (686) 40 lbs (18 kg)
36" (914) 53 lbs (24 kg)
DRAWER MAX WEIGHT
27" (686) 12 lbs (5 kg)
36" (914) 16 lbs (7 kg)
PANEL THICKNESS MINIMUM
All Panels
5
/8" (16)
