Dual Installations 32

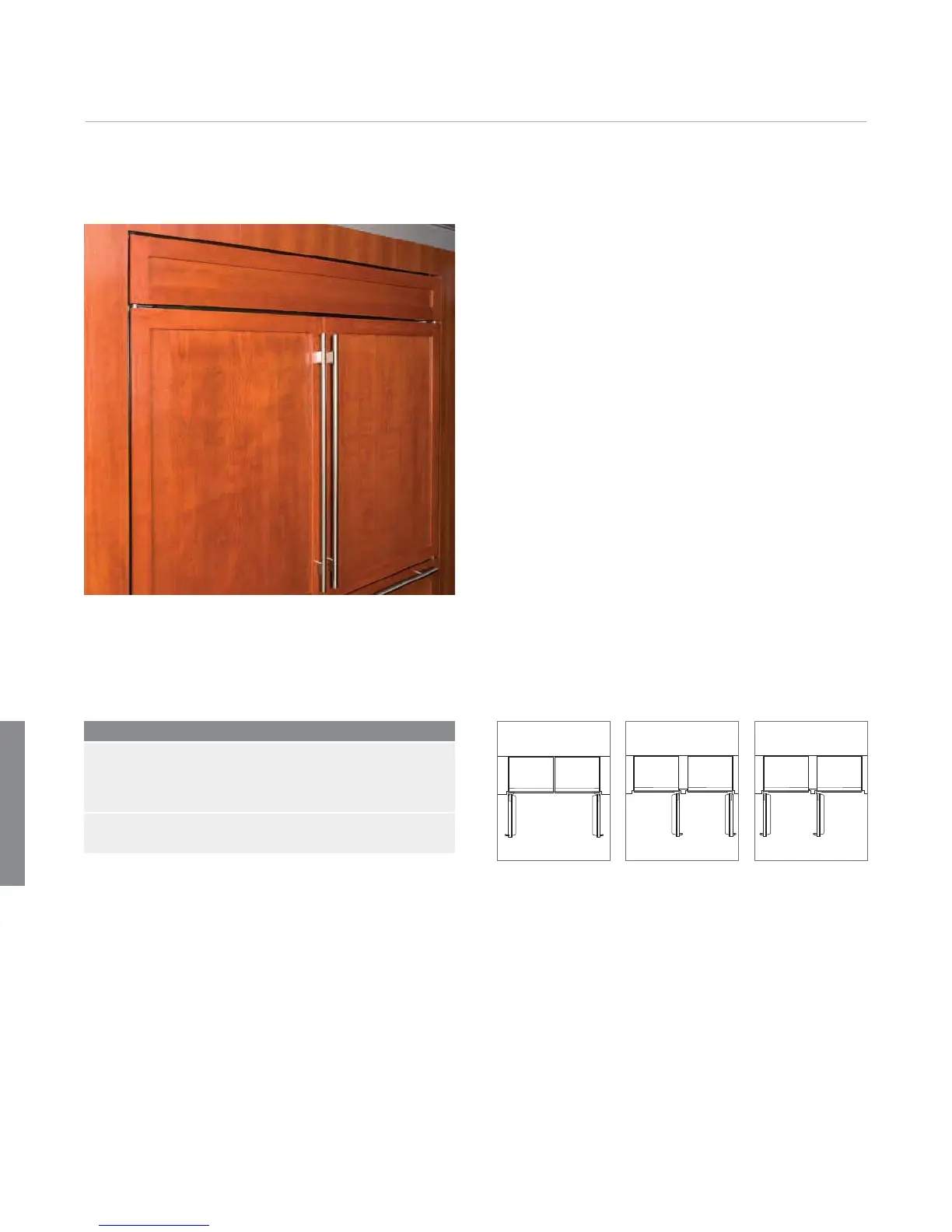

Dual Flush Inset Installation. Installing two built-in
models side by side in a flush inset application will require
adjustments to the dimensions of your finished rough
opening, panel sizes and panel offsets. It will also require
a dual installation kit, available through your Sub-Zero
dealer.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip. Illustration A is the
only application that will accommodate the dual wide grille.
IMPORTANT NOTE: The application shown in illustration A
can only be achieved by installing dual flush inset panels.
Failure to install dual flush inset panels will cause the
handle side of the panels to collide when closing. In this
application a dual installation accessory kit is also
required.
Dual flush inset panels and dual installation kits are avail-
able through your Sub-Zero dealer. Refer to pages 34–35
for dual flush inset panel specifications and page 36 for
information on dual installation accessory kits.
Dual Flush Inset Installation
Dual Installation Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F 75 lbs (34 kg)
All Other Models 50 lbs (23 kg)
Dual Wide Grille Panel 26 lbs (12 kg)
MIN PANEL THICKNESS
Flush Inset Panels
5
/8" (16)
Illus. A
WITHOUT FILLER STRIP
FILLER STRIP REQUIRED FILLER STRIP REQUIRED
Illus. B Illus. C
Dual Installations
