Full-Scale Templates
TOP VIEW
OPTIONAL
FRAMED EXTENDED
FULL-LENGTH HANDLE
STANDARD
FRAMED
FULL-LENGTH
HANDLE
DOOR CLOSED
DOOR OPEN 110˚
FILLER STRIP
MAIN FRAME
ALLOW FOR FILLER LAP
BEHIND FLANGE
APPROX PROFILE OF
STAINLESS STEE WRAPPED
DOOR AND HANDLE
SUB-ZERO UNITSUB-ZERO UNIT
OVERLAY PANEL
3
/4" (19) THICK
(TYPICAL)
1
/
4
"
(6)
PA NEL
1
1
/
4
"
(32) PANEL
3
/
4
"
(19)
PA N
EL
1
/
2
"
(13) PANEL
1"
(25) PANEL
2" (51)
APPROX THICKNESS OF
WRAPPED STAINLESS
STEEL DOOR

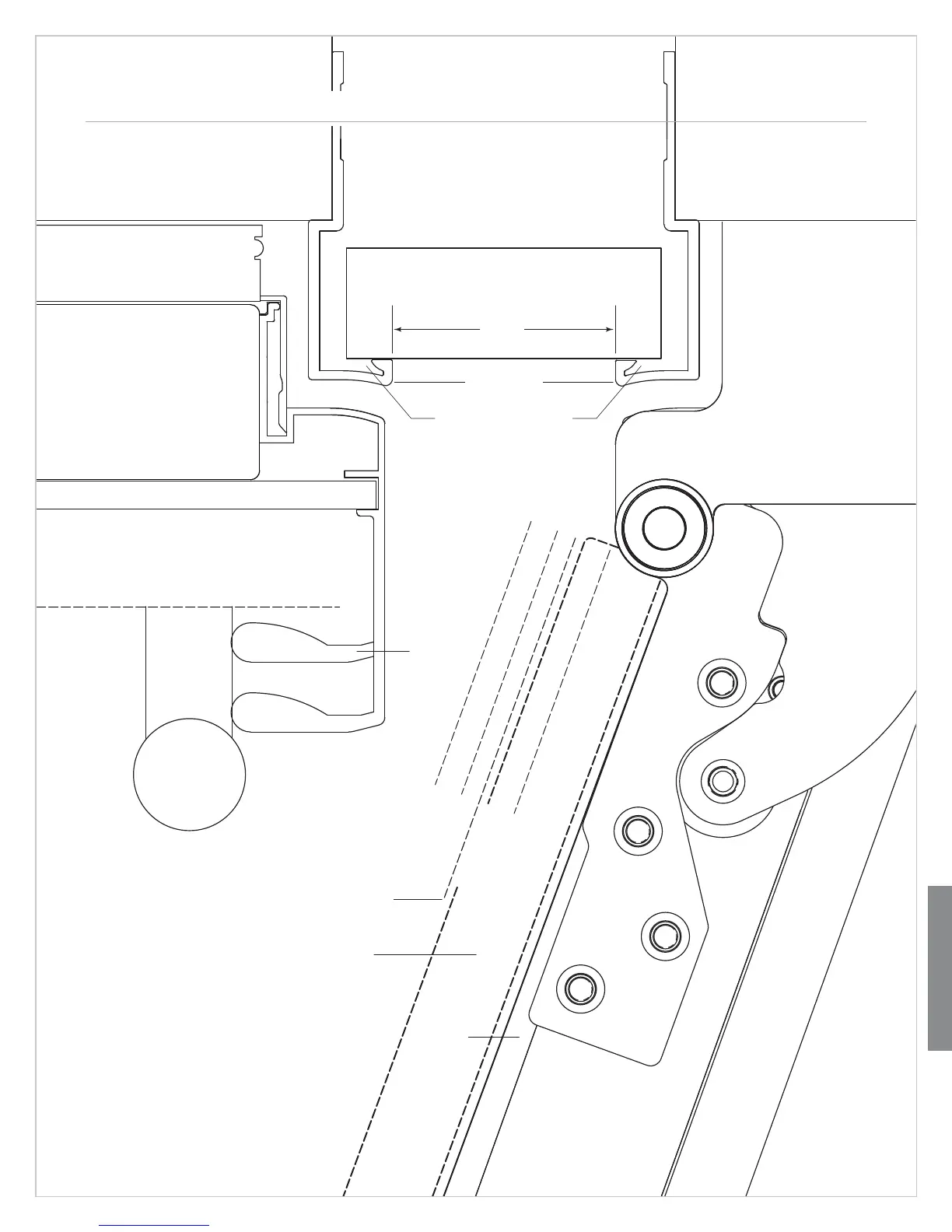

This full-scale template
shows the panel and handle
profile for a dual installation
with a 2" (51) filler strip at
110˚ door opening.
Interference of door panels
with handles at maximum
door opening may require
the use of an optional 90˚
door stop available through
your Sub-Zero dealer.
Dimensions in parentheses
are in millimeters unless
otherwise specified.
Panel and Handle Profile—110° Door Opening 41
