Sub-Zero BI-36UFD User Manual

Built-In Refrigeration 19
subzero.com/specs
Overlay Panels

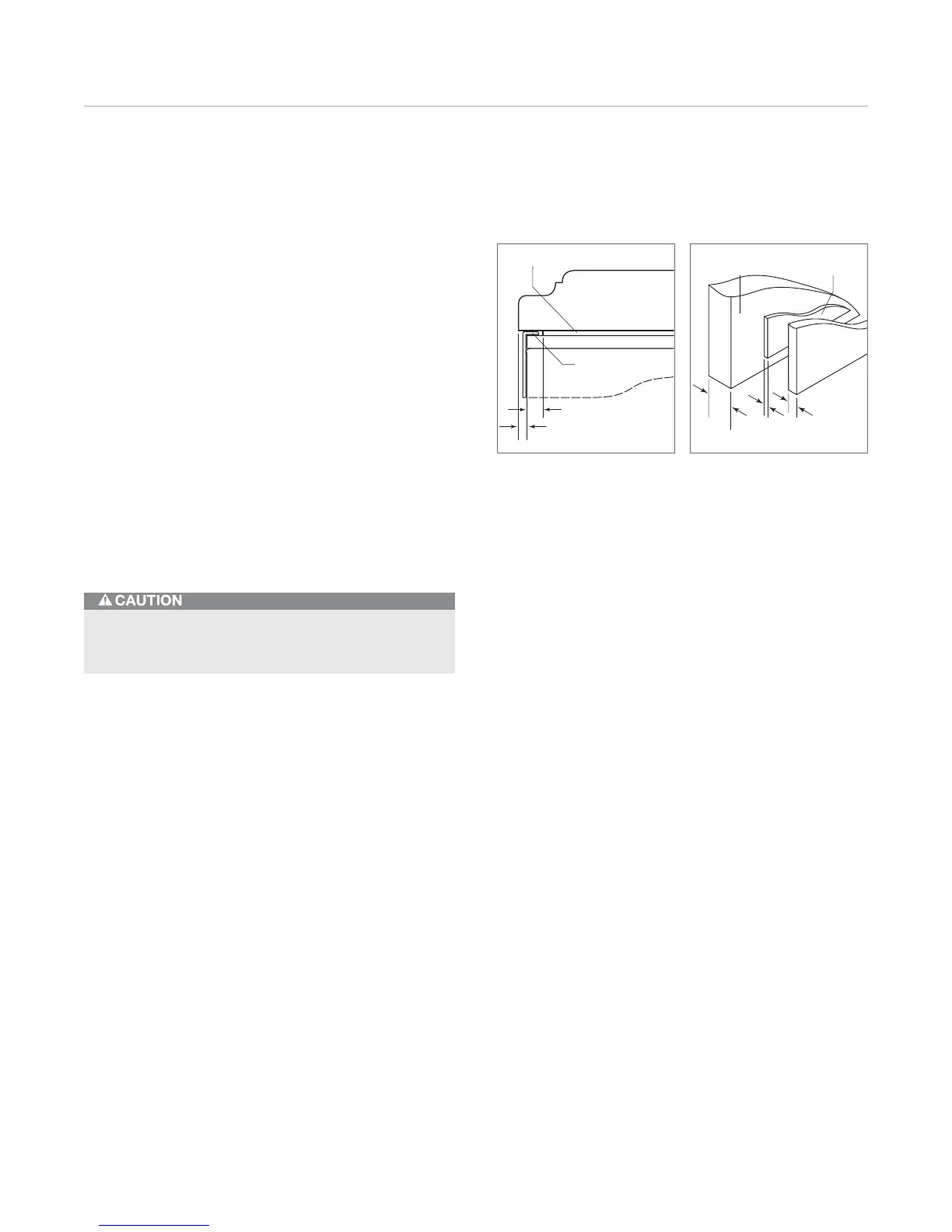

The illustrations provide a cross section view of the three-
panel assembly, showing placement of the trim and a rear
view of the three-panel assembly with critical dimensions,
standard for all built-in models.
Overlay grille panels for the panel grille match the design
of the overlay door panels. Dimensions for the grille panel
are listed in the overlay panel specifications on the follow-
ing pages.
IMPORTANT NOTE: On glass door models, the edges of
the overlay, spacer and backer panels of the window
cut-out will need to be finished, as they will be exposed.
IMPORTANT NOTE: When installing two units in a side-by-
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
1
/8"
(3)
OVERLAY PANEL
SPACER PANEL
BACKER PANEL
TRIM
5
/16" (8) min
Panel assembly cross section. Panel assembly rear view.
1
/4" (6)
.10" (3)
OVERLAY
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
typical
Do not exceed overlay panel dimensions, as this could
cause damage to panels and the Sub-Zero unit.
