Drain Pump
ICE MACHINE MODELS
Undercounter ice machine models can be ordered with or
without a pump. Models without a drain pump will drain
water from the unit by gravity. A drain must be installed.
The drain and inlet water tubes must be plumbed before
connecting to the ice machine. For the gravity drain, all
horizontal runs of drain lines must have a
1
/4" (6) per 12"
(305) fall. An air gap will likely be required between the unit
and drain receptacle. A stand pipe with a trap below it
would be acceptable for the drain receptacle.
IMPORTANT NOTE: Poor drainage will cause excessive ice
melting in the ice bin.
Undercounter Refrigeration 88
Planning Information
PLUMBING REQUIREMENTS
For model UC-24C(I) and ice machine models, the water
supply line should be located within the shaded area
shown in the illustrations below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve between the supply and the
unit. Do not use self-piercing valves. A saddle valve kit is
available through your authorized Sub-Zero dealer.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 20 psi
(1.4 bar) to 100 psi (6.9 bar) supplied to the unit at all times.
A copper line is not recommended for this application.

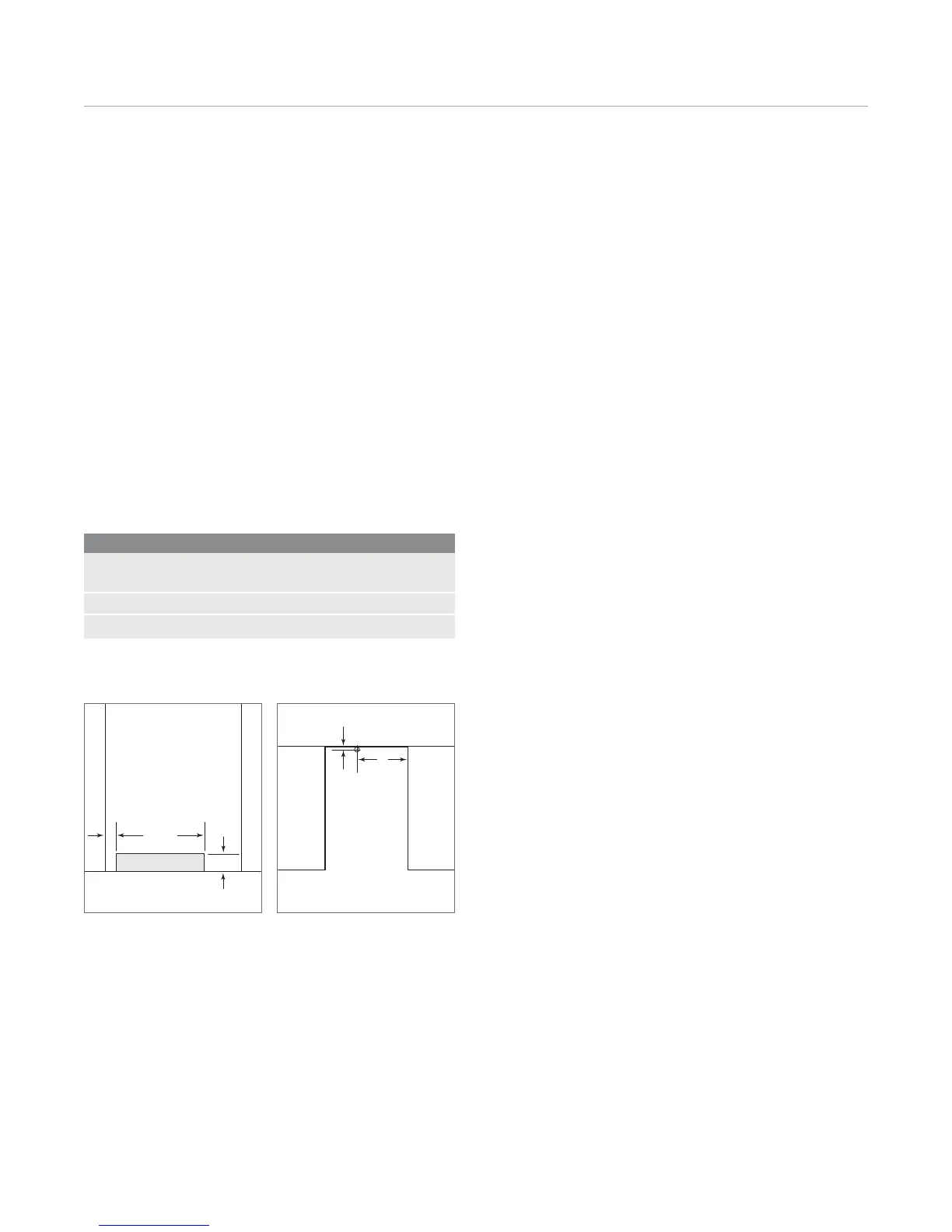

FRONT VIEW
SHADED AREA
EXTENDS
1
/2" (13)
FROM BACK WALL
15
1
/2"
(394)
3" (76)
2" (51)
Model UC-24C(I). Ice machine models.
LOCATION OF
WATER LINE
8"
(203)
1
/2"
(
13
)
TOP VIEW
Plumbing Requirements
Water Supply Line
1
/4" OD copper, braided stainless steel
or PEX tubing
Water Pressure 20–100 psi (1.4–6.9 bar)
Excess Water Line for Connection 26" (660) min
