Built-In Refrigeration 11
subzero.com/specs
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
3"
(76)
18"
(457)
FRONT VIEW
FLOOR
6"
(152)
Location of water supply—
rear.
Location of water supply—
bottom.
TOP VIEW
BACK WALL
1
/
2
"
(13)
18"
(457)
6"
(152)
FRONT VIEW
75
1
/2"
(1918)
FROM
FLOOR
7"
(178)
E
6"
(152)
Location of electrical supply.

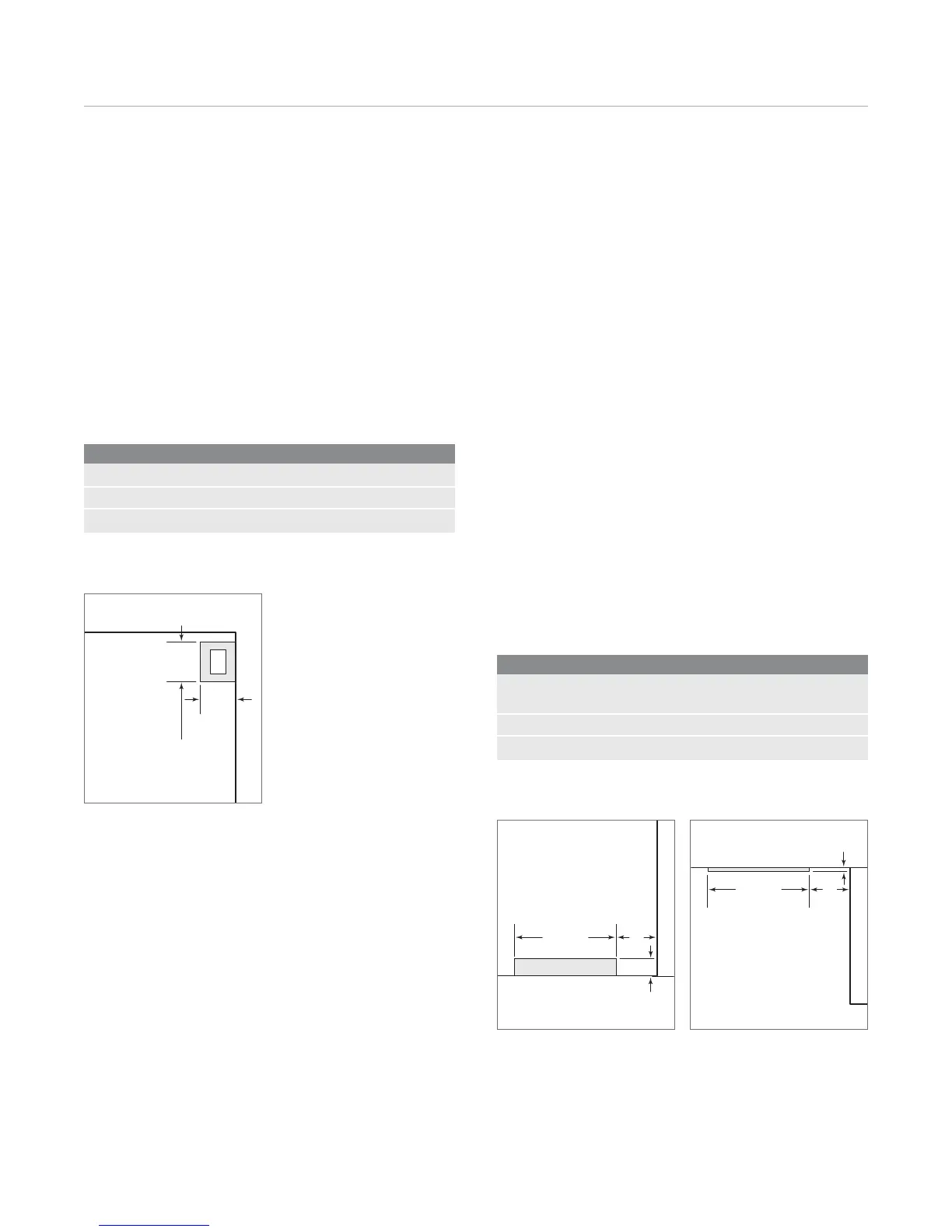

Planning Information
ELECTRICAL REQUIREMENTS
For all built-in models, the electrical supply should be
located within the shaded area shown in the illustration.
Follow the National Electrical Code and local codes and
ordinances when installing the receptacle. A separate
circuit servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and
may cause interruption of operation.
PLUMBING REQUIREMENTS
All built-in models with an automatic ice maker feature a
water filtration system. The water supply line should be
located within the shaded area shown in the illustrations.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit is available through your authorized
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 35 psi
(2.4 bar) to 120 psi (8.3 bar) supplied to the unit at all times.
In this application, the water filtration system must be set
to bypass mode. This is achieved by removing the water
filter cartridge. Refer to the built-in installation guide
packed with the unit for detailed instructions. A copper
line is not recommended for this application.
Plumbing Requirements
Water Supply Line
1
/4" OD copper, braided stainless steel
or PEX tubing
Water Pressure 35–120 psi (2.4–8.3 bar)
Excess Water Line for Connection 36" (914)
