DOOR CLOSED
MODEL 424
3
/4" (19) DOOR PANEL
1
/2"
(13)
1
/8" (3)
MAXIMUM DOOR
OPENING 145°
1
/4" (6)
Wine Storage 83
subzero.com/specs

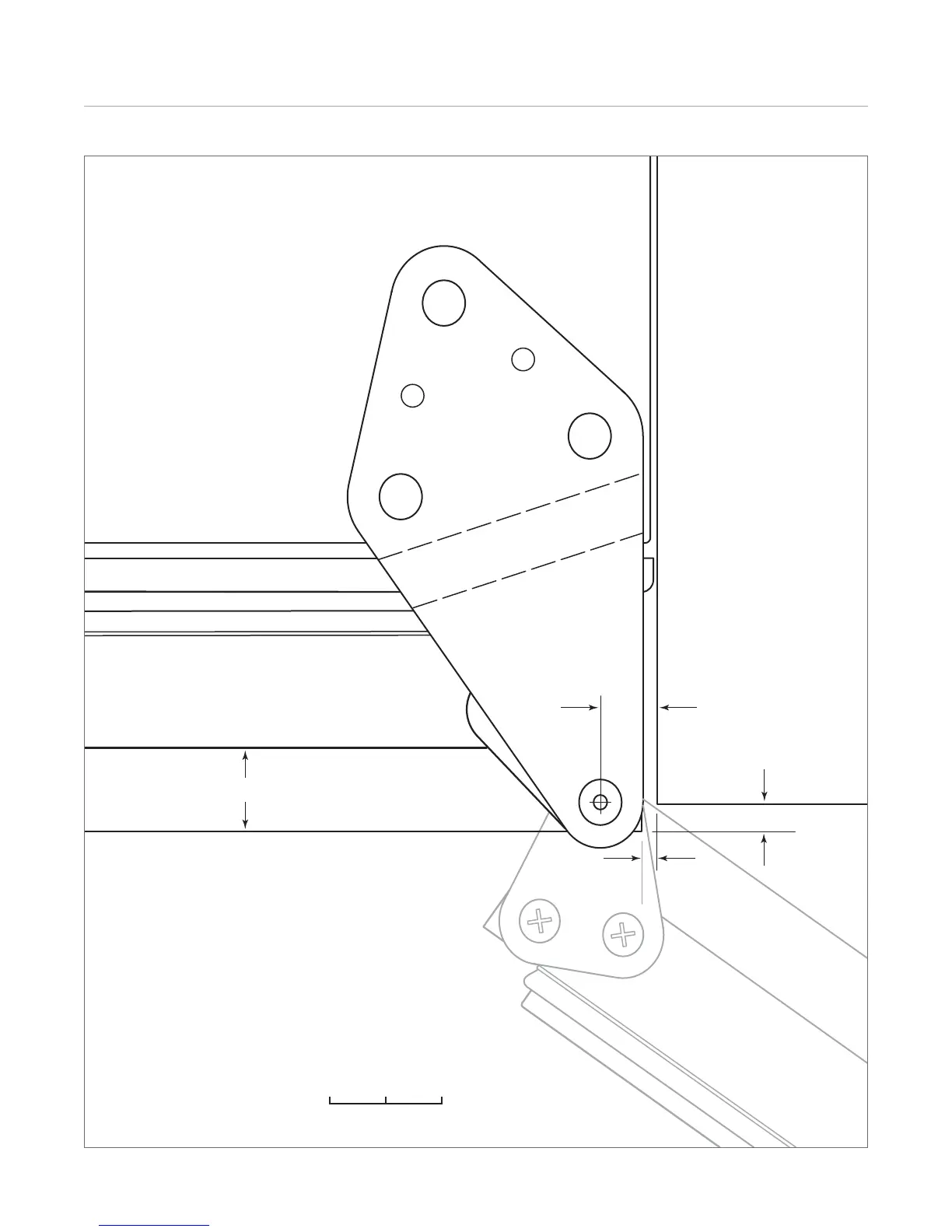

Door Clearance
FULL-SCALE TEMPLATE
Model 424G should extend a minimum
of
1
/4" (6) beyond the front surface of
adjoining cabinetry to allow for the
maximum 145° door opening. The unit
can be installed flush with adjacent
cabinetry, however, there is potential
for interference with the panel if the
door is opened past 90°.
DOOR OPENING 145°
TOP VIEW
1" (25)0"
SCALE
