Integrated Refrigeration 56
Electrical Requirements

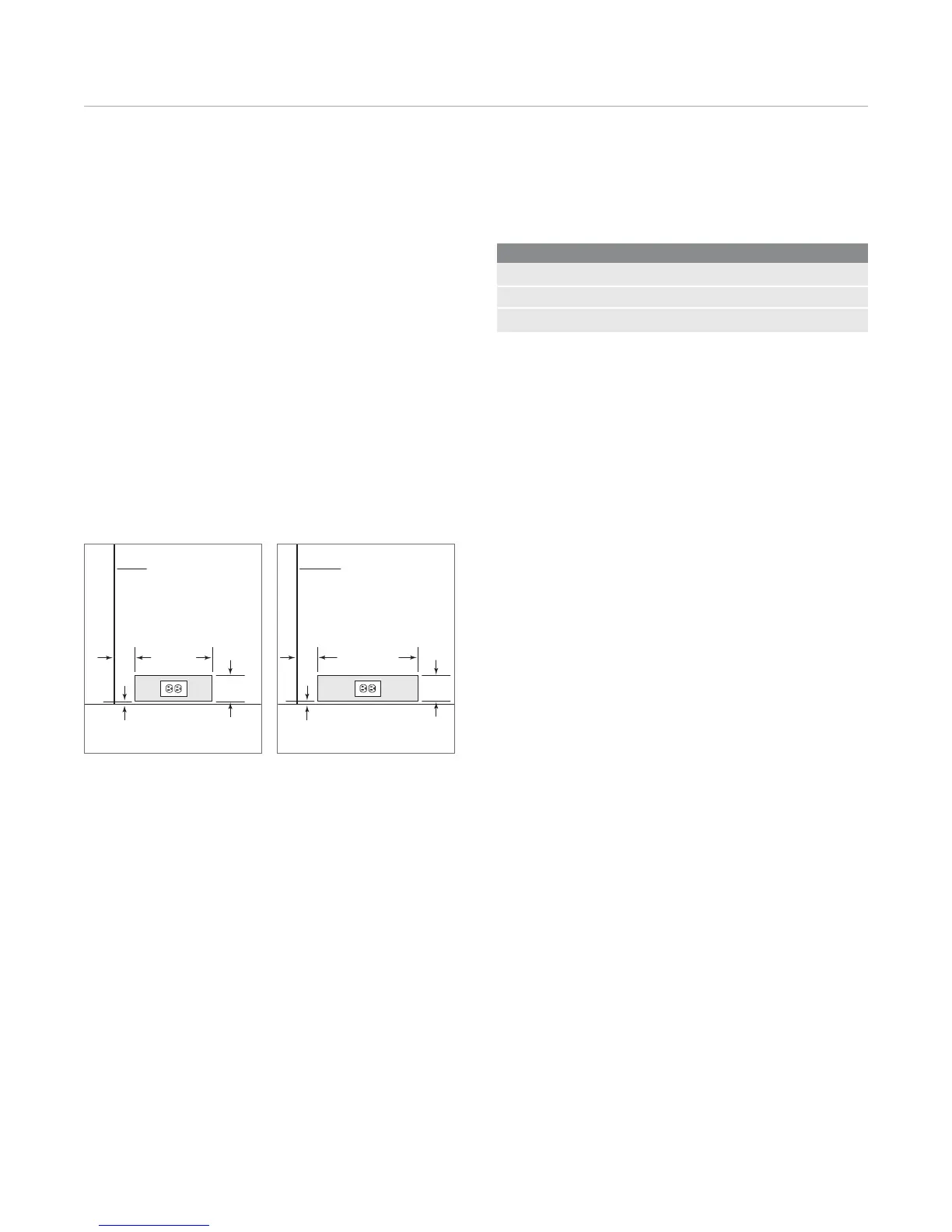

The electrical supply should be located within the shaded
area shown in the illustrations. Follow the National
Electrical Code and local codes and ordinances when
installing the receptacle. A separate circuit, servicing only
this appliance, is required. A ground fault circuit inter-
rupter (GFCI) is not recommended and may cause inter-
ruption of operation.
IMPORTANT NOTE: It is critical that the electrical outlet be
located within the shaded area shown so it does not inter-
fere with installation of the anti-tip bracket. It must be
flush with the back wall and positioned with the grounding
prong to the right of the thinner blades.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
13"
(330)
1
/
4
"
(6)
4
1
/
2
"
(
114
)
LEFT SIDE
OF OPENING
FLOOR
2
1
/
2
"
(64)
FRONT VIEW
27" (686) models. 36" (914) models.
17
1
/2" (445)
4
1
/2"
(
114
)
FRONT VIEW
FLOOR
1
/4"
(6)
LEFT SIDE
OF OPENING
2
1
/2"
(64)
