Sub-Zero BI-36UFD

Integrated Refrigeration 63
subzero.com/specs
1
/8" (3) MINIMUM REVEAL
LINE OF INTERFERENCE
SIDE MOLDING AND
INSTALLATION HARDWARE
INTEGRATED DOOR CLOSED
MOUNTING BRACKET
FRAMED PANEL
LINE OF INTERFERENCE
MAXIMUM 105° OPENING
3
/4" (19)
INTEGRATED
DOOR
MAXIMUM 105° OPENING
LINE OF
INTERFERENCE

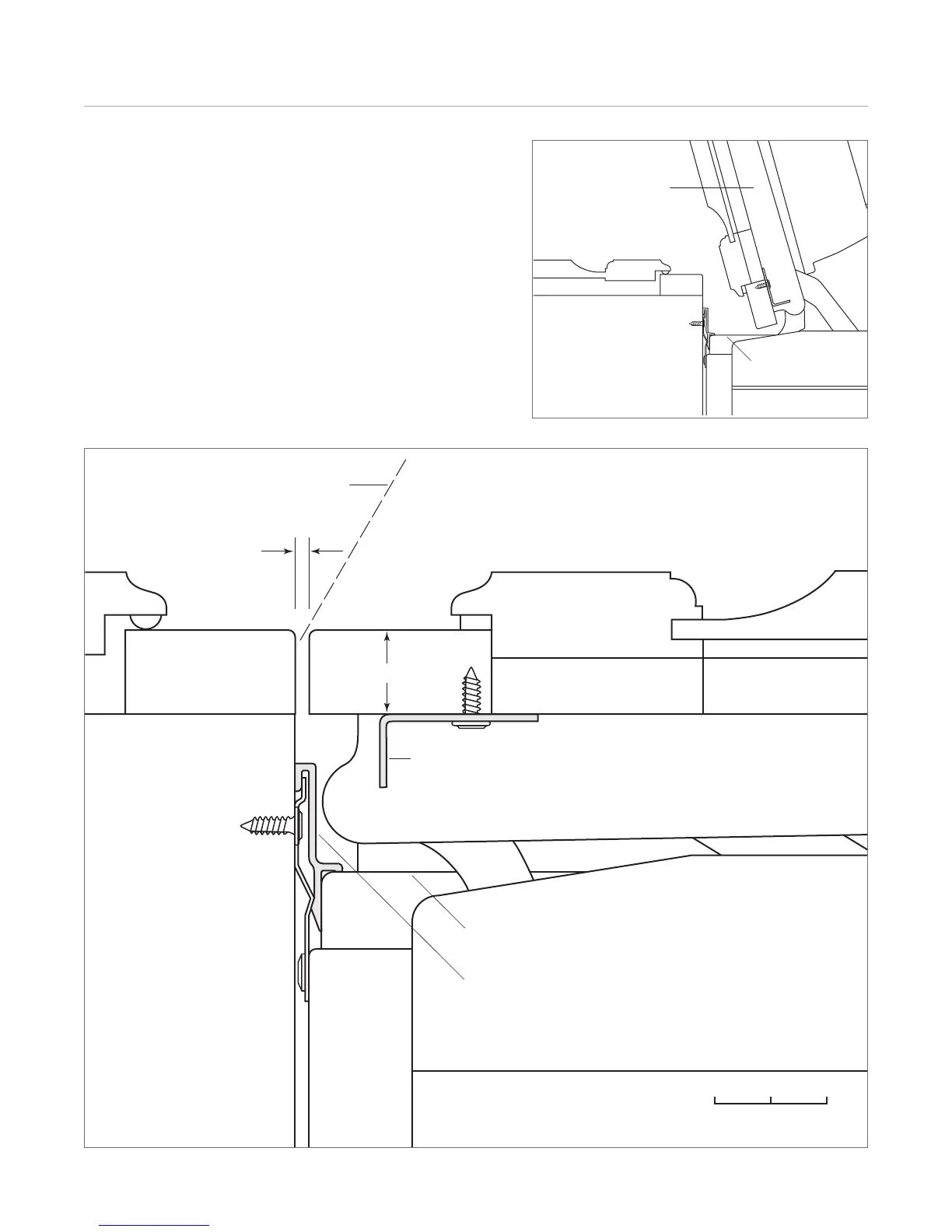

Maximum Door Opening
FULL-SCALE TEMPLATE
If the panel is thicker than
3
/4" (19), use the built-in 90°
door stop to prevent damage to the panel and face frame
at the maximum door opening.
105° OPENING
TOP VIEW—1/4 SCALE
DOOR CLOSED
TOP VIEW—FULL-SCALE
1" (25)0"
SCALE
