Sub-Zero Built-In Refrigeration User Manual

Panel Installation 32
Flush Inset Panels
I
f your customer has chosen the flush inset panel applica-
tion, make sure that the panels you are about to install
match dimensions listed in the flush inset panel specifica-
tions on pages 34–35. Additional panel design information
can be found in the Sub-Zero built-in design guide and on
our website, subzero.com.
IMPORTANT NOTE: The size of the flush inset panel is
critical. It must be sized correctly for a proper fit inside the
opening.
Overlay models are shipped without handle hardware.
The cabinet manufacturer or designer will provide handle
hardware at the job site to match the overall decorating
scheme.
To install flush inset panels, first remove the door trim
molding. For side-by-side models and the upper door for
over-and-under models, insert a screwdriver tip into the
top corner slot on the handle side and pop out the trim
molding. Remove the screws and frame. For the drawer
on over-and-under models, insert a screwdriver tip into
the slot on either side of the trim molding running along
the top of the drawer, and pop out the trim molding.
Remove the screws and frame. Refer to the illustrations
on page 25.
Sub-Zero allows a
1
/4" (6) space to slide the backing
material into place in the frame. If your material is thicker
than a
1
/4" (6), either rout an edge around the panel to get
a proper fit or mount the decorative flush inset panel on a
sheet of
1
/4" (6) thick material and insert the backing
material into the channel.
You must allow for 0.10" (3) space between the backer
board and the decorative panel, so the panel will slide
easily into the door frame.

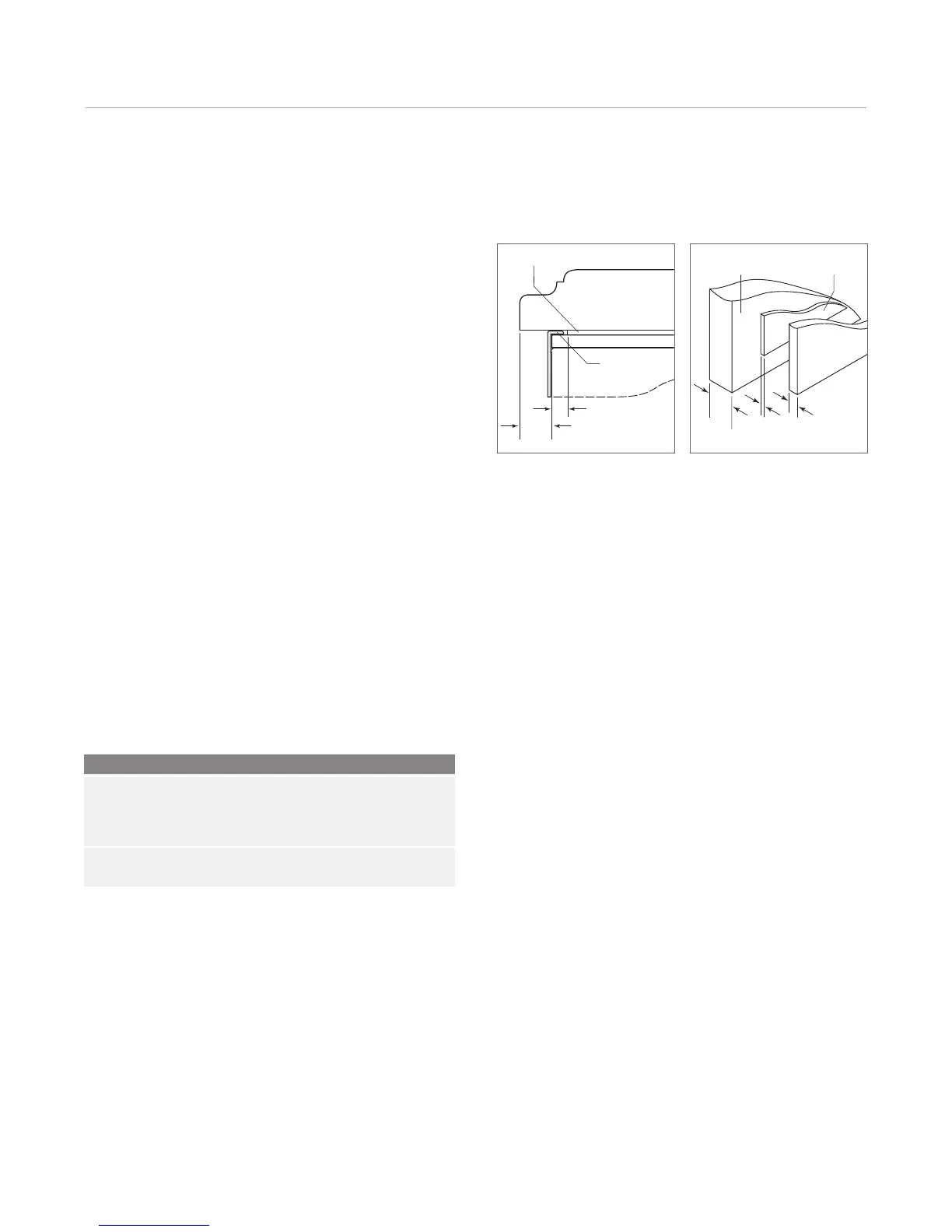

The illustrations below provide a cross section view of the
three panel assembly showing placement of the trim and a
rear view of the three panel assembly with critical dimen-
sions, standard for all models.
IMPORTANT NOTE: With the panels installed,
1
/2" (13)
minimum reveals must be kept on all sides to ensure
proper door opening and sufficient cooling of the unit.
Flush Inset Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F 75 lbs (34 kg)
All Other Flush Inset Models 50 lbs (23 kg)
Grille Panel 13 lbs (6 kg)
MIN PANEL THICKNESS
All Flush Inset Panels
5
/8" (16)
9
/16"
(14)
FLUSH INSET PANEL
SPACER PANEL
BACKER PANEL
TRIM
5
/16" (8) min
Panel assembly cross
section.
Panel assembly rear view.
1
/4" (6)
.10" (3)
FLUSH INSET
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
typical
