Sub-Zero Built-In Refrigeration User Manual

Panel Installation 35
subzero.com

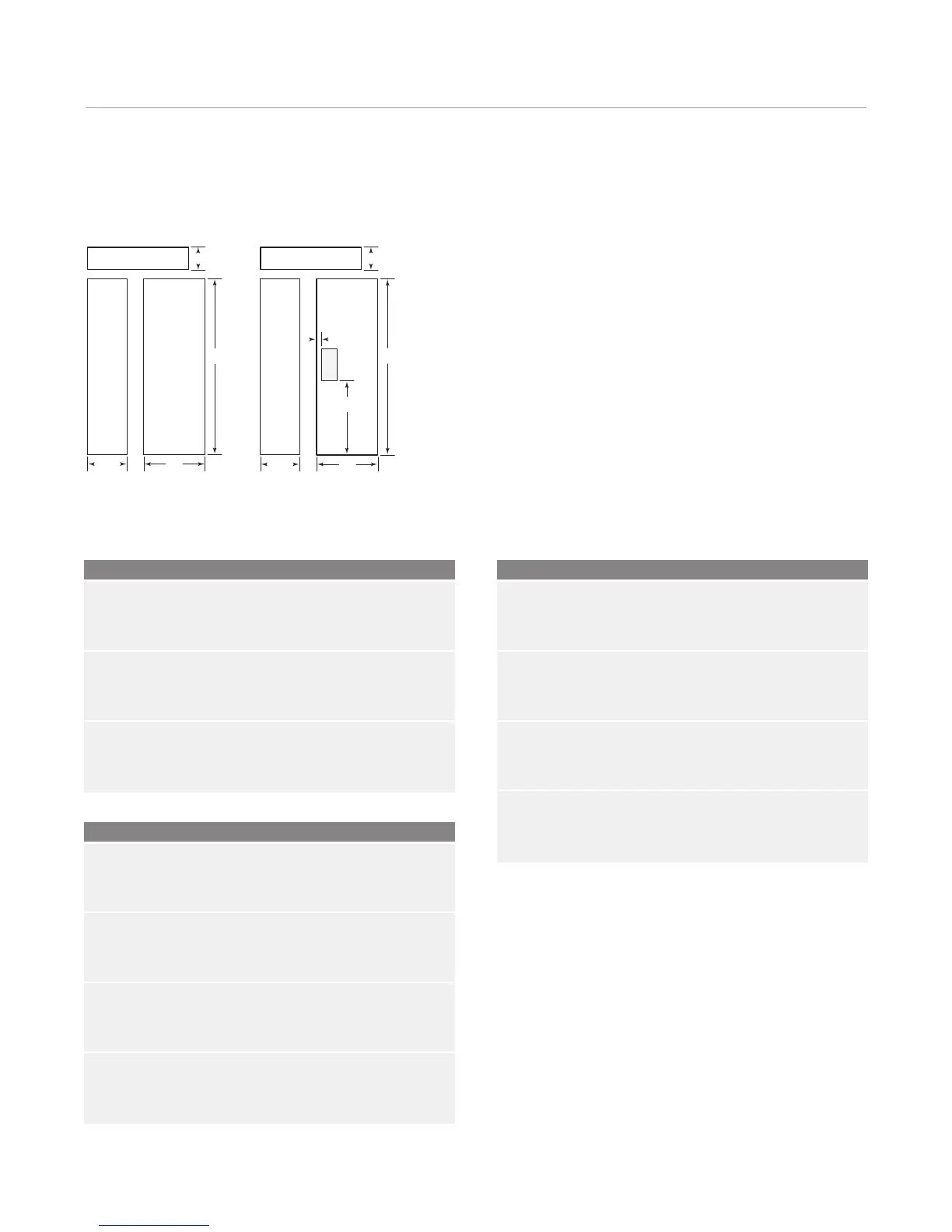

Flush Inset Panel Specifications
BI-36S / BI-42S / BI-48S BI-42SD / BI-48SD
WW
H
H H
WW
H
A
B
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1" (25) from grille panel height dimensions. For an
88" (2235) overall height, add 4" (102) to height dimensions.
Width dimensions do not vary.
Models BI-48S and BI-48SD
REFRIGERATOR WH
Flush Inset Panel 29
1
/4" (743) 69
3
/4" (1772)
Spacer Panel 27
7
/8" (708) 68
15
/16" (1751)
Backer Panel 28
1
/2" (724) 69
9
/16" (1767)
FREEZER WH
Flush Inset Panel 19
1
/2" (495) 69
3
/4" (1772)
Spacer Panel 18
1
/8" (460) 68
15
/16" (1751)
Backer Panel 18
3
/4" (476) 69
9
/16" (1767)
GRILLE WH
Flush Inset Panel 49" (1245) 9
1
/4" (235)
Spacer Panel 47
1
/8" (1197) 8
5
/16" (211)
Backer Panel 47
3
/4" (1213) 8
15
/16" (227)
DISPENSER (BI-48SD) WH
Cut-Out 5
7
/8" (149) 12
7
/16" (316)
AB
Cut-Out Location 2" (51) 28
13
/16" (732)
Models BI-42S and BI-42SD
REFRIGERATOR WH
Flush Inset Panel 25
9
/16" (649) 69
3
/4" (1772)
Spacer Panel 24
3
/16" (614) 68
15
/16" (1751)
Backer Panel 24
13
/16" (630) 69
9
/16" (1767)
FREEZER WH
Flush Inset Panel 17
3
/16" (437) 69
3
/4" (1772)
Spacer Panel 15
13
/16" (402) 68
15
/16" (1751)
Backer Panel 16
7
/16" (418) 69
9
/16" (1767)
GRILLE WH
Flush Inset Panel 43" (1092) 9
1
/4" (235)
Spacer Panel 41
1
/8" (1045) 8
5
/16" (211)
Backer Panel 41
3
/4" (1060) 8
15
/16" (227)
DISPENSER (BI-42SD) WH
Dispenser Cut-Out 5
7
/8" (149) 12
7
/16" (316)
AB
Cut-Out Location 2" (51) 28
13
/16" (732)
Model BI-36S
REFRIGERATOR WH
Flush Inset Panel 20
9
/16" (522) 69
3
/4" (1772)
Spacer Panel 19
3
/16" (487) 68
15
/16" (1751)
Backer Panel 19
13
/16" (503) 69
9
/16" (1767)
FREEZER WH
Flush Inset Panel 16
3
/16" (411) 69
3
/4" (1772)
Spacer Panel 14
13
/16" (376) 68
15
/16" (1751)
Backer Panel 15
7
/16" (392) 69
9
/16" (1767)
GRILLE WH
Flush Inset Panel 37" (940) 9
1
/4" (235)
Spacer Panel 35
1
/8" (892) 8
5
/16" (211)
Backer Panel 35
3
/4" (908) 8
15
/16" (227)
