Sub-Zero Built-in Series Installation Guide

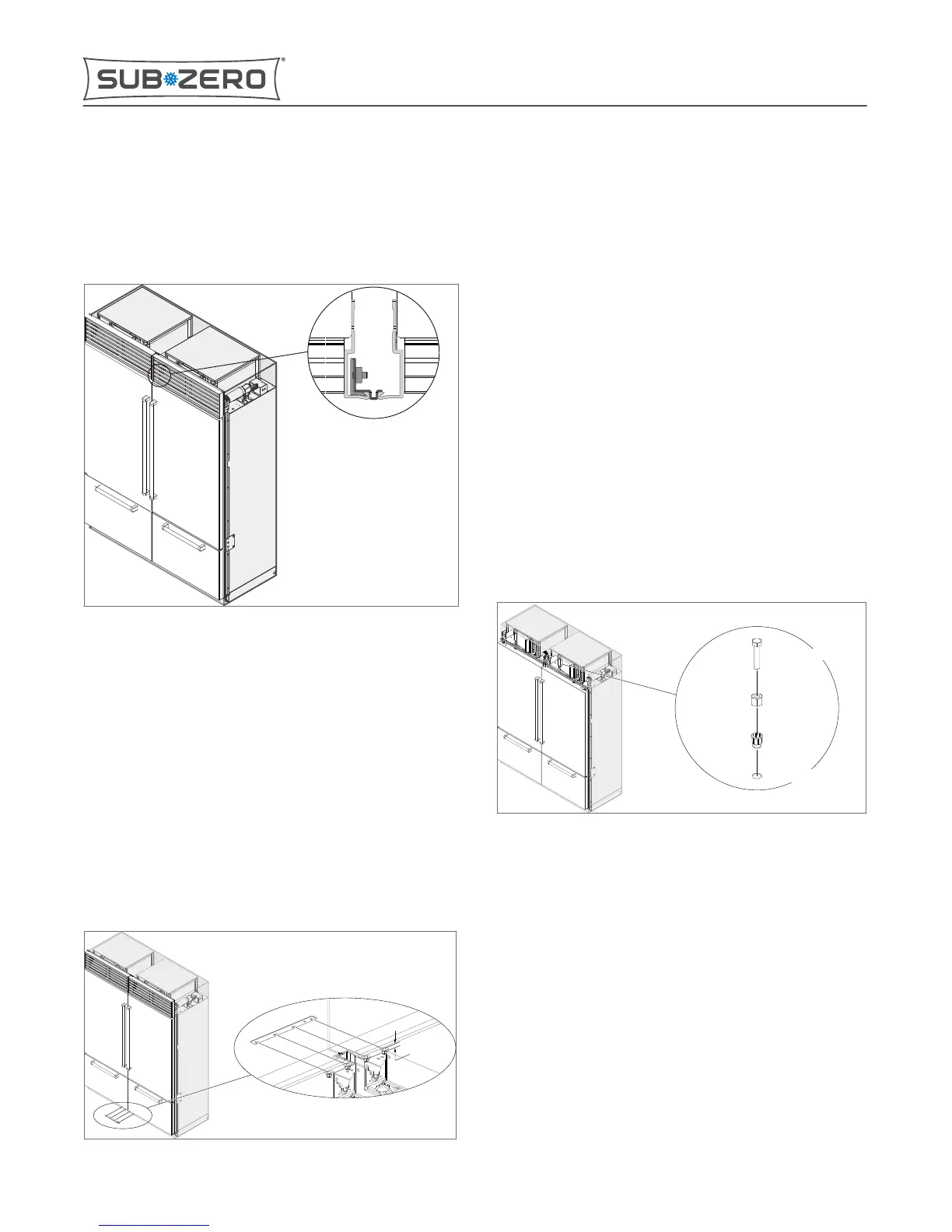

INSTALL THE SECOND UNIT TO THE RIGHT OF THE FIRST
Install, level, and align the unit until its main frame
bumps against the flange of the center trim piece, and
the bottom of the main frame aligns with the bottom of
the center trim piece.
Top View of
Main Frames
with Center
Trim Installed
JOIN THE UNITS TOGETHER AT THE BOTTOM
1
Using a
1
/
2
" wrench, install or adjust the bolts at the
bottom adjoining cor
ners of the appliances so that
there is a
1
/
8
" (3 mm) to
1
/
4
” (6 mm) gap between the
bolt heads and the unit shell bottom.
▪
For All-Refrigerator and All-Freezer Models:
Loosen the four bolts (two for each unit).
▪
For Over/Under Models: Install four
5
/
16
” ×
3
/
4
”
thread-forming screws (two for each unit).
2
Align the four notches of the dual-installation bottom
bracket with the four bolts at the bottom adjoining
corners of the appliances.
3
Push the bracket into position.
4
Tighten the bolts.
1
/
8
”-
1
/
4
”
Bottom View of Bolts and Bracket
INSTALL THE THREADED INSERTS AT THE TOP (FOR OVER/
UNDER MODELS)
Note: For all-refrigerator and all-freezer models, the
threaded inserts are already installed at the top. Skip these
instructions.
1
Open both grilles, and locate the hexagonal holes at
the top adjoining corners of the units (two for each
unit).
2
For each of the hexagonal holes:
a) Use a small screwdriver or similar tool to remove
the foam insulation from each hole to a depth of no
more than
1
/
2
” (13 mm).
b) Screw the thread insert installation tool into a
threaded insert.
c) Position the threaded insert over one of the
hexagonal holes, and tap the threaded insert into
the hole.
d) Using a
1
/
2
" wrench at the tool bolt top and a
9
/
16
”
open-end wrench at the collar, spin the tool bolt
clockwise while holding the collar stationary. Stop
when it will spin no further.
e) Remove the tool from the insert.
(Grilles removed
for clarity)
Tool Bolt
Tool Collar
Insert
Hexagonal Hole
Built-In Series Dual Installation Kit
subzero.com 800.222.7820
Page 3 of 4
