Sub-Zero Built-in Series

Electronic Control System
3-35
#7019014 - Revision A - October, 2010
Built-In (BI) Series
Built-In (BI) Series
PURE AIR WARMER COLDER WARMER COLDER ALARM POWER MAX ICE ICE MAKER LIGHTS

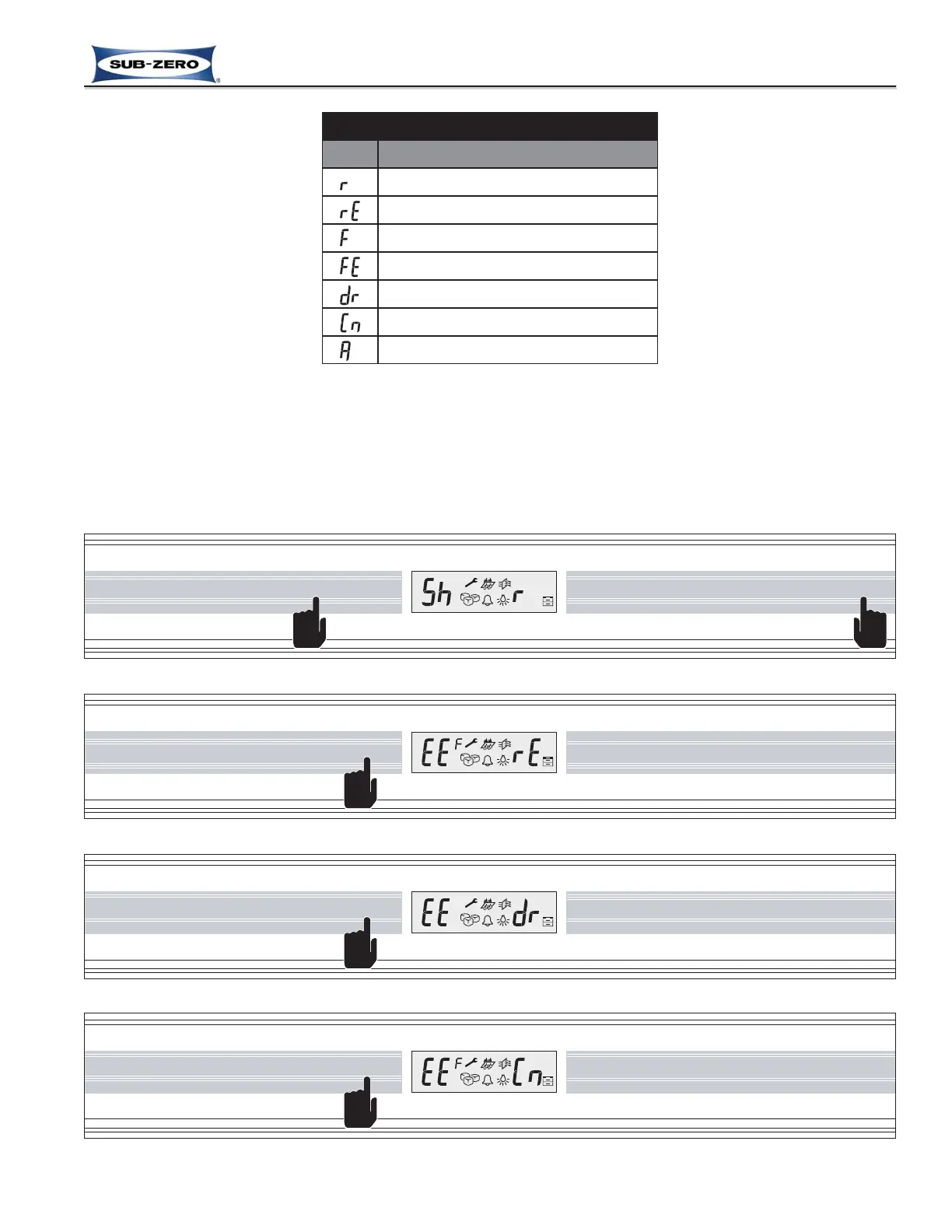

Figure 3-63. If Initiating Diagnostic Mode and “SH” and “r” appears in LCD, unit is in Show Room Mode
PURE AIR WARMER COLDER WARMER COLDER ALARM POWER MAX ICE ICE MAKER LIGHTS
Figure 3-64. If “EE” appears at Left in LCD During Diagnostic Mode, That Thermistor or its wiring is faulty
ADDITIONAL DIAGNOSTIC MODE NOTES:
• If “Sh” and “r” appear in the LCD when initiating Diagnostic Mode (See Figure 3-63), the unit is in Showroom Mode
which was covered earlier in this section.
• If “EE” is observed in the left display area during Diagnostic Mode, the thermistor in that location is open, shorted,
unstable, or not present (See Figure 3-64).
• There is currently no thermistor in the drawers, so “EE” will appear at left of the “dr” (See Figure 3-65).
• There is currently no thermistors on the condenser, so “EE” will appear at left of the “Cn” (See Figure 3-66).
• The ambient thermistor is part of the control board. It is not a separate component.
Refrigerator Compartment
Refrigerator Evaporator
Freezer Compartment
Freezer Evaporator
Refrigerator Drawers (Not Active)
Condenser (Not Active)
CODE LOCATION
THERMISTOR LOCATION CODE TABLE
Ambient
PURE AIR WARMER COLDER WARMER COLDER ALARM POWER MAX ICE ICE MAKER LIGHTS
Figure 3-65. Currently no Thermistor in Drawer Area, so “EE” will Appear to the Left of the “dr”
PURE AIR WARMER COLDER WARMER COLDER ALARM POWER MAX ICE ICE MAKER LIGHTS
Figure 3-66. Currently no Thermistor on Condenser, so “EE” will Appear to the Left of the “Cn”
