DOOR TENSION ADJUSTMENT
The door tension can be adjusted to accommodate multiple
panel weights. Panel weight can not exceed 16 lb
(7 kg).
Turn the adjustment nut clockwise to increase tension and
counterclockwise to decrease tension. Refer to the illustra-
tion below.
KICKPLATE INSTALLATION
The kickplate must be removable for service. The oor
cannot interfere with removal.
1 Finger-tighten the adjustment bracket nuts.
2 Place the kickplate on the magnets.
3 Make in-and-out adjustments. Refer to the illustration
below.
4 Remove the kickplate, then wrench-tighten the bracket
nuts.
5 Reinstall the kickplate.
TENSION
ADJUSTMENT
NUT
IN-AND-OUT
ADJUSTMENT
BRACKET
NUTS
IN-AND-OUT
ADJUSTMENT
KICKPLATE

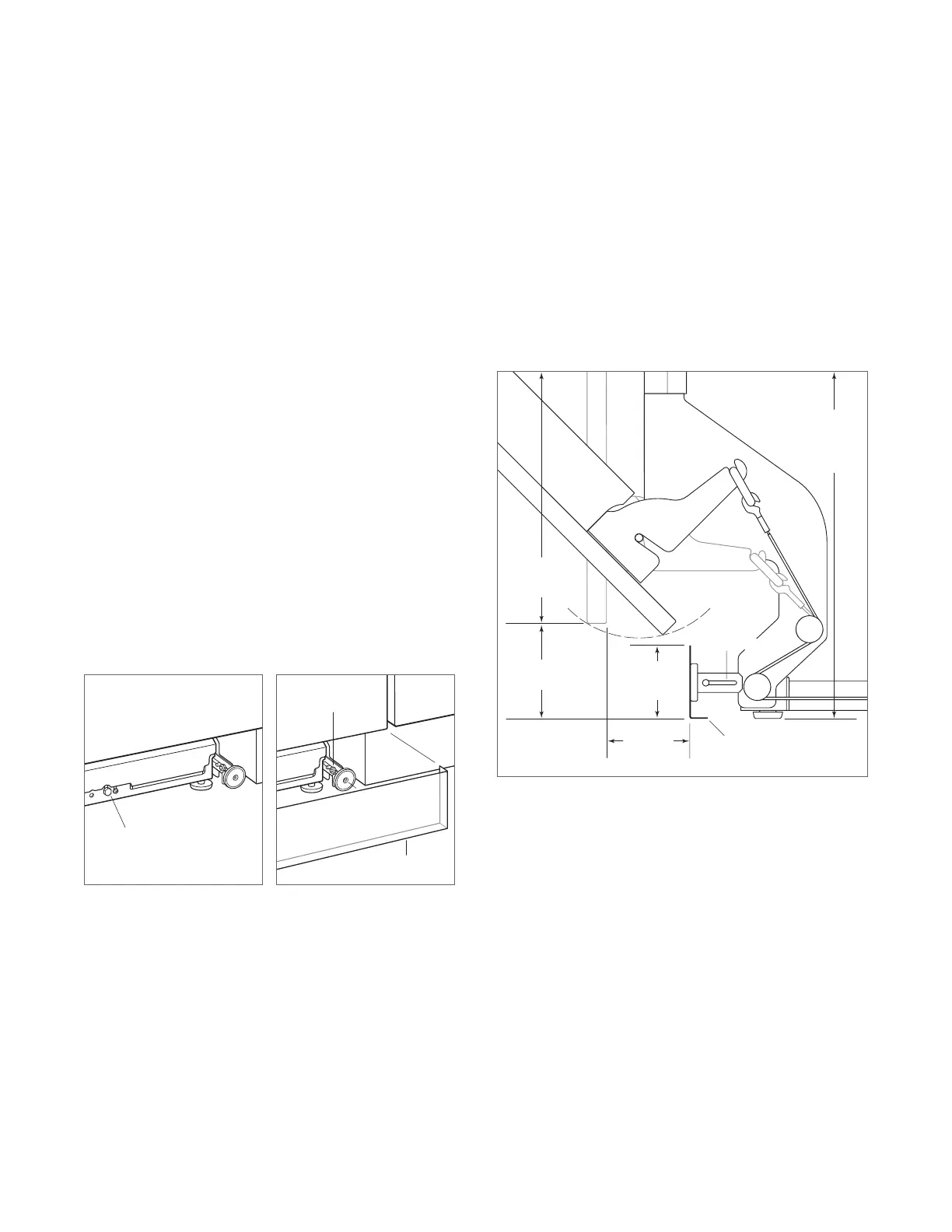

Door tension adjustment Kickplate adjustment
KICKPLATE CLEARANCE
It is possible to adhere a decorative kickplate to the existing
kickplate. The height and thickness can vary, provided it
does not impede the door panel rotation. Refer to the illus-
tration below.
2
3
/4" (70)
KICKPLATE
HEIGHT
FACTORY KICKPLATE
30
3
/8" (772)
TYPICAL PANEL
HEIGHT
3
1
/4"
(83)
33
3
/4"
(857)
MIN
PRODUCT
HEIGHT
3
1
/8" (79)
MAX DEPTH
1
3
/4" (44)
DEPTH
ADJUSTMENT
Toe kick area (side view)

Sub-Zero COVE Specifications

General

Brand	Sub-Zero
Model	COVE
Category	Dishwasher
Tub Material	Stainless Steel
Energy Star Certified	Yes
Depth	24 inches
Width	24 inches
Height	34.5 inches
