Sub-Zero IC-27R Installation Guide

Integ rated Installation 16
Panel Consi derations
DOOR PANEL HEIGHT
The height of the door panel can extend beyond the
typical panel height, provided you do not exceed the panel
weight limit.
A minimum finished height of 80"
(2032) is required for 27"
(686) and 36" (914) tall models. For the 27" (686) integrated
column, a mi nimum finished h eight of 81" (2057) is required.
Therefore, when installing a t all model next to a column,
the minimum finished height is 81"
(2057). For installations
taller than 80" (2032) or 81 " (2057) , a decorative valance
will be needed to finish off the height to the finished sur-
rounding cabinet ry.

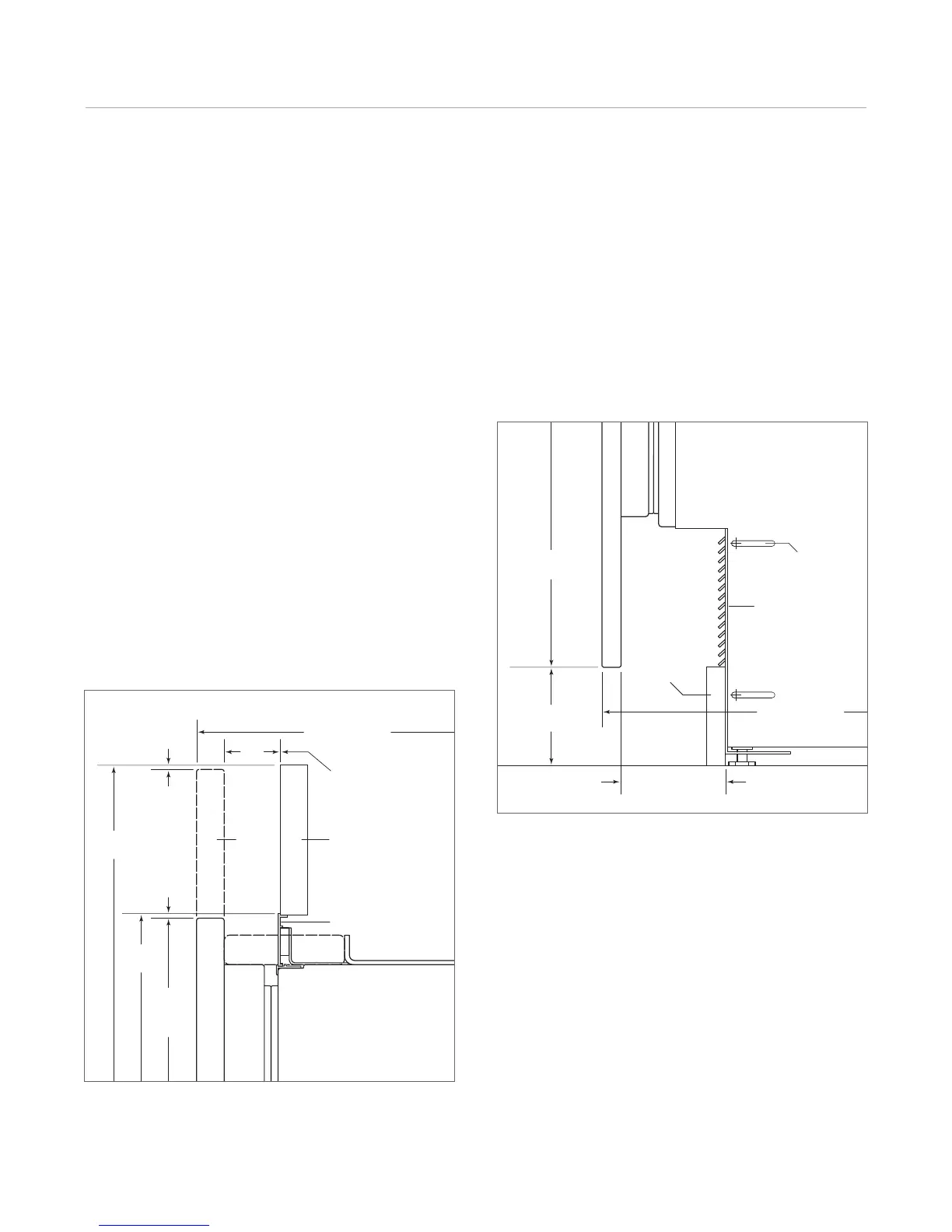

The illustration below shows how the panel may be
extended and what you need to consider to finish the area
behind the door panel.
IMPORTANT NOTE: The decorative valance use d to finish
the area behind the do or panel must stay behind the front
plane of the finished molding.
INTEGRATED UNIT
(SIDE VIEW)
1
1
/2"
(38)
25" (635) TO WALL
HINGE
DECORATIVE VALANCE
CANNOT EXTEND BEYOND
THE FRONT OF THE MOLDING
DECORATIVE VALANCE
REMOVABLE MOLDING
TYPICAL
HEIGHT
OF DOOR
PANEL
MINIMUM
HEIGHT
OVERALL
HEIGHT
1
/8"(3)
1
/8"(3)
DOOR
PANEL
25" (635) TO WALL
HEIGHT
OF PANEL
I
NTEGRATED UNIT
(SIDE VIEW)
2
5
/8" (67) TO 4" (102)
BASE MOLDING
MUST BE
R
EMOVABLE—
4" (102) MAX
HEIGHT
KICKPLATE/GRILLE
CAN BE ADJUSTED
FORWARD
KICKPLATE/GRILLE
4" (102) TO 9" (229)
FROM FLOOR
TOE KICK CLEARA NCE
The toe kick clearance can vary with the height of the
panel. You must keep a minimum space of 4 "
(102) clear
below the bottom edge of the panel for proper venting. In
addition, any decorative base molding must be removable
and cannot exceed 4"
(102) in height.
Upper valence.
Kickplate/grille area.
