Sub-Zero UC-15I Service & Parts Manual

1, 1a
7a
6
2
10
9
3
2a
1b
2
#7014804 - Revision A -September, 2009
Parts Manual
Model UC-15I (Undercounter Ice Machine)

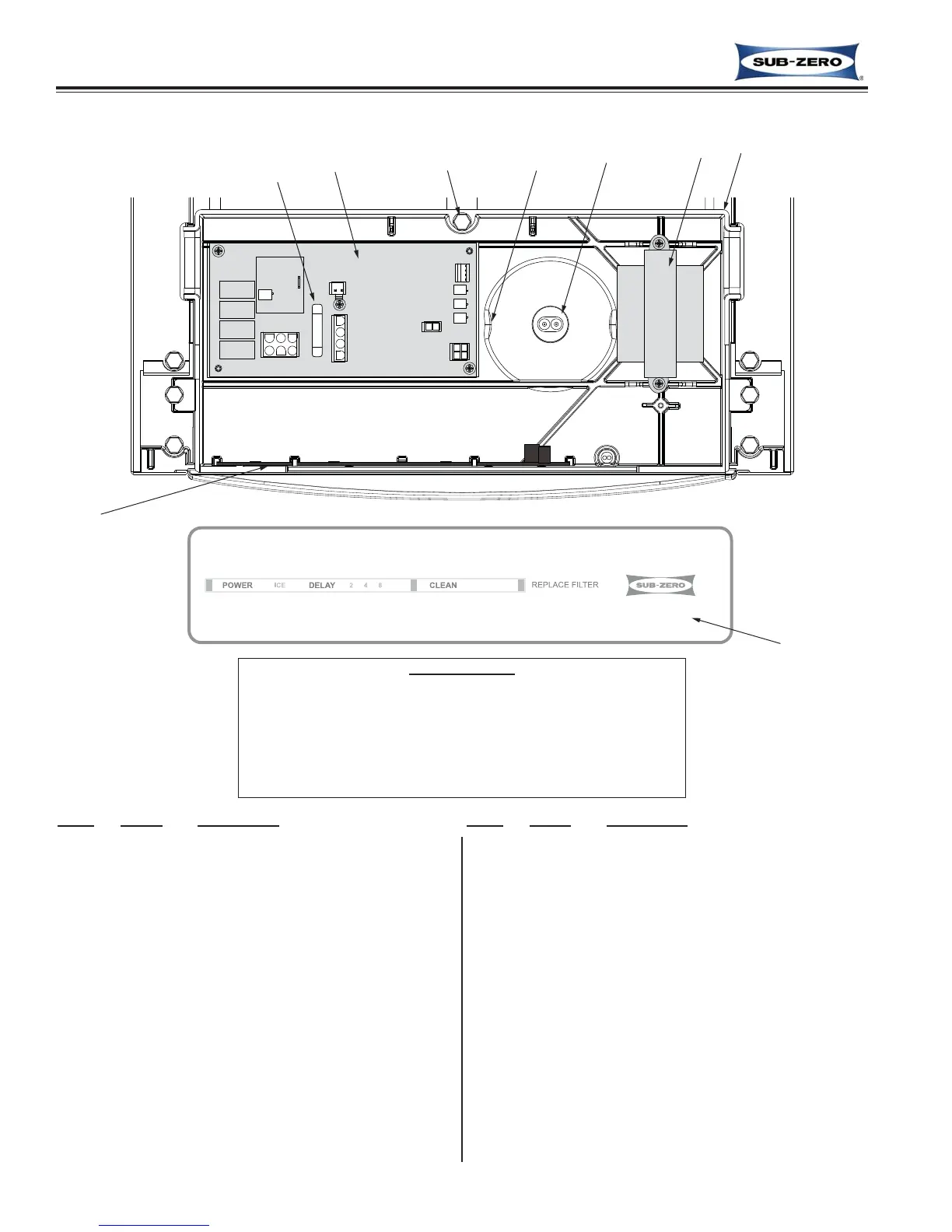

UC-15I CONTROL BOX AREA
1 7013048 Control, Board Main Svce
1a 7013089 Control, Board Pkg Svce
(Includes Control Board & User Interface Board)
1b 7013093 Control, Board 10 Amp Fuse Svce
2 7013049 Control, Board User Interface
2a 7013083 Label, Control Board Svce
3 7013047 Transformer, Svce
4NA
5NA
6 7013476 Control Box & Label Svce
7NA
7a 7013107 Screw, Svce
Ref # Part # Description Ref # Part # Description
8a NA
8b NA
9 7013053 Lampholder, Svce
10 7013055 Cover, Bin Light Svce
NOT PICTURED:
11 7013050 W/H, Service
12 7013052 Control, Box Cover Svce
13 7013051 Switch, Proximity Svce
14 7013056 W/H, High Voltage
15 7014846 W/H, Low Voltage
16 7013054 Lamp, Light Bulb Svce
NOT PICTURED
11 Wire Harness - Control Panel to Control Board
12 Control Box Cover
13 Wire Harness - Proximity Switch
14 Wire Harness, High Voltage - Harvest Valve, Water Inlet Valve
15 Wire Harness, Low Voltage - Toggle Switch, Thermistor
16 Light bulb
