Sub-Zero UC-15I Service & Parts Manual

6
#7014804 - Revision A -September, 2009
Parts Manual
Model UC-15I (Undercounter Ice Machine)
13a
13b
14
11
4
10
6
2
3
9
1
7
5
8

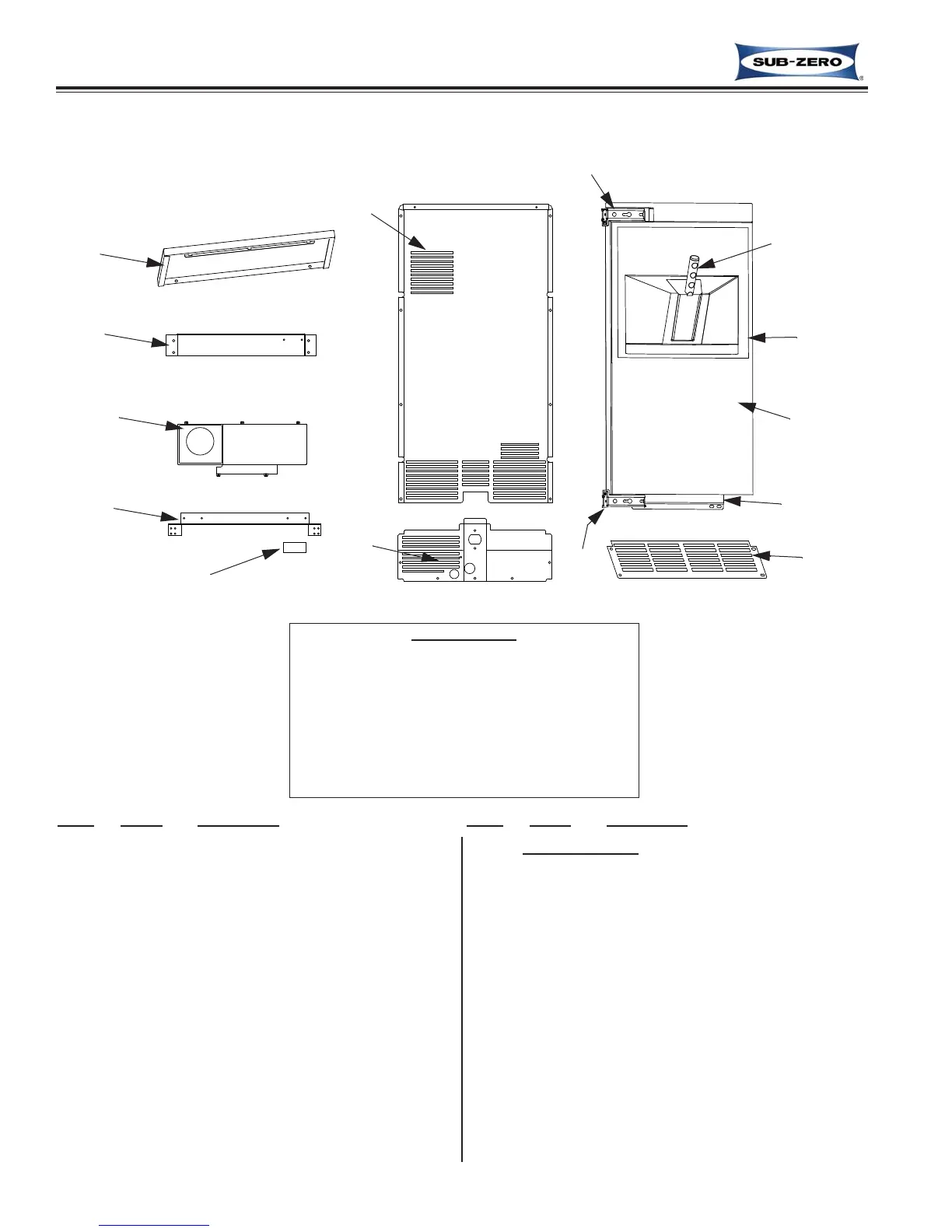

UC-15I PANELS
1 7013080 Cover, Top Svce
2 7013086 Panel, Back Svce
3 7013087 Panel, Back Utility Svce
4 7013216 Door Assy, Front Svce
5 7013660 Cover Assy, Lower Svce
6 7013399 Kickplate, Black Svce
7013395 Kickplate, Stainless Steel Svce
7 7013081 Frame, Top Front Rail Svce
8 7013082 Frame, Bottom Front Rail Svce
9 7013206 Slide, Bottom Svce
10 7013077 Trim, Door Bottom Svce
11 7013084 Seal, Door Svce
12 NA
13a 7013485 Hinge, Outdoor Svce (Top RH, Bot LH)
13b 7013486 Hinge, Outdoor Svce (Bot RH, Top LH)
14 7013475 Door, Ice Scoop Svce
NOT PICTURED
15 Bin Front with Heater Assy
16 Door Panel Drilling Template
17 Hinge Stop
18 Right Hinge Cover
19 Left Hinge Cover
20 Vertical Door Panel Mounting Bracket
21 Filler Panel for 18” Opening (Sales Accessory)
22 Stainless Steel Front Panels (Sales Accessory)
Ref # Part # Description Ref # Part # Description
NOT PICTURED:
15 7013478 Kit, Heater & SS Panel Svce
16 7014849 Template, Door Panel Svce
17 7013076 Hinge, Stop Svce
18 7013078 Cover, Hinge Right Svce
19 7013079 Cover, Hinge Left Svce
20 7013413 Bracket, Door Panel Svce
21 7012363 Filler, 15” to 18” (Sales Accessory)
22 7006800 Pnl, 15X30.375, PH
7006801 Pnl, 17.75X30.375, PH
7006876 Pnl, 15X30.375, CH
7006877 Frnt Pnl, 18” 315I SS CH
7007198 Pnl, 15X30.375,OBR,CLSC,TH
7007199 Pnl, 17.75X30.375,OBR,CLSC,TH
