Sub-Zero UC-15I Service & Parts Manual

5
#7014804 - Revision A -September, 2009
Model UC-15I (Undercounter Ice Machine)
Parts Manual
10
4
3
7
5
11
8
9
2
6
12

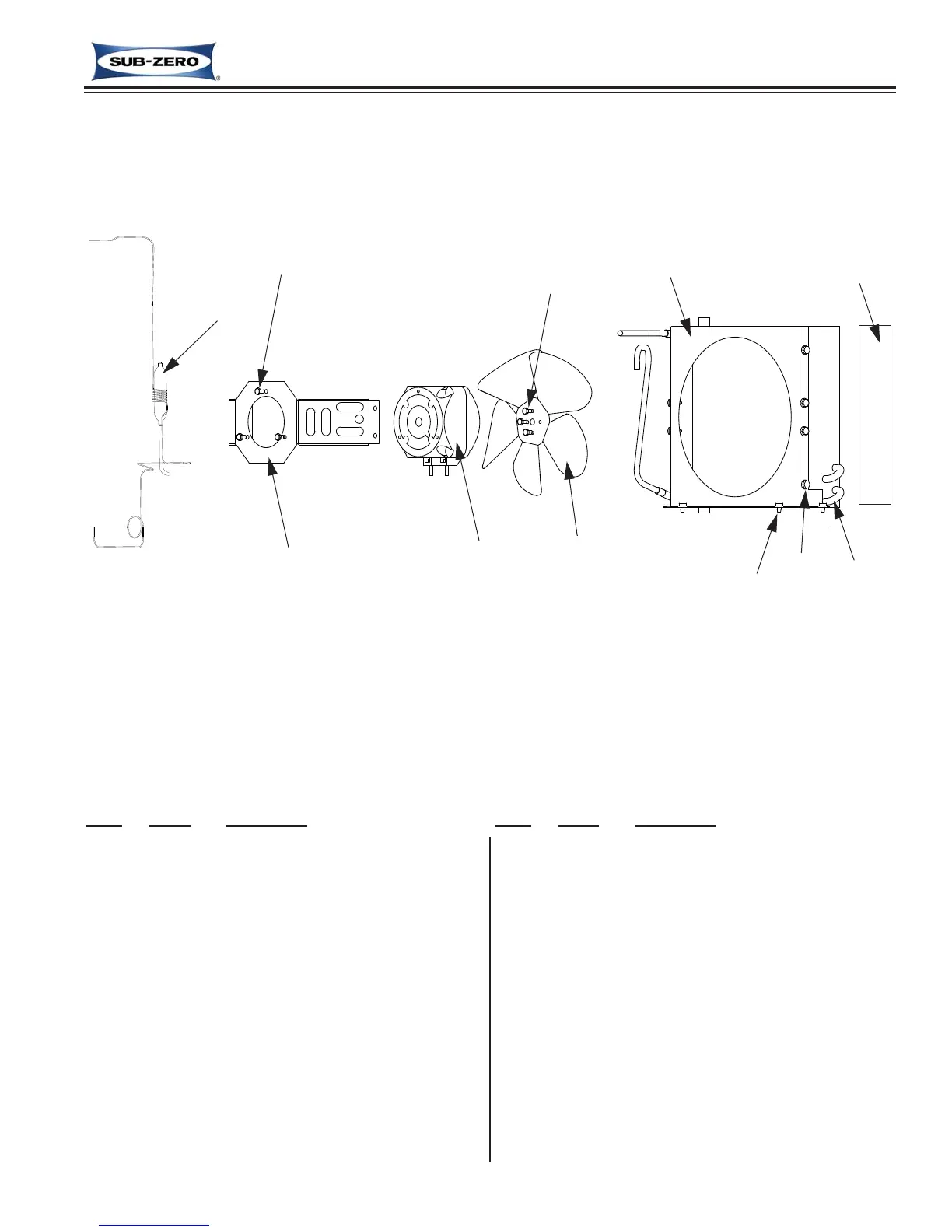

UC-15I REFRIGERATION COMPARTMENT - CONDENSING COMPONENTS
1NA
2 7013203 Condenser, Air Svce
3 7013072 Motor, Fan Svce (Outdoor Use Only)
7014173 Motor, Fan Indoor Svce (Indoor Only)
4 7013096 Fan Blade, Svce
5 7013065 Heat Exchanger, Svce
6 7013117 Shroud, Fan Svce
Ref # Part # Description Ref # Part # Description
7 7013116 Bracket, Condenser Fan Svce
8 7013118 Bracket, Wire Mount Svce
9 7013105 Screw, Svce (Bracket to Shroud)
10 7013073 Baffle, Air Svce
11 7013106 Screw, Svce (Motor to Bracket)
12 7013108 Screw, Svce
