Sub-Zero UC-15I Service & Parts Manual

3
#7014804 - Revision A -September, 2009
Model UC-15I (Undercounter Ice Machine)
Parts Manual
5
1a,b
3a
3b
9
6b
6a
7
7a
7b
10
3c (not shown)
3d
4
8a,b,c,d
11
3
12

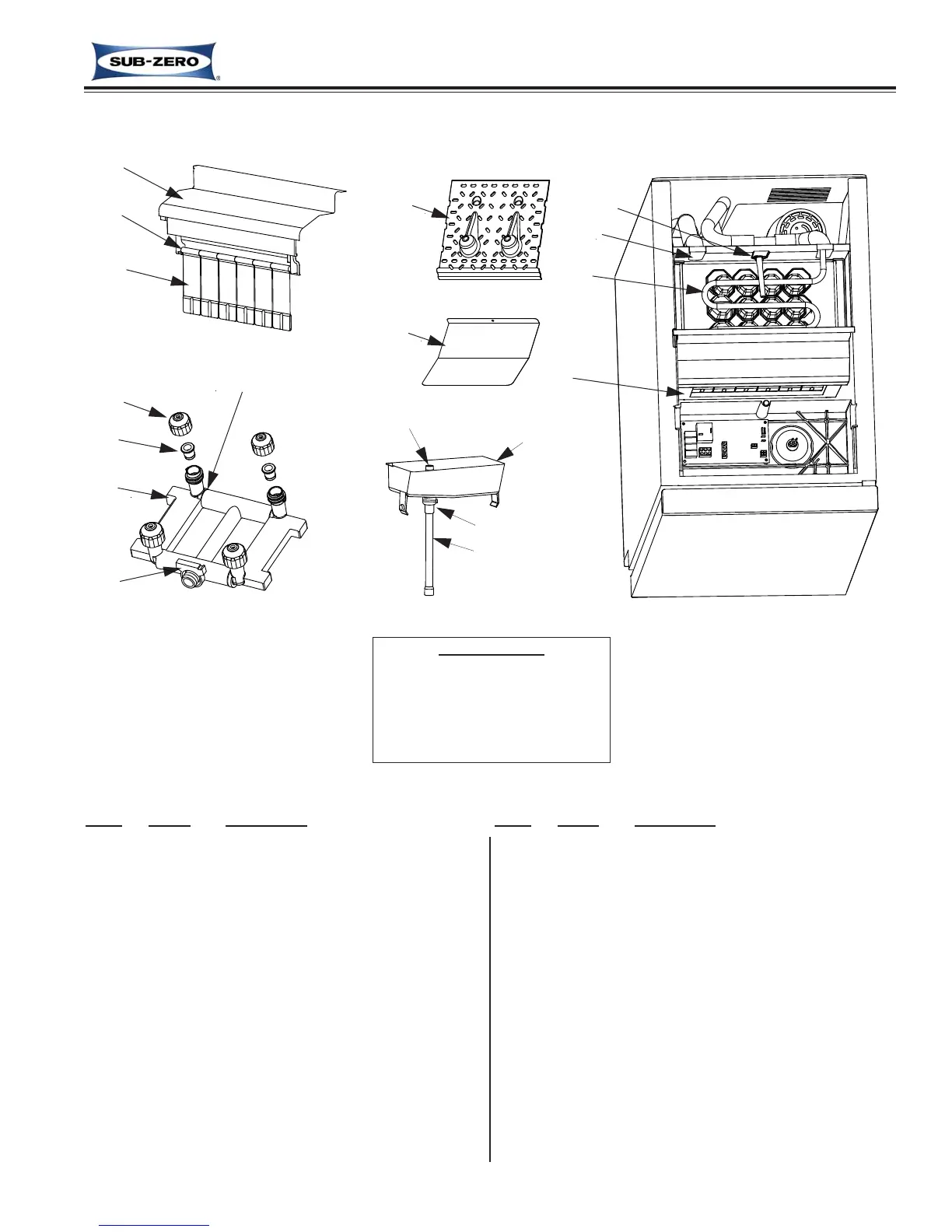

UC-15I EVAPORATOR AND ICE BIN AREAS (Inlc. Bin Thermostat and related Parts)
1a 7013097 Evap Assy, Svce
1b 7013090 Evap Assy, Heat Exchanger Svce
2NA
3 7013200 Bar, Spray Assy Svce
3a 7013101 Nozzle, Insert Svce (each)
3b 7013100 Nozzle, Svce (each)
3c 7013110 Seal, O-Rings Svce (not shown)
3d 7013115 Clamp, Spray Bar
4 7013218 Support, Ice Ramp Svce SVCE
5 7013057 Tube, Standpipe Svce
6a 7013217 Guard,Curtain Paddle Svce (6 per unit)
6b 7013059 Rod, Curtain Svce
7 7013219 Bin, Water Trough Svce
7a 7013060 Tube, Drain Trough Svce
7b 7013112 Clamp, Svce
8a 7013207 Fitting, Evap Water Inlet Svce
Ref # Part # Description Ref # Part # Description
8b 7013208 Tube, Evap Water Svce
8c 7013111 Seal, O-Rings Svce
8d 7014847 Bracket, Retaining Svce
9 7013220 Cover, Evap Svce
10 7013726 Foam, Insert Svce
11 7013659 Enclosure, Evap/Spray Bar Svce
12 7013477 Guard, Splash Shield Svce
NOT PICTURED:
13a 7013489 Bin, Thermostat Svce
(Includes Bin Thermostat Tube)
13b 7013482 Clip, Bin Svce
13c 7013209 Bracket, Svce
14 7013400 Cleaner, Metal Safe
15 7013401 Sanitizer
NOT PICTURED
13a Bin Thermostat Control
13b Bin Thermostat Clip
13c Bin Thermostat Bracket
14 Ice Machine Cleaner
15 Ice Machine Sanitizer
