Sub-Zero UC-15I Service & Parts Manual

4
#7014804 - Revision A -September, 2009
Parts Manual
Model UC-15I (Undercounter Ice Machine)
3
1a
9
1b,c,d,e
5
4
6, 6a,b,c
3
11
15
7
7a
12
13a,b
2
8, 8a-i
14
10

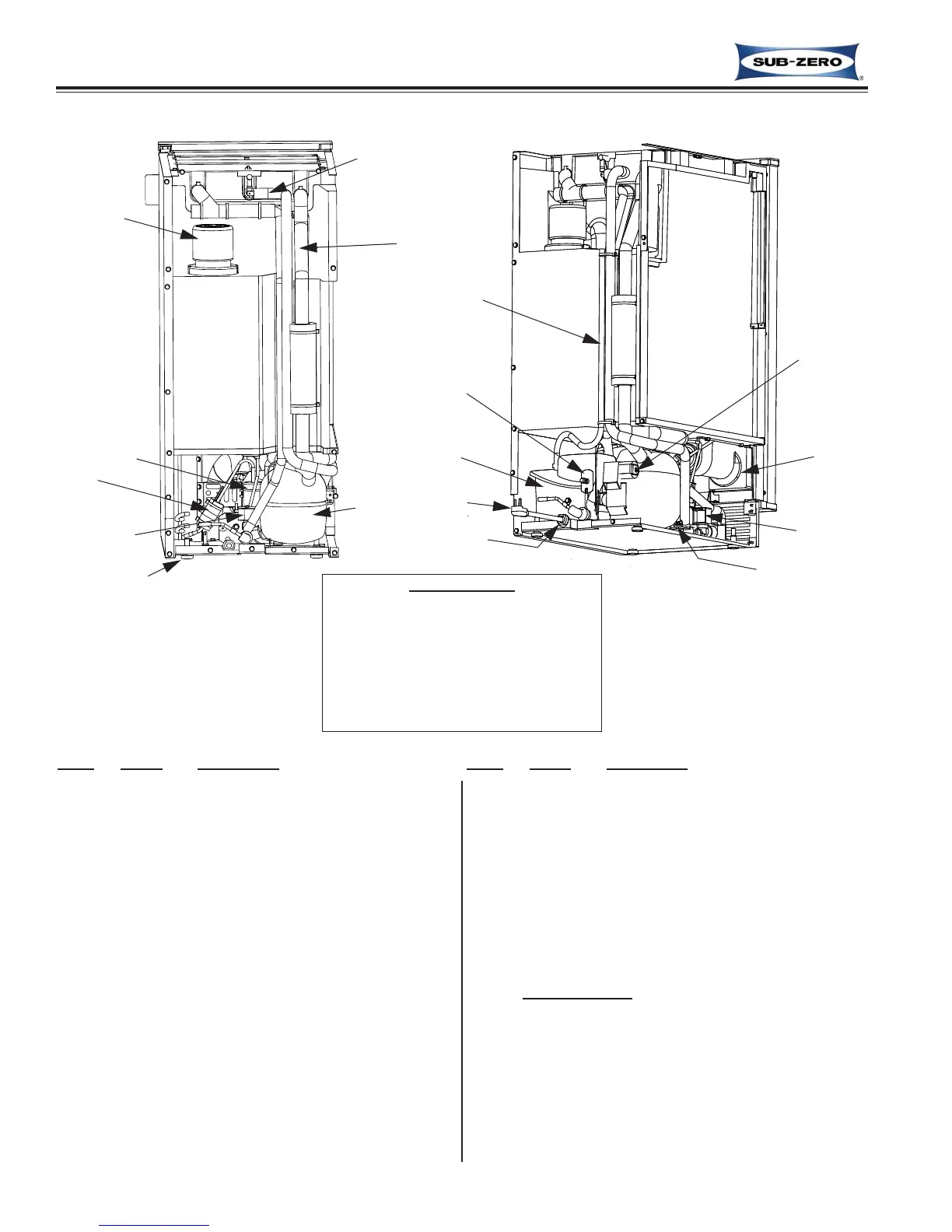

UC-15I REFRIGERATION COMPARTMENT - COMMON COMPONENTS
1a 7013091 Compressor, Drier Assy, Svce
1b 7013061 Relay, Start Svce
1c 7013204 Cover, Start Relay Svce
1d 7013062 Capacitor Start Svce
1e 7013063 Overload Protector, Svce
2 7013201 Valve, Harvest Svce
3 7013065 Heat Exchanger, Svce
4 7013202 Drier, Line Svce
5 7013196 Pump, Water (Circulating Pump)
6 7013066 Valve , Water Inlet Svce
6a 7013068 Valve, Water Inlet Bracket Svce
6b 7013067 Valve, Water Inlet Nut Svce
6c 7013069 Valve, Water Inlet Sleeve Svce (Cmprsn)
7 7013070 Cord, Power Svce
7a 7013094 Bushing, Strain Relief Svce
8 7014848 Filter, Water (Sales Accessory)
8a 7013725 Tube, Water Inlet Svce
8b 7013490 Filter, Head Svce
8c 7013046 Fitting, Svce
8d 7013071 Clamp, Svce
8e 7013205 Enclosure, Svce
8f 7013058 Tube, Adapter (Quick-Connect)
Ref # Part # Description Ref # Part # Description
8g 7013046 Fitting, Svce
8h 7013045 Tube, Holder 90 Degree Svce
8i 7013099 Tube, Water Line Svce (Filter & Evap)
9 7013197 Pump, Drain Svce
10 7013092 Thermistor, Svce
11 7013505 Tube, Spray Housing Svce
12 7013102 Fitting, Drain Svce
13a 7013114 Clip, Compressor Svce (Hairpin)
13b 7013064 Grommet, Comp Rubber Svce
14 7013487 Tube, Vent Svce
15 7013113 Leg, Leveler Svce
NOT PICTURED:
16 7013198 Tube, Drain, w/Drain Pump Svce
17 7013199 Tube, Drain, w/o Drain Pump Svce
18 7013488 Tube, Drain Svce
19a 7013479 Clamp, Spring Svce
19b 7013480 Clamp, Spring Svce
19c 7013481 Clamp, Spring Svce
20 7013095 Tube, Drain Svce
NOT PICTURED
16 Bin Drain Tube (w/Drain Pump)
17 Bin Drain Tube (w/o Drain Pump)
18 Drain Pump Discharge Tube
19a Drain Pump Clamp, 12mm ID
19b Drain Pump Clamp, 13mm ID
19c Drain Pump Clamp, 22mm ID
20 Drain Tube (19mm ID X 5’ Long)
