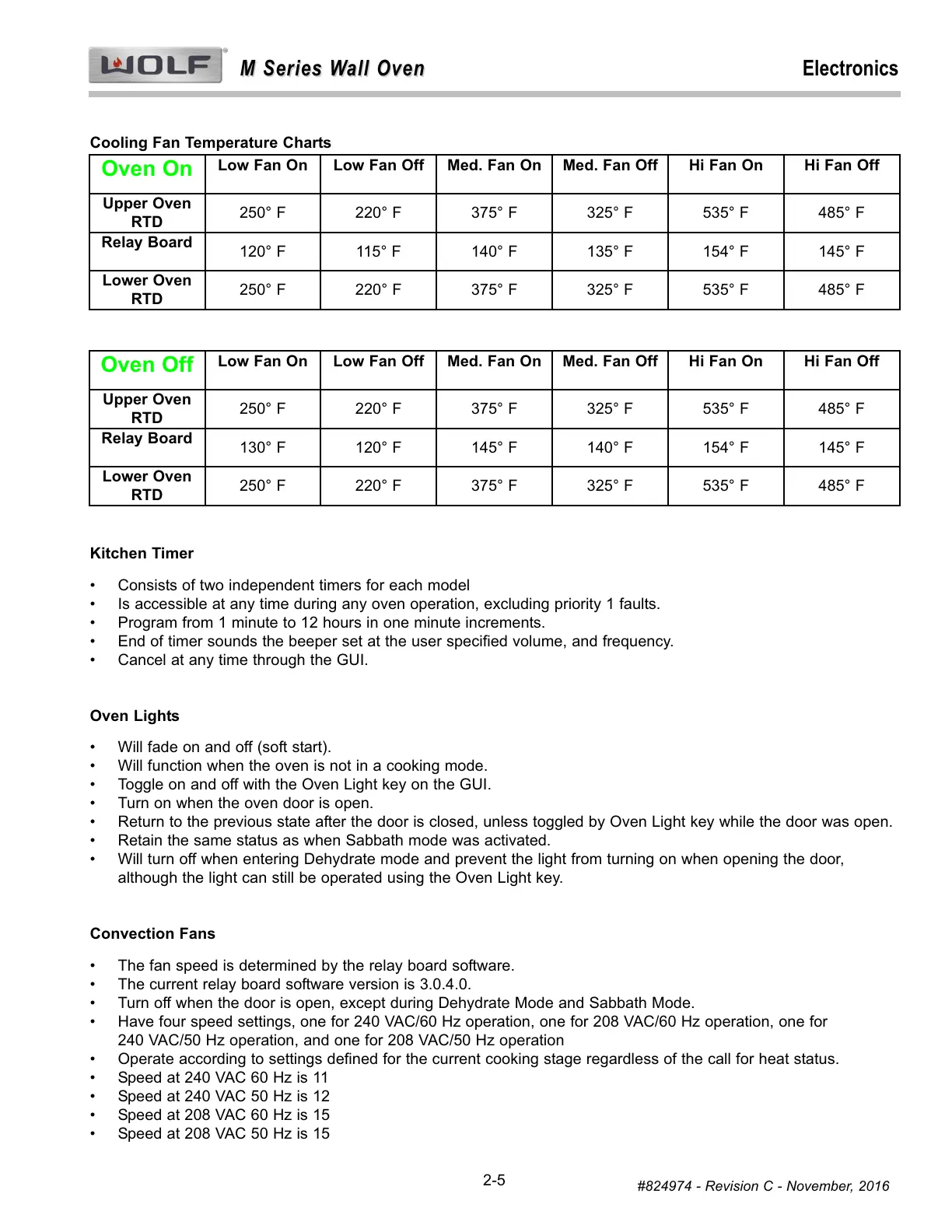

Electronics
M Series Wall Oven
M Series Wall Oven
2-5
#824974 - Revision C - November, 2016
Cooling Fan Temperature Charts
Kitchen Timer
Consists of two independent timers for each model •
Is accessible at any time during any oven operation, excluding priority 1 faults. •
Program from 1 minute to 12 hours in one minute increments. •
End of timer sounds the beeper set at the user specified volume, and frequency. •
Cancel at any time through the GUI. •
Oven Lights
Will fade on and off (soft start). •
Will function when the oven is not in a cooking mode. •
Toggle on and off with the Oven Light key on the GUI. •
Turn on when the oven door is open. •
Return to the previous state after the door is closed, unless toggled by Oven Light key while the door was open.•
Retain the same status as when Sabbath mode was activated.•
Will turn off when entering Dehydrate mode and prevent the light from turning on when opening the door,•
although the light can still be operated using the Oven Light key.
Convection Fans
The fan speed is determined by the relay board software.•
The current relay board software version is 3.0.4.0.•
Turn off when the door is open, except during Dehydrate Mode and Sabbath Mode.•
Have four speed settings, one for 240 VAC/60 Hz operation, one for 208 VAC/60 Hz operation, one for•
240 VAC/50 Hz operation, and one for 208 VAC/50 Hz operation
Operate according to settings defined for the current cooking stage regardless of the call for heat status.•
Speed at 240 VAC 60 Hz is 11•
Speed at 240 VAC 50 Hz is 12•
Speed at 208 VAC 60 Hz is 15•
Speed at 208 VAC 50 Hz is 15•
Oven On
Low Fan On Low Fan Off Med. Fan On Med. Fan Off Hi Fan On Hi Fan Off
Upper Oven
RTD
250° F 220° F 375° F 325° F 535° F 485° F
Relay Board
120° F 115° F 140° F 135° F 154° F 145° F
Lower Oven
RTD
250° F 220° F 375° F 325° F 535° F 485° F
Oven Off
Low Fan On Low Fan Off Med. Fan On Med. Fan Off Hi Fan On Hi Fan Off
Upper Oven
RTD
250° F 220° F 375° F 325° F 535° F 485° F
Relay Board
130° F 120° F 145° F 140° F 154° F 145° F
Lower Oven
RTD
250° F 220° F 375° F 325° F 535° F 485° F
