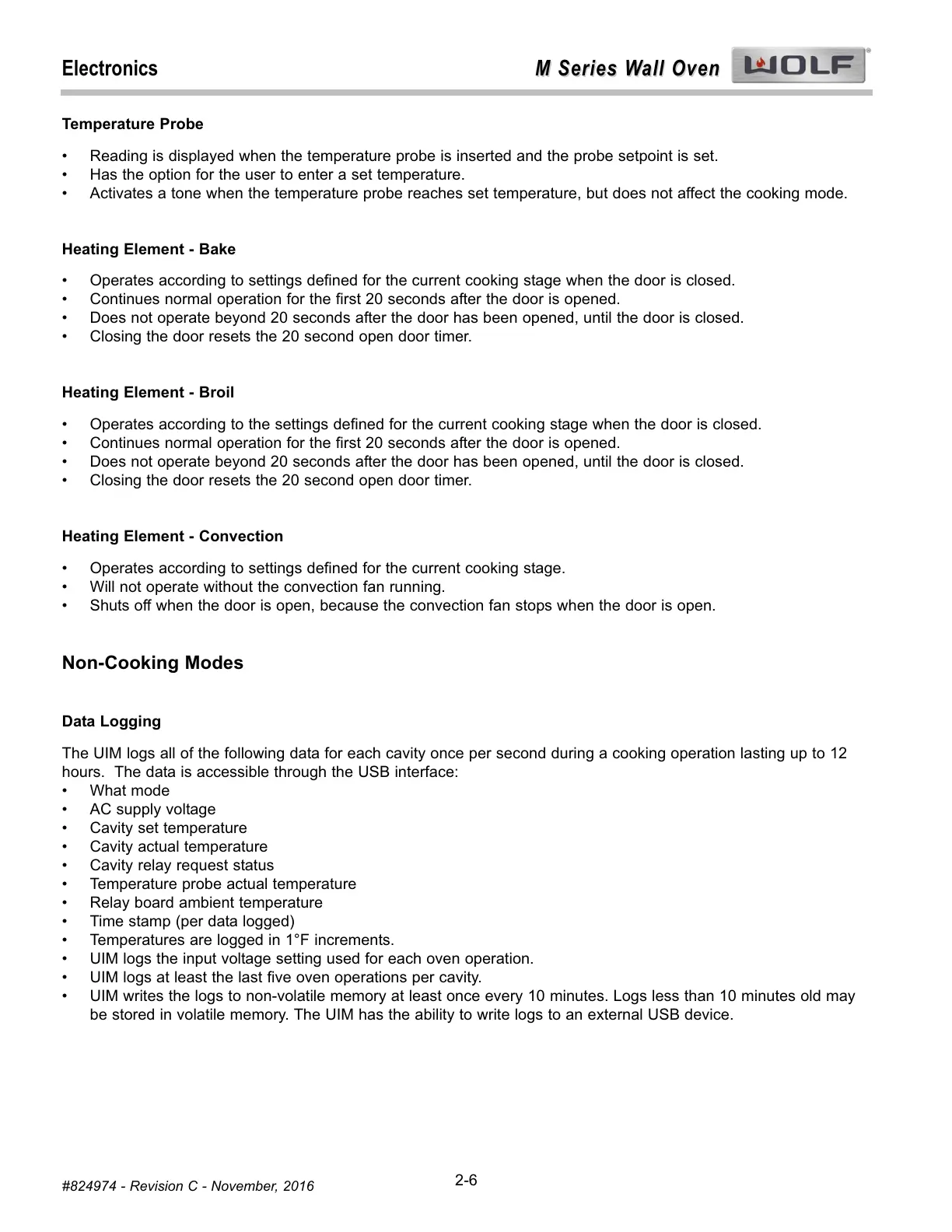

M Series Wall Oven
M Series Wall Oven
Electronics
2-6
#824974 - Revision C - November, 2016
Temperature Probe
Reading is displayed when the temperature probe is inserted and the probe setpoint is set. •
Has the option for the user to enter a set temperature. •
Activates a tone when the temperature probe reaches set temperature, but does not affect the cooking mode.•
Heating Element - Bake
Operates according to settings defined for the current cooking stage when the door is closed. •
Continues normal operation for the first 20 seconds after the door is opened. •
Does not operate beyond 20 seconds after the door has been opened, until the door is closed. •
Closing the door resets the 20 second open door timer.•
Heating Element - Broil
Operates according to the settings defined for the current cooking stage when the door is closed. •
Continues normal operation for the first 20 seconds after the door is opened. •
Does not operate beyond 20 seconds after the door has been opened, until the door is closed. •
Closing the door resets the 20 second open door timer.•
Heating Element - Convection
Operates according to settings defined for the current cooking stage. •
Will not operate without the convection fan running.•
Shuts off when the door is open, because the convection fan stops when the door is open.•
Non-Cooking Modes
Data Logging
The UIM logs all of the following data for each cavity once per second during a cooking operation lasting up to 12
hours. The data is accessible through the USB interface:
What mode•
AC supply voltage•
Cavity set temperature•
Cavity actual temperature•
Cavity relay request status•
Temperature probe actual temperature•
Relay board ambient temperature•
Time stamp (per data logged)•
Temperatures are logged in 1°F increments.•
UIM logs the input voltage setting used for each oven operation.•
UIM logs at least the last five oven operations per cavity.•
UIM writes the logs to non-volatile memory at least once every 10 minutes. Logs less than 10 minutes old may•
be stored in volatile memory. The UIM has the ability to write logs to an external USB device.
