M Series Wall Oven
M Series Wall Oven
Component Removal
3-22
#824974 - Revision C - November, 2016

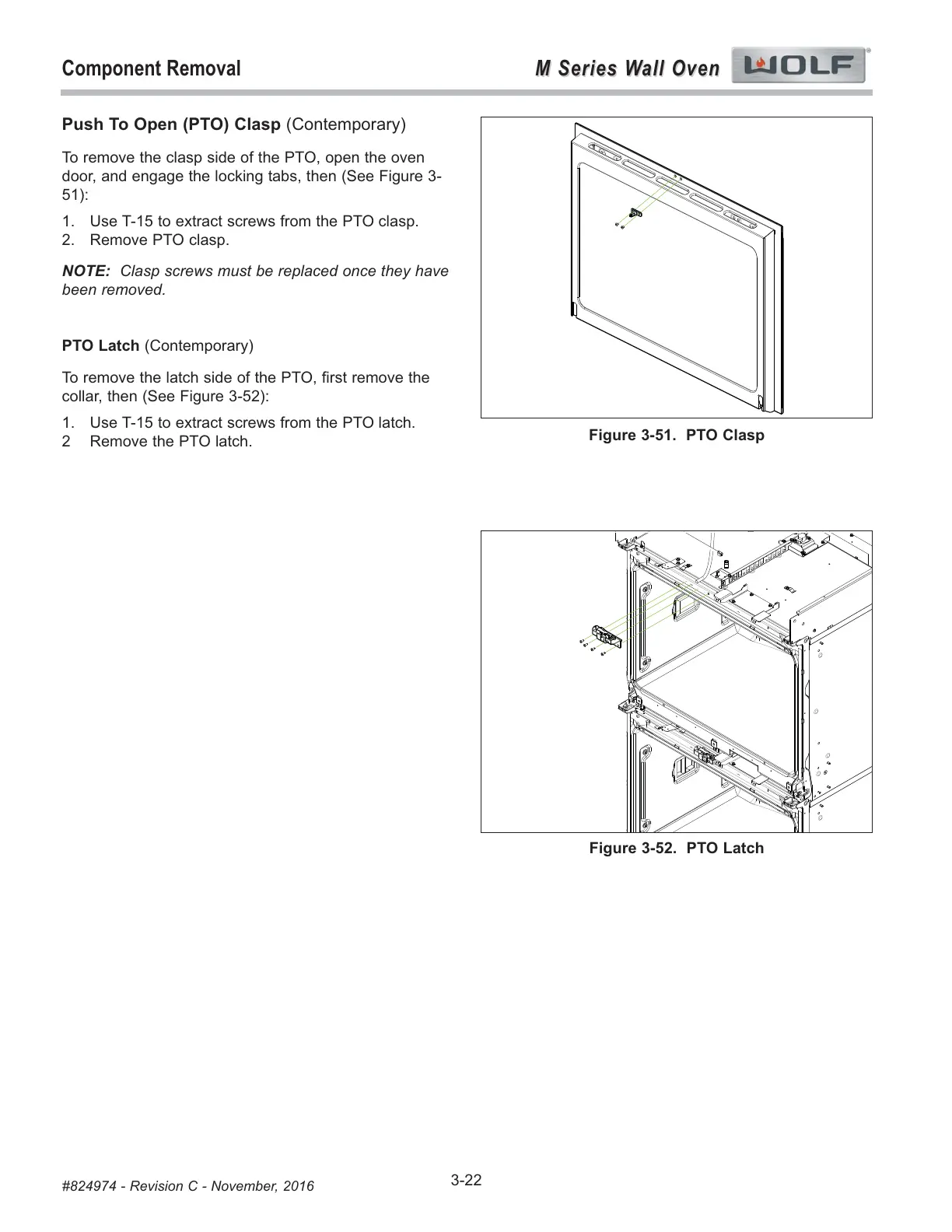

Push To Open (PTO) Clasp (Contemporary)
To remove the clasp side of the PTO, open the oven
door, and engage the locking tabs, then (See Figure 3-
51):
1. Use T-15 to extract screws from the PTO clasp.
2. Remove PTO clasp.
NOTE: Clasp screws must be replaced once they have
been removed.
PTO Latch (Contemporary)
To remove the latch side of the PTO, first remove the
collar, then (See Figure 3-52):
1. Use T-15 to extract screws from the PTO latch.
2 Remove the PTO latch.
Figure 3-51. PTO Clasp
Figure 3-52. PTO Latch
