Component Removal
M Series Wall Oven
M Series Wall Oven
3-21
#824974 - Revision C - November, 2016

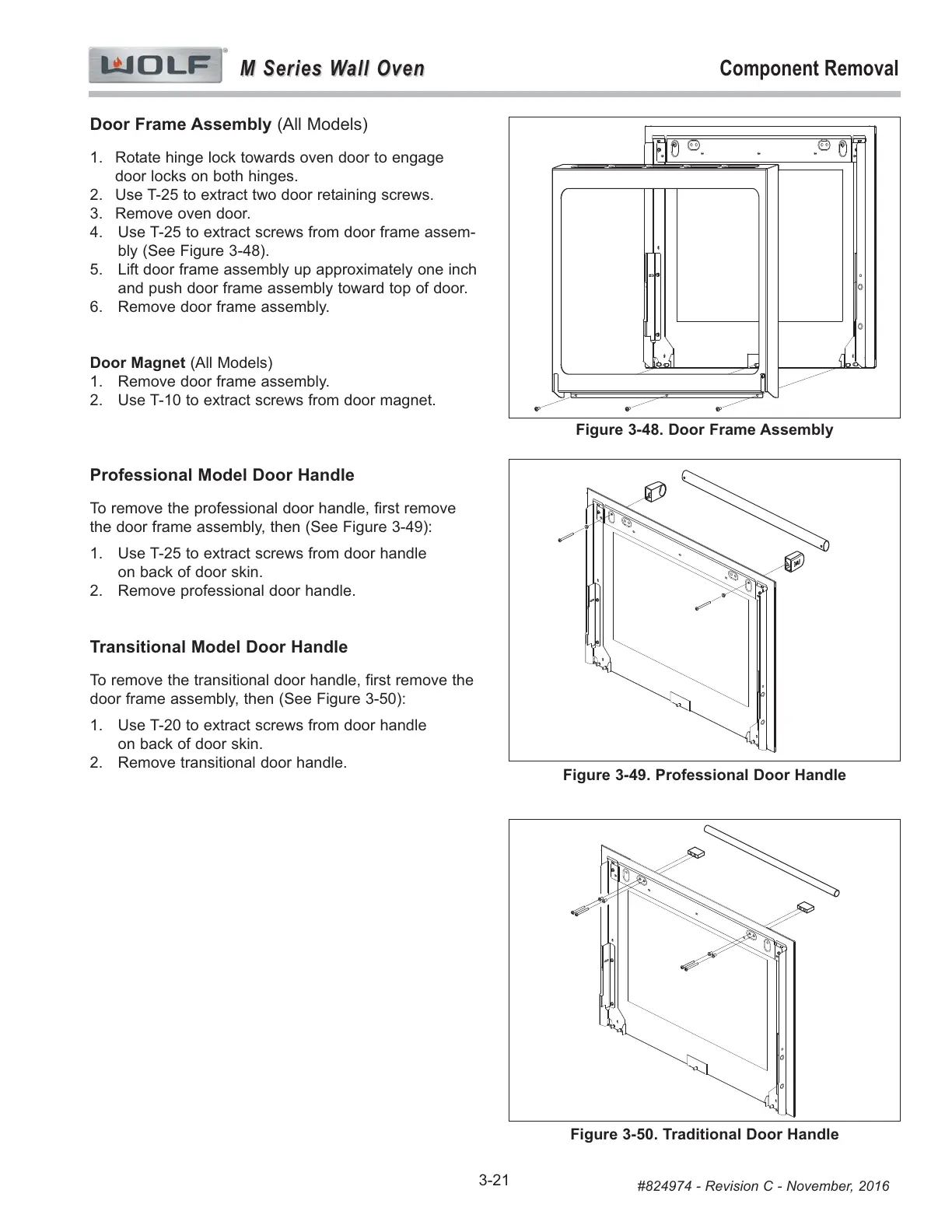

Door Frame Assembly (All Models)
1. Rotate hinge lock towards oven door to engage
door locks on both hinges.
2. Use T-25 to extract two door retaining screws.
3. Remove oven door.
4. Use T-25 to extract screws from door frame assem-
bly (See Figure 3-48).
5. Lift door frame assembly up approximately one inch
and push door frame assembly toward top of door.
6. Remove door frame assembly.
Door Magnet (All Models)
1. Remove door frame assembly.
2. Use T-10 to extract screws from door magnet.
Professional Model Door Handle
To remove the professional door handle, first remove
the door frame assembly, then (See Figure 3-49):
1. Use T-25 to extract screws from door handle
on back of door skin.
2. Remove professional door handle.
Transitional Model Door Handle
To remove the transitional door handle, first remove the
door frame assembly, then (See Figure 3-50):
1. Use T-20 to extract screws from door handle
on back of door skin.
2. Remove transitional door handle.
Figure 3-48. Door Frame Assembly
Figure 3-49. Professional Door Handle
Figure 3-50. Traditional Door Handle
