Sub-Zero Wolf M Series

Wire Diagrams/Schematics
M Series Wall Oven
M Series Wall Oven
6-2
#824974 - Revision C.1 - December, 2019
L2
L1
Bake
Element
Bake Relay
Rt Convection
Element
Rt Convection Relay
Bake DLB
Rt Convection DLB
Broil
Element
Lt Convection
Element
Broil Relay
Lt Convection Relay
Broil DLB
Lt Convection DLB

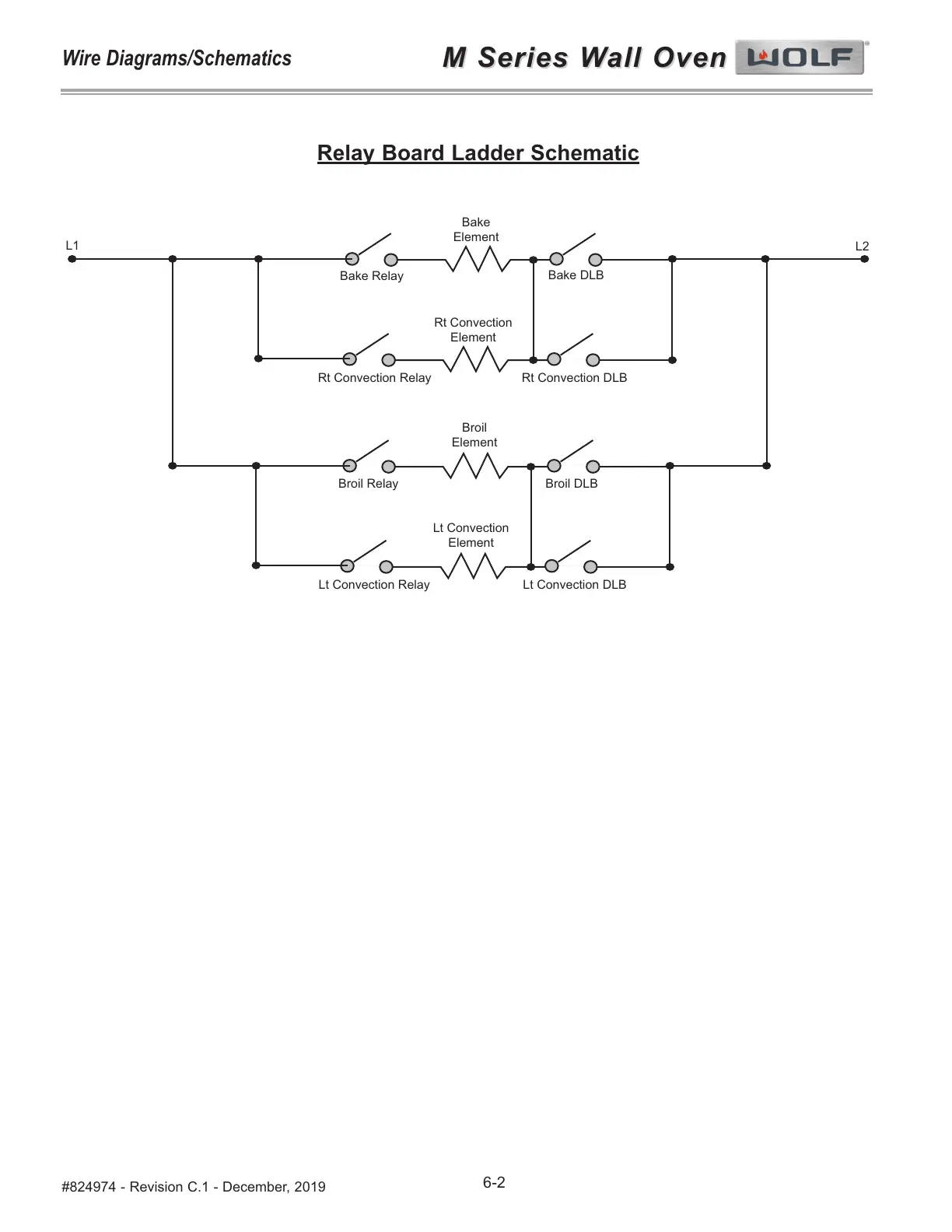

Relay Board Ladder Schematic
